FRONT BEVEL GEAR

KLF300-B3A 1990 AUSTRALIA

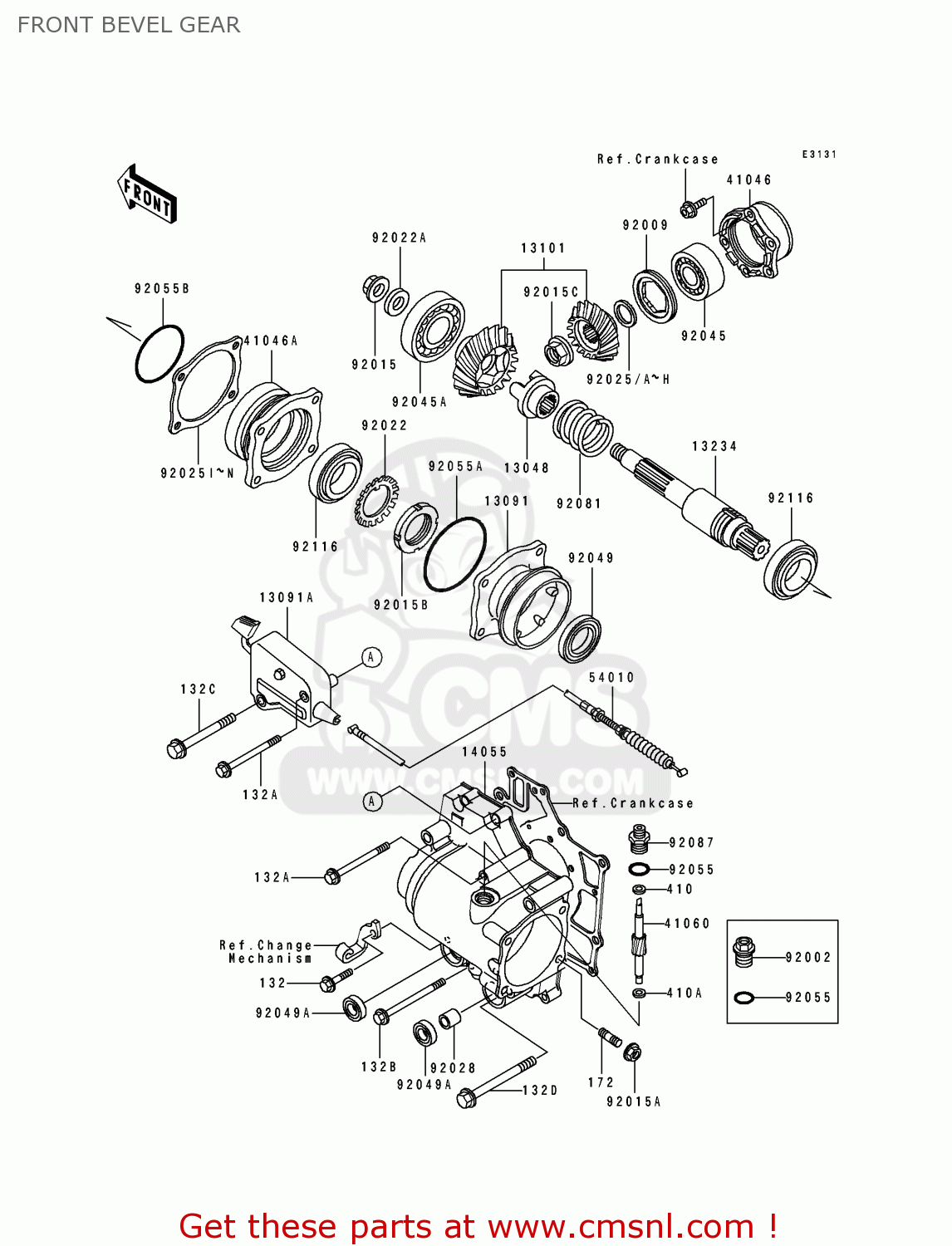

Front bevel gear technisch schema KLF300-B3A 1990 AUSTRALIA

FRONT BEVEL GEAR KLF300-B3A 1990 AUSTRALIA
FRONT BEVEL GEAR KLF300-B3A 1990 AUSTRALIA
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
13048
130481059
ref: 13048
CAM-DAMPER,FR
€ 38.50
13091
130911377
ref: 13091
HOLDER,GEAR CASE,FR
130911377
€ 38.50
13091A
130911410
ref: 13091A
HOLDER,DIFF LOCK
130911410
€ 101.00
13101
131015067
ref: 13101
GEAR-ASSY,FRONT BEVEL
€ 492.50
13234
132341085
ref: 13234
SHAFT-COMP,GEAR CASE,
€ 130.00
14055
140551071
ref: 14055
CASE-GEAR,FRONT BEVEL
€ 459.00
41046
410461064
ref: 41046
HOUSING-BEARING,GEAR
€ 89.50
41046A
410461066
ref: 41046A
HOUSING-BEARING,GEAR
€ 98.50
41060
410601113
ref: 41060
GEAR-METER SCREW
410601113
€ 24.50
54010
540101069
ref: 54010
CABLE
540101069
€ 18.00
92009
920091384
ref: 92009
SCREW,55MM
920091384
€ 19.00
92015
920151341
ref: 92015
NUT,FLANGED,14MM
920151341
€ 12.50
92015A
920151402
ref: 92015A
NUT,8MM
920151402
€ 2.50
92015B
920151515
ref: 92015B
NUT,RING 35MM
920151515
€ 13.00
92015C
920151581
ref: 92015C
NUT,16MM
920151581
€ 12.00
92022
920221687
ref: 92022
WASHER,LOCK
920221687
€ 3.00
92022A
920221688
ref: 92022A
WASHER,14.2X28X2.6
€ 3.00
92025
920251533
ref: 92025
SHIM,20.3X28X1.3
920251533
€ 4.00
92025A
920251534
ref: 92025A
SHIM,20.3X28X0.7
920251534
€ 3.00
92025B
920251535
ref: 92025B
SHIM,20.3X28X0.8
920251535
€ 4.00
92025C
920251536
ref: 92025C
SHIM,20.3X28X0.9
920251536
€ 6.00
92025D
920251537
ref: 92025D
SHIM,20.3X28X1.0
920251537
€ 4.00
92025E
920251538
ref: 92025E
SHIM,20.3X28X1.2
920251538
€ 3.50
92025F
920251573
ref: 92025F
SHIM,20.3X28X0.15
920251573
€ 3.00
92025G
920251574
ref: 92025G
SHIM,20.3X28X0.20
920251574
€ 3.00
92025H
920251575
ref: 92025H
SHIM,20.3X28X1.1
€ 3.00
92025I
920251697
ref: 92025I
SHIM,T=0.10
€ 2.50
92025J
920251698
ref: 92025J
SHIM,T=0.15
€ 2.50
92025K
920251699
ref: 92025K
SHIM,T=0.50
€ 2.50
92025L
920251700
ref: 92025L
SHIM,T=0.80
€ 3.00
92025M
920251701
ref: 92025M
SHIM,T=1.00
€ 3.00
92025N
920251702
ref: 92025N
SHIM,T=1.20
€ 3.00
92028
920281347
ref: 92028
BUSHING
920281347
€ 5.00
92045
920451144
ref: 92045
BEARING-BALL,5304
920451144
€ 65.50
92045A
920451155
ref: 92045A
BEARING-BALL,6206CM
920451155
€ 14.50
92049
92050057
ref: 92049
OIL SEAL,L.H CRNKCASE
92050057
€ 13.00
92049A
92050082
ref: 92049A
OIL SEAL,CHANGE SHAFT
92050082
€ 5.00
132
132J0630
ref: 132
BOLT-FLANGED-SMALL
132J0630
€ 2.50
132A
132J0675
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132J0685
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
132C
132J0875
ref: 132C
BOLT-FLANGED-SMALL
132J0875
€ 4.00
132D
132J0890
ref: 132D
BOLT-FLANGED-SMALL
132J0890
€ 4.50
172
172G0825
ref: 172
STUD,8X25
€ 3.00
410
410B0500
ref: 410
WASHER-PLAIN-SMALL,5M
410B0500
€ 0.50
410A
410B0600
ref: 410A
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
92055
920551141
ref: 92055
RING-O,ID=13.8
920551141
€ 2.00
92055A
920551213
ref: 92055A
RING-O,76.5X2.5
920551213
€ 5.00
92055B
920551316
ref: 92055B
RING-O
920551316
€ 3.00
92081
920811854
ref: 92081
SPRING,DAMPER
€ 10.50
92087
920871054
ref: 92087
BUSHING-METER GEAR
920871054
€ 18.50
92116
921161055
ref: 92116
BEARING-ROLLER
921161055
€ 33.00
