BRAKE PEDAL

KLF300-B3A 1990 AUSTRALIA

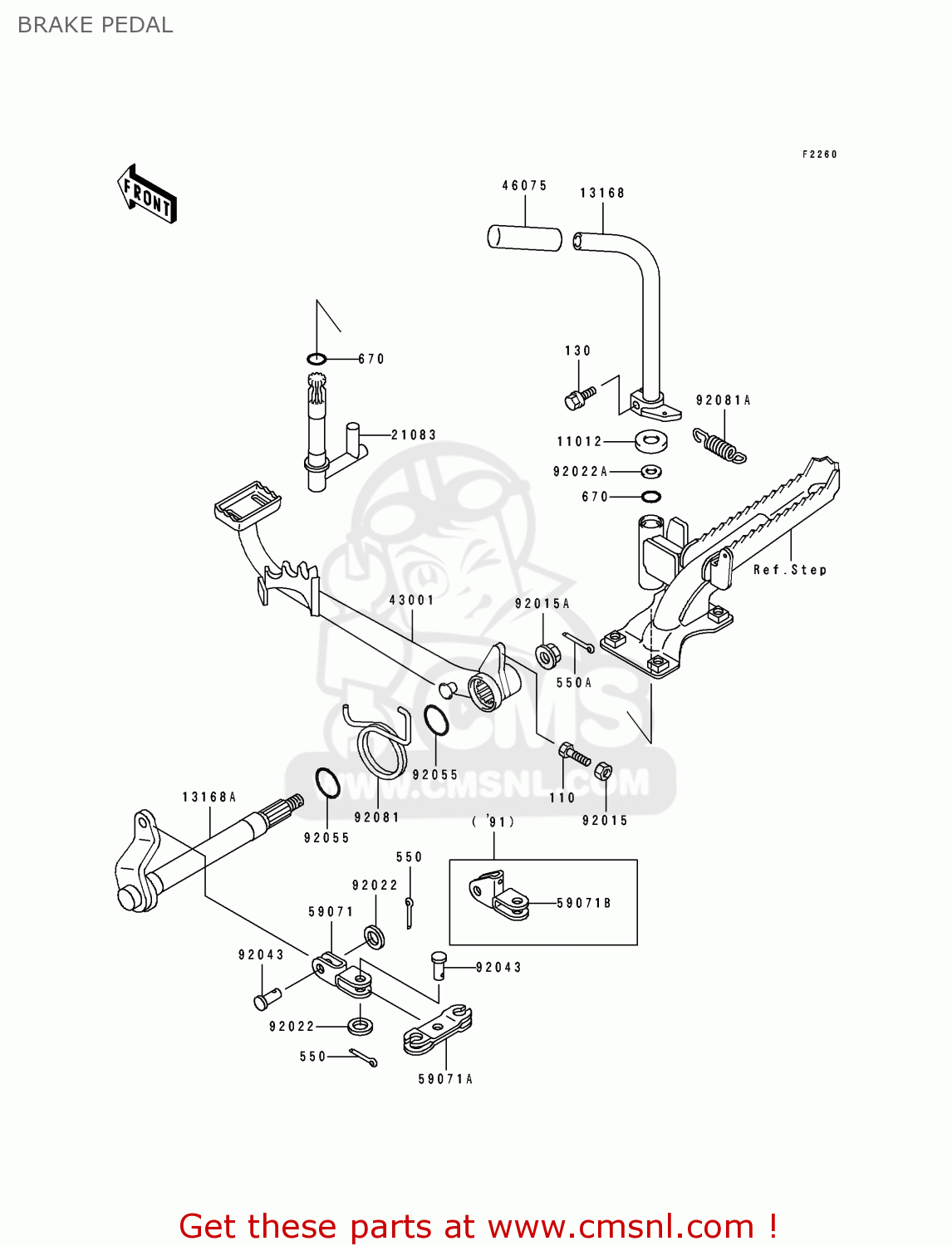

Brake pedal technisch schema KLF300-B3A 1990 AUSTRALIA

BRAKE PEDAL KLF300-B3A 1990 AUSTRALIA
BRAKE PEDAL KLF300-B3A 1990 AUSTRALIA
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
110
110D0622
ref: 110
BOLT
€ 2.00
130
130S0620
ref: 130
BOLT-FLANGED,6X20,BLA
130S0620
€ 2.00
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
550A
550D2518
ref: 550A
PIN,COTTER,2.5X18
€ 0.50
670
670B2012
ref: 670
O RING,12MM
670B2012
€ 1.00
11012
110121482
ref: 11012
CAP,STEP
110121482
€ 3.50
13168
131681282
ref: 13168
LEVER,PARKING BRAKE
131681282
€ 47.50
13168A
131681366
ref: 13168A
LEVER,REAR BRAKE
€ 68.50
21083
210831072
ref: 21083
ARM,PARKING BRAKE
€ 31.00
43001
430011236
ref: 43001
LEVER-BRAKE,PEDAL,RR
€ 39.50
46075
460751062
ref: 46075
GRIP,LEVER
460751062
€ 4.00
59071
590711105
ref: 59071
JOINT
€ 7.00
59071A
590711106
ref: 59071A
JOINT
€ 8.00
92015
920151410
ref: 92015
NUT,6MM
920151410
€ 2.50
92015A
920151415
ref: 92015A
NUT,10MM
920151415
€ 2.50
92022
920221582
ref: 92022
WASHER,8.5X16X1.2
€ 0.50
92022A
920221936
ref: 92022A
WASHER,12X20X3.2
€ 2.00
92043
920431013
ref: 92043
PIN
920431013
€ 6.00
92055
920551257
ref: 92055
RING-O,23.7X1.9
920551257
€ 7.50
92081
920811887
ref: 92081
SPRING,BRAKE PEDAL RE
920811887
€ 5.00
92081A
920811922
ref: 92081A
SPRING
920811922
€ 3.50
