De online onderdelen catalogus

HANDLEBAR

KLF185-A2 BAYOU185 1986 USA CANADA

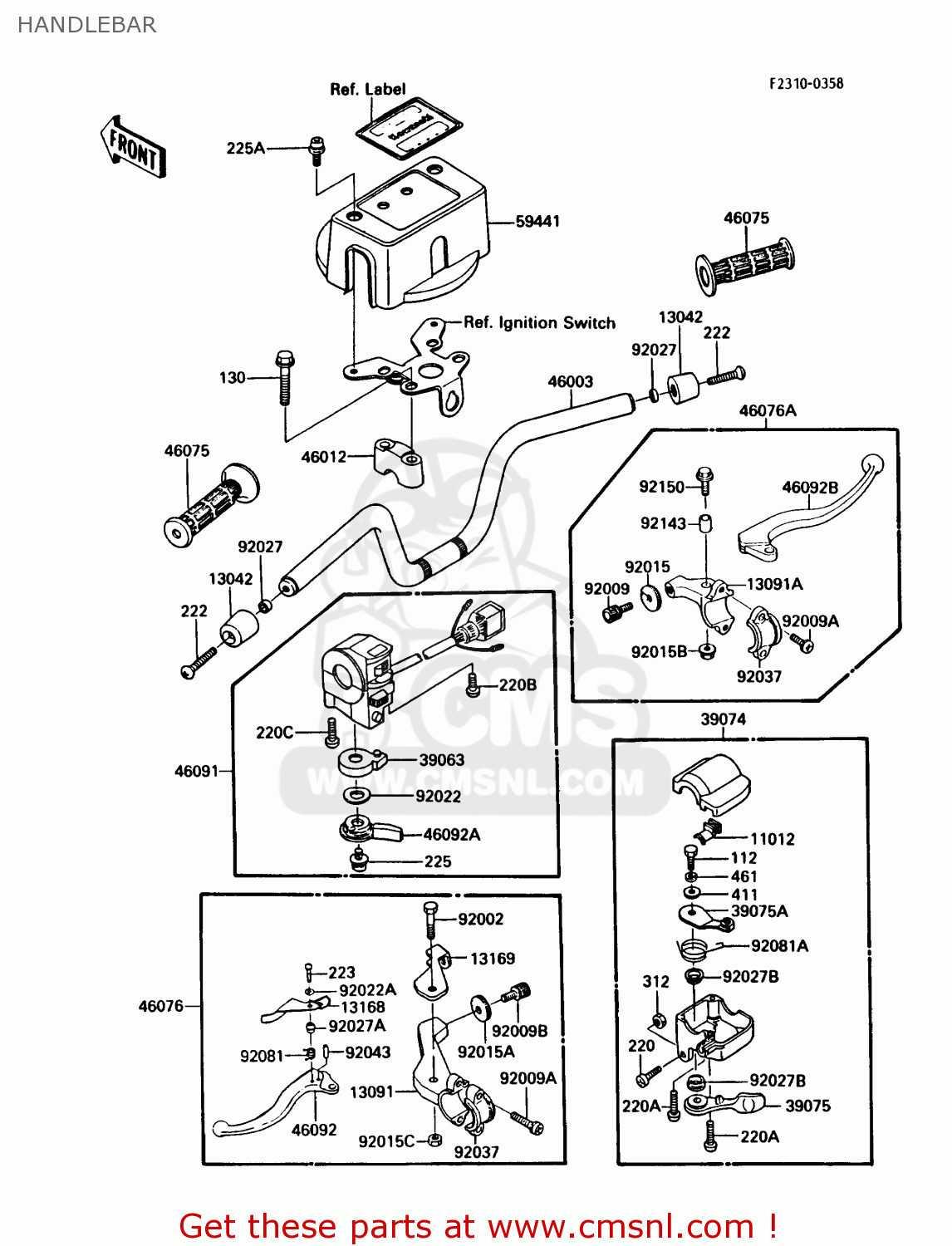

Handlebar technisch schema KLF185-A2 BAYOU185 1986 USA CANADA

HANDLEBAR KLF185-A2 BAYOU185 1986 USA CANADA
HANDLEBAR KLF185-A2 BAYOU185 1986 USA CANADA
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
112
112D0614
ref: 112
BOLT-UPSET
€ 2.50
11012
110121425
ref: 11012
CAP
110121425
€ 29.00
13042
130421060
ref: 13042
WEIGHT,HANDLE
€ 14.00
13091
130911349
ref: 13091
HOLDER
130911349
€ 19.00
13091A
130911541
ref: 13091A
HOLDER,BRAKE LEVER,RH
130911541
€ 15.00
13168
131681224
ref: 13168
LEVER,LOCK
131681224
€ 4.50
13169
131691398
ref: 13169
PLATE,CLUTCH LOCK
131691398
€ 3.00
39063
390631114
ref: 39063
HOUSING-CONTROL,START
390631114
€ 7.50
39074
390741052
ref: 39074
LEVER-ASSY-THROTTLE
€ 52.00
39075
390751053
ref: 39075
LEVER-THROTTLE
€ 18.50
39075A
390751054
ref: 39075A
LEVER-THROTTLE,ARM
390751054
€ 6.50
46003
460031218
ref: 46003
HANDLE
€ 41.00
46012
46012008
ref: 46012
HOLDER-HANDLE,UPP
46012008
€ 21.50
46075
460751056
ref: 46075
GRIP
460751056
€ 13.00
46076
460761124
ref: 46076
LEVER-ASSY-GRIP,LH
460761124
€ 52.50
46076A
460761157
ref: 46076A
LEVER-ASSY-GRIP,RH
460761157
€ 46.50
46091
460911390
ref: 46091
HOUSING-ASSY-CONTROL,
€ 75.50
46092
460921107
ref: 46092
LEVER-GRIP,LH
460921107
€ 7.50
46092A
460921116
ref: 46092A
LEVER-GRIP,STARTER
460921116
€ 6.50
46092B
460921133
ref: 46092B
LEVER-GRIP,FRONT BRAK
460921133
€ 8.00
59441
594411057
ref: 59441
COVER-HANDLE
594411057
€ 14.00
92002
920021447
ref: 92002
BOLT,5MM
920021447
€ 4.00
92009
46055003
ref: 92009
SCREW-CABLE ADJUST
46055003
€ 10.50
92009A
920091367
ref: 92009A
SCREW,5X18
920091367
€ 2.50
92009B
920091435
ref: 92009B
SCREW-CABLE ADJUST
920091435
€ 10.50
92015
46056005
ref: 92015
NUT-LOCK
46056005
€ 5.50
92015A
920151596
ref: 92015A
NUT-LOCK
920151596
€ 5.50
92015B
920151719
ref: 92015B
NUT,LOCK,5MM
€ 2.50
92015C
92019014
ref: 92015C
NUT-LOCK,5M/M
92019014
€ 2.50
92022
920221635
ref: 92022
WASHER,WAVE
920221635
€ 2.00
92022A
920221647
ref: 92022A
WASHER,4MM
920221647
€ 2.50
92027
920271066
ref: 92027
COLLAR,6.3X10X4.8
920271066
€ 2.50
92027A
920271336
ref: 92027A
COLLAR,RETURN SPRING
920271336
€ 7.50
92027B
920271982
ref: 92027B
COLLAR
920271982
€ 1.50
92037
920371621
ref: 92037
CLAMP,LEVER HOLDER
920371621
€ 17.50
92043
920431268
ref: 92043
PIN,SPRING,3X16
920431268
€ 6.50
92081
920811358
ref: 92081
SPRING,CLUTCH LOCK RE
920811358
€ 3.00
92081A
920811685
ref: 92081A
SPRING
920811685
€ 52.00
92143
921431216
ref: 92143
COLLAR
€ 1.50
92150
921501102
ref: 92150
BOLT
€ 3.00
130
130C0860
ref: 130
BOLT-FLANGED
€ 2.50
220
220C0525
ref: 220
SCREW-PAN-CROS
220C0525
€ 2.00
220A
220C0530
ref: 220A
SCREW-PAN-CROS
€ 0.50
220B
220C0535
ref: 220B
SCREW-PAN-CROS
220C0535
€ 1.50
220C
220C0545
ref: 220C
SCREW-PAN-CROS
220C0545
€ 1.50
222
222C0640
ref: 222
SCREW-CSK-RD-CROS
€ 1.00
223
223D0420
ref: 223
SCREW-PAN-WS-CROS
223D0420
€ 2.50
225
225C0512
ref: 225
SCREW-PAN-WSP-CROS
225C0512
€ 2.50
225A
225C0620
ref: 225A
SCREW-PAN-WSP-CROS,6X
225C0620
€ 2.00
312
312C0500
ref: 312
NUT-HEX
€ 0.50
411
411E0600
ref: 411
W-PLAIN-S
411E0600
€ 0.50
461
461L0600
ref: 461
WASHER-SPRING
€ 0.50
