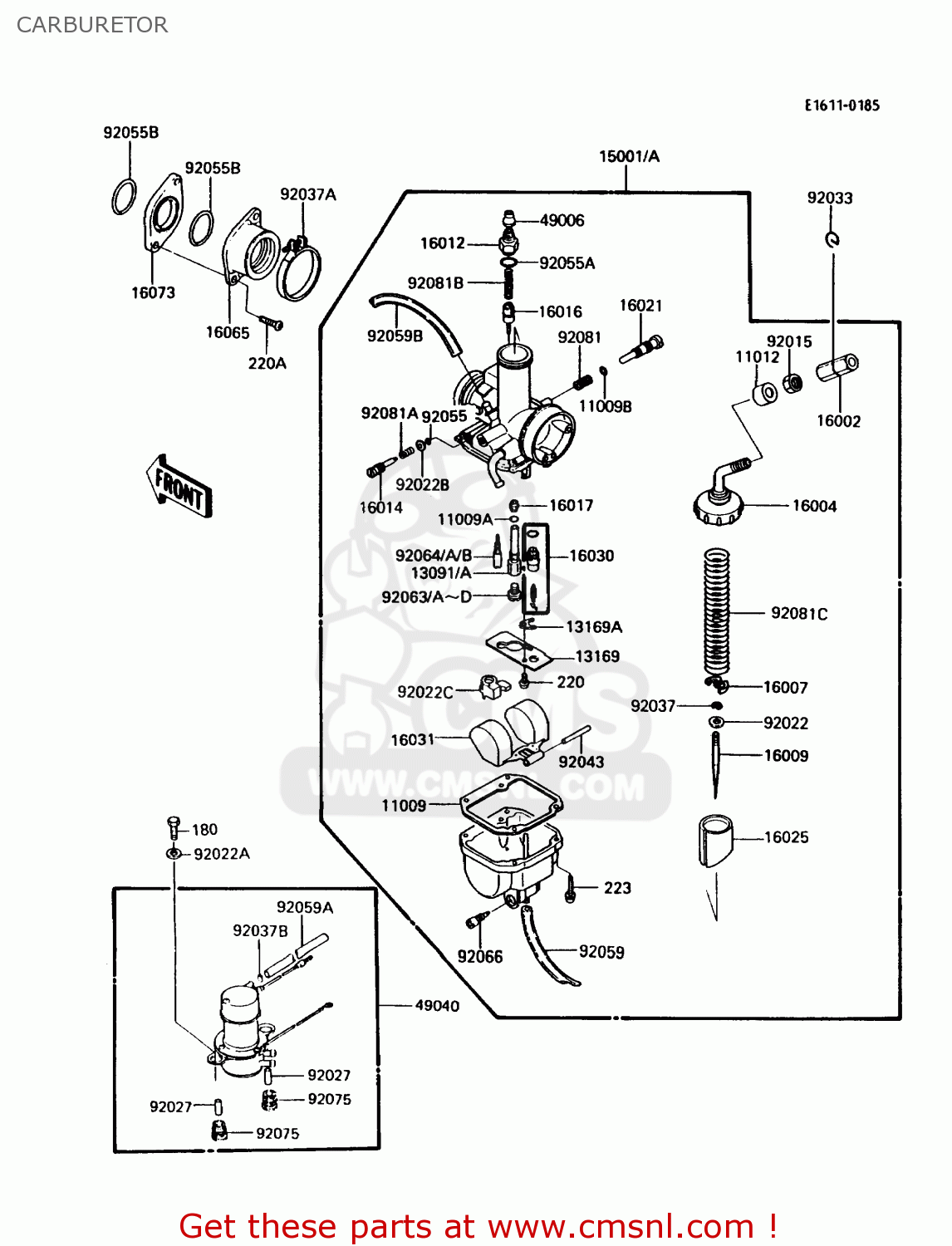

CARBURETOR

ref

onderdeelnr

omschrijving

hoeveelheid

11009

110091409
ref: 11009

GASKET,FLOAT CHAMBER (NAS)

€ 3.50

11009A

16038016
ref: 11009A

GASKET,O-RING

€ 2.50

11009B

16038022
ref: 11009B

GASKET,O-RING

€ 4.00

11012

110121389
ref: 11012

CAP,CHAMBER CAP

€ 4.50

13091

130911348
ref: 13091

HOLDER

€ 11.50

13169

131691808
ref: 13169

PLATE,FLOAT CHAMBER

€ 8.00

13169A

131691809
ref: 13169A

PLATE,LOCK

€ 4.00

15001

150011219
ref: 15001

CARBURETOR-ASSY

€ 261.50

16002

160021006
ref: 16002

ADJUSTER-CABLE

€ 6.00

16004

160041052
ref: 16004

CAP-CHAMBER

€ 26.00

16007

160071111
ref: 16007

SEAT-SPRING,THROTTLE

€ 2.50

16009

160091247
ref: 16009

NEEDLE-JET,5J14

€ 14.50

16012

160121054
ref: 16012

CAP-STARTER PLUNGER

€ 10.00

16014

160141052
ref: 16014

SCREW-PILOT AIR

€ 8.00

16016

160161056
ref: 16016

PLUNGER,STARTER

€ 17.50

16017

160171244
ref: 16017

JET-NEEDLE,O-2

€ 20.00

16021

160211117
ref: 16021

SCREW-THROTTLE STOP

€ 7.00

16025

160251155
ref: 16025

VALVE-THROTTLE,CA 3.5

€ 47.00

16030

160301055
ref: 16030

VALVE-FLOAT,#1.0

€ 23.50

16031

160311055
ref: 16031

FLOAT

€ 31.00

16065

160651109
ref: 16065

HOLDER-CARBURETOR

€ 14.50

16073

160731053
ref: 16073

INSULATOR

€ 4.50

49006

490061164
ref: 49006

BOOT,STARTER PLUNGER

€ 9.00

49040

490401053
ref: 49040

PUMP-FUEL

€ 267.50

92015

920151575
ref: 92015

NUT,CABLE ADJUST LOCK

€ 3.50

92022

920221024
ref: 92022

WASHER,THROTTLE VALVE

€ 4.00

92022A

92022116
ref: 92022A

WASHER-PLAIN

€ 2.50

92022B

920221187
ref: 92022B

WASHER,ADJUST SCREW

€ 4.00

92022C

920221530
ref: 92022C

WASHER,NEEDLE JET

€ 3.50

92027

920271581
ref: 92027

COLLAR,6X22

€ 1.50

92033

92036018
ref: 92033

CIRCLIP

€ 2.50

92037

16008010
ref: 92037

CLAMP,E-TYPE

€ 5.00

92037A

920371326
ref: 92037A

CLAMP

€ 5.50

92037B

920371395
ref: 92037B

CLAMP,FUEL HOSE

€ 1.50

92043

16032003
ref: 92043

FLOAT PIN

€ 4.00

92055

920551078
ref: 92055

O RING,PILOT SCREW

€ 3.50

92055A

920551242
ref: 92055A

RING-O,STARTER PLUNGE

€ 3.00

92055B

920551256
ref: 92055B

RING-O,32MM

€ 8.50

180

180G0635
ref: 180

BOLT-UPSET-WS

€ 0.50

220

220B0306
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220C0620
ref: 220A

SCREW-PAN-CROS,6X20,B

€ 1.00

223

223B0416
ref: 223

SCREW-PAN-WS-CROS

€ 0.50

92059

920591490
ref: 92059

TUBE,3X5X400

€ 5.00

92059A

920591586
ref: 92059A

TUBE,4.5X8.5X880

€ 4.00

92059B

920591594
ref: 92059B

TUBE,5X8X430

€ 7.00

92063

92063072
ref: 92063

MAIN JET,#105R

€ 9.50

92063A

92063073
ref: 92063A

JET-MAIN,#107.5R

€ 9.00

92063B

92063074
ref: 92063B

MAIN JET,#110R

€ 10.00

92063C

92063075
ref: 92063C

MAIN JET,#112.5R

€ 9.00

92063D

92063076
ref: 92063D

MAIN JET,#115R

€ 5.50

92064

920641114
ref: 92064

JET-PILOT,#22.5

€ 7.00

92064A

920641121
ref: 92064A

JET-PILOT,#20

€ 7.50

92066

920661171
ref: 92066

PLUG,DRAIN

€ 10.00

92075

920751481
ref: 92075

DAMPER,FUEL PUMP

€ 3.00

92081

920811153
ref: 92081

SPRING,AIR SCREW

€ 3.00

92081A

920811690
ref: 92081A

SPRING,PILOT AIR SCRE

€ 2.50

92081B

920811705
ref: 92081B

SPRING,STARTER PLUNGE

€ 2.50

92081C

920811860
ref: 92081C

SPRING,THROTTLE VALVE

€ 9.00
