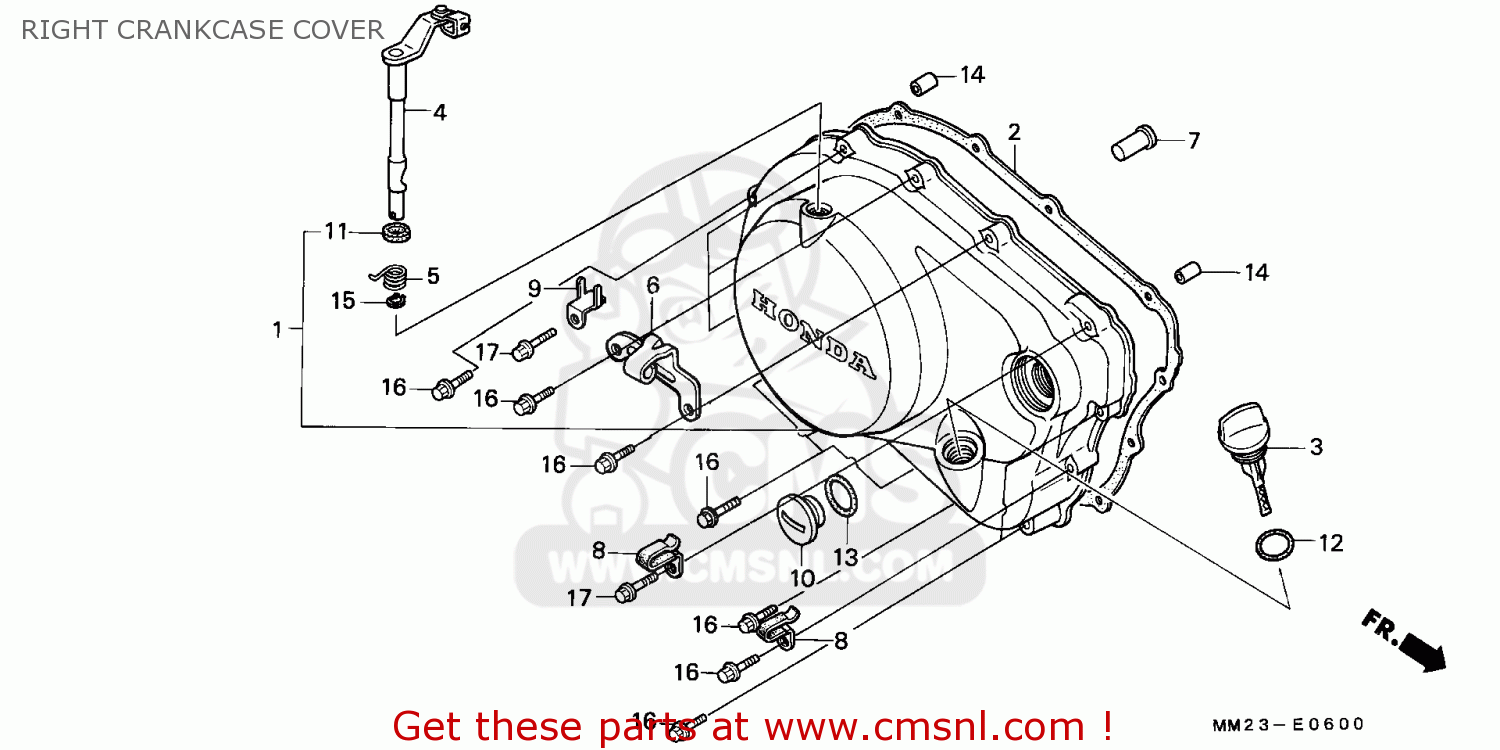

RIGHT CRANKCASE COVER

CMX450C REBEL 1987 (H) ITALY / KPH

Right crankcase cover technisch schema CMX450C REBEL 1987 (H) ITALY / KPH

prijzen zijn in EUR

ref

onderdeelnr

omschrijving

hoeveelheid

11330MM2670
ref: 1

COVER COMP.,R CRA

€ 247.00

11393ML4610
ref: 2

GSKT.R COVER (MCA)

€ 14.00

15650ML4610
ref: 3

GAUGE,OIL LEVEL

€ 9.00

22810MM2670
ref: 4

LEVER COMP.,CLUTC

€ 17.50

22815413000
ref: 5

SPRING,CLCH.LEVER

€ 4.00

22821MM2770
ref: 6

RECEIVER,CLUTCU C

€ 11.00

22847ME0000
ref: 7

ROD,CLUTCH LIFTER

€ 8.00

32907KM9000
ref: 8

CLAMP

€ 3.00

32964GK8000
ref: 9

CLAMP CORD

€ 1.00

90008371000
ref: 10

BOLT, SPECIAL

€ 12.00

91204KK0003
ref: 11

OIL SEAL 12X18X5

€ 6.50

91301250000
ref: 12

O RING,21.5M/M

€ 4.00

91307703000
ref: 13

O RING,26MM

€ 4.50

9451010000
ref: 15

CIRCLIP, 10M/M

€ 1.00

960000602800
ref: 16

BOLT,FLANGE,6X28

€ 2.00

960000603500
ref: 17

BOLT,FLANGE,6X35

€ 1.50

RIGHT CRANKCASE COVER

alle samenstellingen
