REAR FENDER

CMX450C REBEL 1987 (H) ITALY / KPH

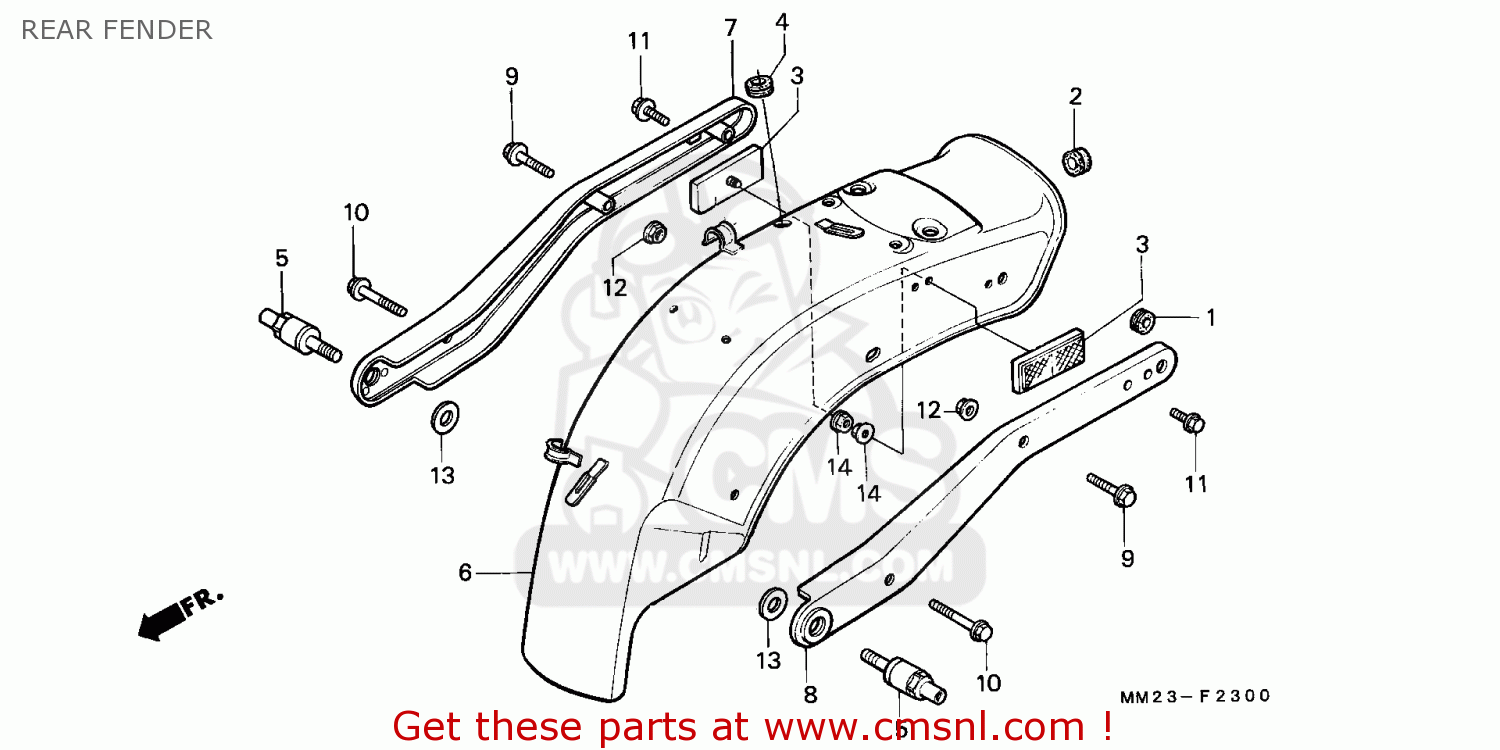

Rear fender technisch schema CMX450C REBEL 1987 (H) ITALY / KPH

REAR FENDER CMX450C REBEL 1987 (H) ITALY / KPH
REAR FENDER CMX450C REBEL 1987 (H) ITALY / KPH
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1
17622GB7900
ref: 1
RUBBER,CUSHION
17622GB7900
€ 3.50
2
22917567000
ref: 2
GROMMET,AC WIRE
€ 3.50
4
36038657000
ref: 4
GROMMET B,TUBE
36038657000
€ 3.50
5
52452MM2000
ref: 5
BOLT,L RR CUSHION
52452MM2000
€ 36.00
6
80100MM2000ZC
ref: 6
FENDER COMP*NH-1*
€ 241.50
6
80100MM2000ZD
ref: 6
FENDER *R-101C-U*
€ 241.50
7
84100MM2770
ref: 7
PLATE, R. TAIL
€ 88.00
8
84200MM2770
ref: 8
PLATE, L. TAIL
€ 88.00
9
90122KR3000
ref: 9
BOLT,SPECIAL FLAN
90122KR3000
€ 3.50
10
90122MM2000
ref: 10
BOLT,SPECIAL FLAN
90122MM2000
€ 3.50
11
90125KR3000
ref: 11
BOLT,SPECIAL FLAN
90125KR3000
€ 3.50
12
90307MM2000
ref: 12
NUT,SPECIAL,8MM
90307MM2000
€ 1.00
13
90501MM2000
ref: 13
WASHER,34X15.5MM
€ 5.00
