GENERATOR (CBR1000FH/FJ/FM)

CBR1000F HURRICANE1000 1987 (H) FRANCE / YB

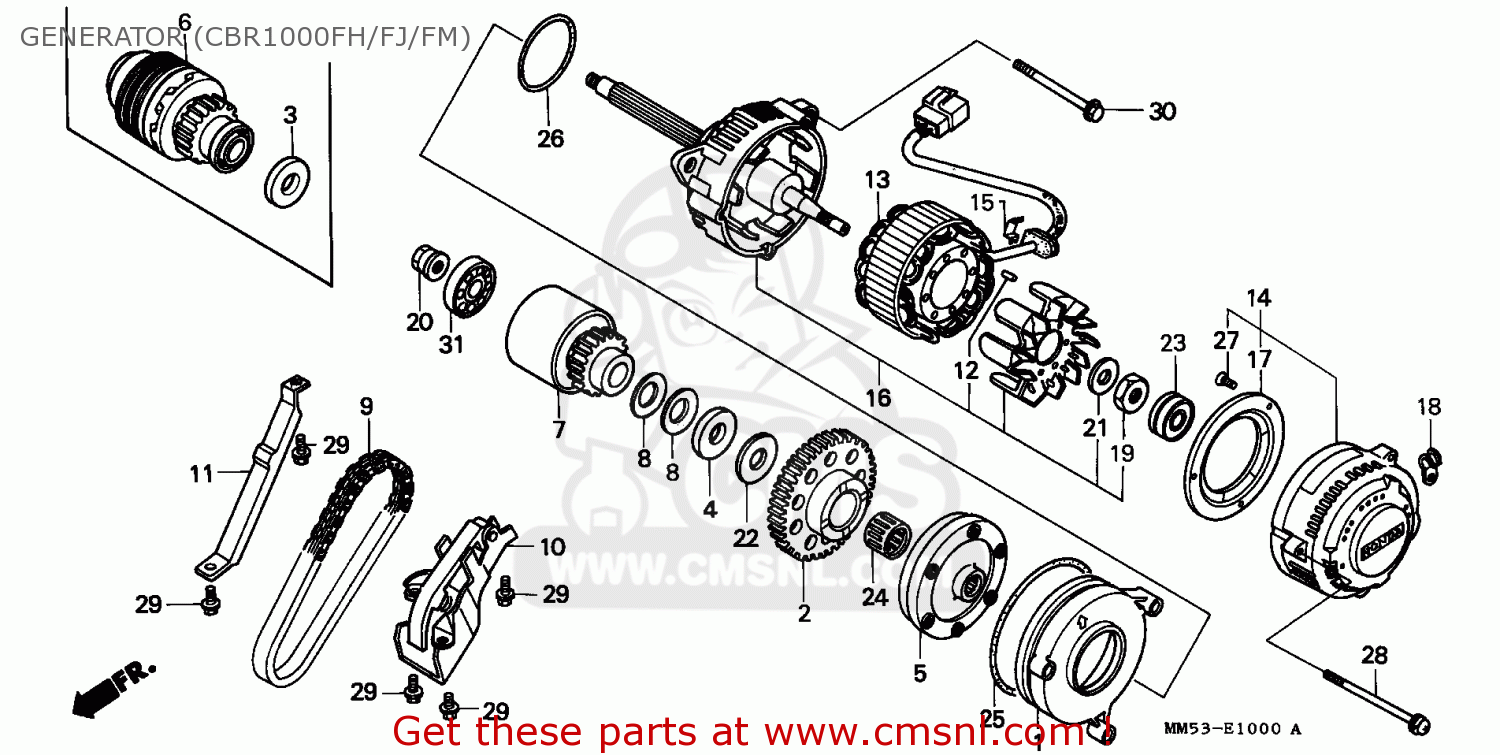

Generator (cbr1000fh/fj/fm) technisch schema CBR1000F HURRICANE1000 1987 (H) FRANCE / YB

GENERATOR (CBR1000FH/FJ/FM) CBR1000F HURRICANE1000 1987 (H) FRANCE / YB
GENERATOR (CBR1000FH/FJ/FM) CBR1000F HURRICANE1000 1987 (H) FRANCE / YB
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1
11102MM5000
ref: 1
BASE,ACG
11102MM5000
€ 79.50
2
28110MM5000
ref: 2
GEAR COMP.,STARTI
€ 135.50
3
28115MM5000
ref: 3
COLLAR,GENERETOR
€ 19.50
5
28120MM5003
ref: 5
OUTER COMP.,START
€ 229.50
6
28130MM5000
ref: 6
SC21E2015530
DAMPER ASSY.,GENE
€ 186.50
6
28130MM5010
ref: 6
SC21E2015531
ACG DAMPER ASSY
28130MM5010
€ 186.50
9
28161MM5003
ref: 9
CHAIN,A.C.GENERAT
€ 97.00
10
28170MM5000
ref: 10
SC21E2009497
TENSIONER ASSY,AC
€ 131.00
10
28170MM5010
ref: 10
SC21E2009498
TENSIONER ASSY,AC
€ 131.00
11
28191MM5000
ref: 11
GUIDE,ACG CHAIN
28191MM5000
€ 39.50
12
31118MM5005
ref: 12
PIN,GEN.A.C
31118MM5005
€ 2.50
13
31120MM5005
ref: 13
STATOR.COMP
31120MM5005
€ 200.00
14
31130MM5005
ref: 14
COVER.A,A,C GEN
31130MM5005
€ 134.00
15
31131MM5005
ref: 15
CLIP,GROMMET
31131MM5005
€ 6.00
16
31133MM5005
ref: 16
SC21E2016850
CASE.GEN.A.C,
€ 698.50
16
31133MM5015
ref: 16
SC21E2016851
CASE,A.C.GENERATO
€ 698.50
17
31134MM5005
ref: 17
COVER,FAN
€ 19.00
18
32922MM5005
ref: 18
CLAMP.CORD
€ 2.00
19
90201MM5005
ref: 19
NUT,LOCK ROTOR
90201MM5005
€ 2.00
20
90234MM5000
ref: 20
SC21E2009787
NUT,FLANGE,12MM
90234MM5000
€ 2.00
20
90234MM4000
ref: 20
SC21E2009788
NUT,FLANGE,12MM
€ 2.00
21
90401MM5005
ref: 21
WASHER,25X15.2X1
90401MM5005
€ 3.00
22
90404KK0000
ref: 22
WASHER,20X37X2
90404KK0000
€ 2.50
23
91002MM5005
ref: 23
B/BRG RAD N/COM
91002MM5005
€ 17.50
24
91108634961
ref: 24
NEEDLE BRG
91108634961
€ 25.50
25
91303PC9003
ref: 25
O RING, 104X2.2
€ 6.50
25
91303PC9004
ref: 25
O RING, 104X2.2
91303PC9004
€ 6.50
26
91306MJ0003
ref: 26
O-RING 56X2.5
€ 3.50
26
91306MJ0005
ref: 26
SC21E2017533
O-RING
91306MJ0005
€ 3.50
27
938930400800
ref: 27
SCREW-WASHER,4X8
938930400800
€ 1.50
28
938930507700
ref: 28
SCREW-WASHER,5X77
938930507700
€ 2.00
29
957010601408
ref: 29
BOLT,FLANGE,6X14
957010601408
€ 1.00
30
957010804500
ref: 30
BOLT,FLANGE,8X45
957010804500
€ 2.00
31
961206203000
ref: 31
SC21E2017124
B/BRG RAD N/COM
961206203000
€ 19.50
31
91005MM4003
ref: 31
SC21E2017125
BEARING,RADIAL BA
91005MM4003
€ 24.50
