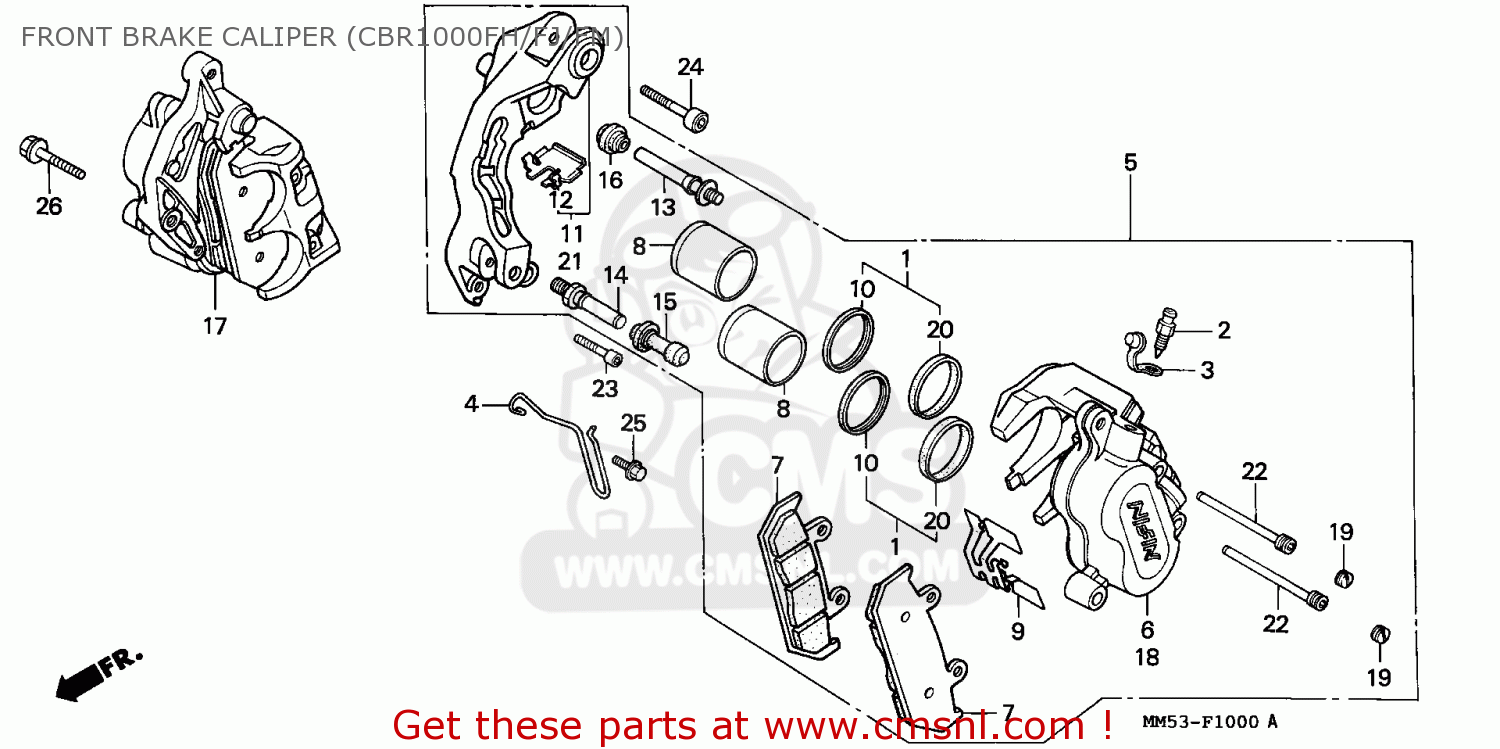

FRONT BRAKE CALIPER (CBR1000FH/FJ/FM)

ref

onderdeelnr

omschrijving

hoeveelheid

2

43352568003
ref: 2

SCREW, BLEEDER

€ 9.00

3

43353461771
ref: 3

CAP,BLEEDER

€ 5.00

4

44832ME2000
ref: 4

CLAMP,SPEDMT.CABL

€ 5.00

5

45100MM5007
ref: 5

CALIPER ASSY.,L.F

€ 381.50

5

45100MM5008
ref: 5

CALIPER ASSY.,L.F

€ 381.50

6

45101MM5006
ref: 6

CALIPER COMP.,L.(

€ 179.50

7

45105MM5007
ref: 7

PAD COMP.A (NISSI (MCA)

€ 32.50

7

45105MM5008
ref: 7

PAD COMP.A (NISSI (MCA)

€ 33.00

8

45107ML7691
ref: 8

PISTON COMP.

€ 64.50

9

45108ML4006
ref: 9

SPRING,PAD

€ 6.50

10

45109166006
ref: 10

DUST SEAL

€ 4.50

11

45110MM5006
ref: 11

BRACKET COMP.,L.

€ 109.00

12

45112MG3006
ref: 12

RETAINER

€ 5.50

13

45131HA5671
ref: 13

BOLT A,PIN

€ 13.00

14

45131166016
ref: 14

PIN,BOLT

€ 4.00

15

45132166016
ref: 15

BUSH,PIN

€ 3.50

16

45133MA3006
ref: 16

BOOT B

€ 5.00

17

45200MM5007
ref: 17

CALIPER ASSY.,R.F

€ 381.50

17

45200MM5008
ref: 17

CALIPER ASSY.,R.F

€ 381.50

18

45201MM5006
ref: 18

CALIPER COMP.,R.

€ 179.50

19

45203MG3006
ref: 19

PLUG,PIN

€ 4.50

20

45209166006
ref: 20

SEAL,PISTON

€ 5.00

21

45210ML7691
ref: 21

BRACKET COMP.,R.

€ 102.50

22

45215KA3731
ref: 22

PIN HANGER

€ 10.00

23

90105MJ1000
ref: 23

BOLT SOCKET 6X24

€ 5.50

24

90131ML7000
ref: 24

BOLT,SOCKET,8X36

€ 4.50

25

957000601007
ref: 25

BOLT,FLANGE,6X10

€ 1.50

26

964000803207
ref: 26

BOLT,FLANGE,DR.8X

€ 2.00

alle samenstellingen
