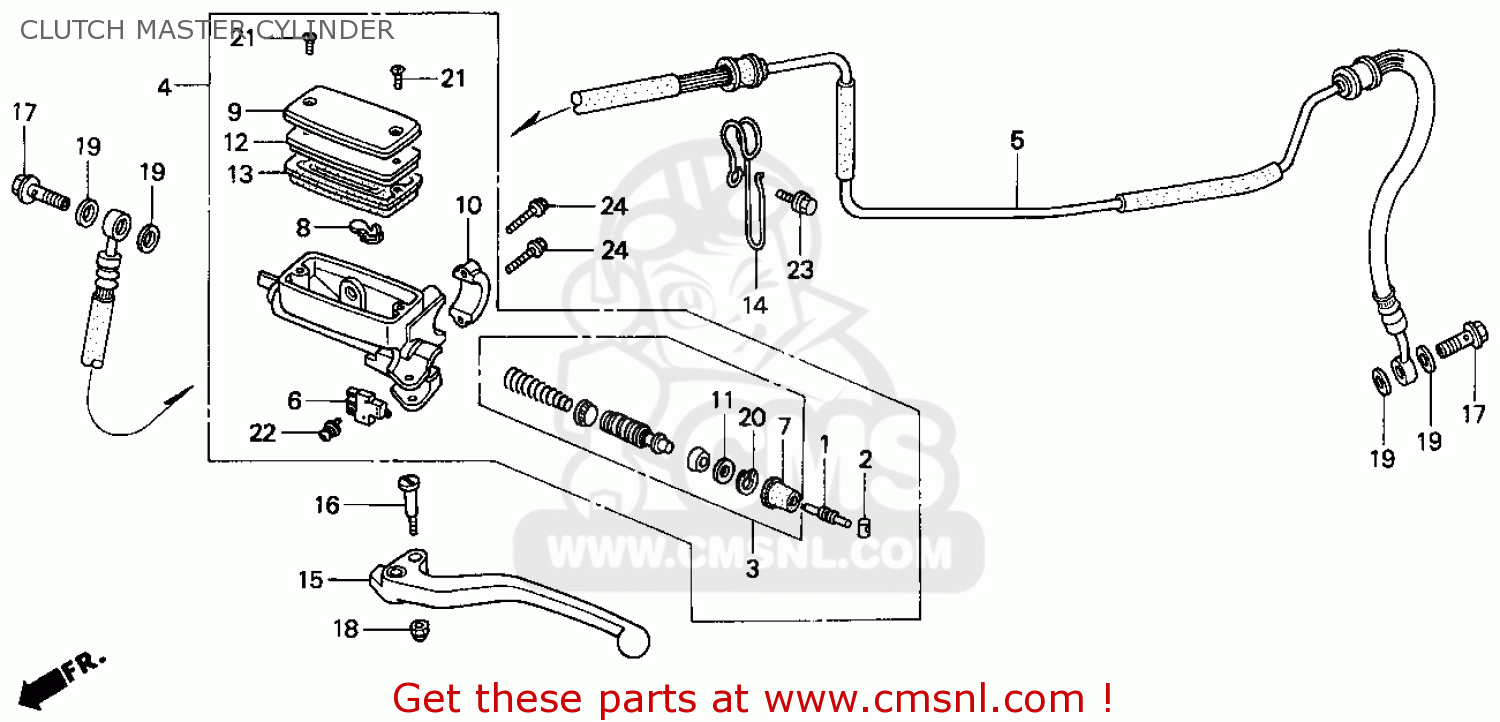

CLUTCH MASTER CYLINDER

ref

onderdeelnr

omschrijving

hoeveelheid

1

22884MB0006
ref: 1

ROD,PUSH

€ 20.00

2

22885MB0006
ref: 2

BUSH

€ 8.00

3

22886MB0305
ref: 3

PISTON SET,CLUTCH

€ 71.00

4

22890MZ2305
ref: 4

M/C SUB ASSY,CLUT

€ 444.50

5

22900MZ2000
ref: 5

PIPE COMP.,CLUTCH

€ 156.00

6

35330MB0003
ref: 6

SW.ASSY.,CLUTCH

€ 23.00

7

45504410003
ref: 7

BOOT COMP.

€ 9.50

8

45512MA6006
ref: 8

PROTECTOR

€ 3.50

9

45513MM5006
ref: 9

CAP

€ 26.50

9

45513MM5016
ref: 9

CAP,M/C.

€ 26.50

10

45517166006
ref: 10

HOLD,MAS.CYLINDER

€ 12.50

11

45518MB0006
ref: 11

PLATE,STOPPER

€ 3.50

12

45518MM5006
ref: 12

PLATE,DIAPHRAGM

€ 11.50

13

45520MM5006
ref: 13

DIAPHRAGM

€ 15.00

14

50401MM5000
ref: 14

CLAMP,CLUTCH HOSE

€ 5.50

15

53178MM5006
ref: 15

LEVER COMP.,L.HAN

€ 22.50

16

90114MA5671
ref: 16

BOLT,HNDL PIVOT

€ 8.50

17

90145MS9611
ref: 17

BOLT,OIL,10X22

€ 9.50

17

90145MS9612
ref: 17

OIL BOLT,10X22

€ 9.50

18

90201415000
ref: 18

NUT,CAP,6MM

€ 4.00

20

90651377003
ref: 20

CIR CLIP,INTERNAL

€ 2.50

21

93600040120G
ref: 21

SCREW,FLAT,4X12

€ 1.00

21

93600040121G
ref: 21

SCREW,FLAT,4X12

€ 1.00

22

938930401207
ref: 22

SCREW-WASH,4X12

€ 1.00

22

938930401217
ref: 22

SCREW-WASHER,4X12

€ 1.00

23

957010601400
ref: 23

BOLT,FLANGE 6X14

€ 1.00

24

960010602207
ref: 24

BOLT,FLANGE,6X22

€ 1.50

alle samenstellingen
