CARBURETOR COMPONENTS

CBR1000F 1993 (P) USA CALIFORNIA

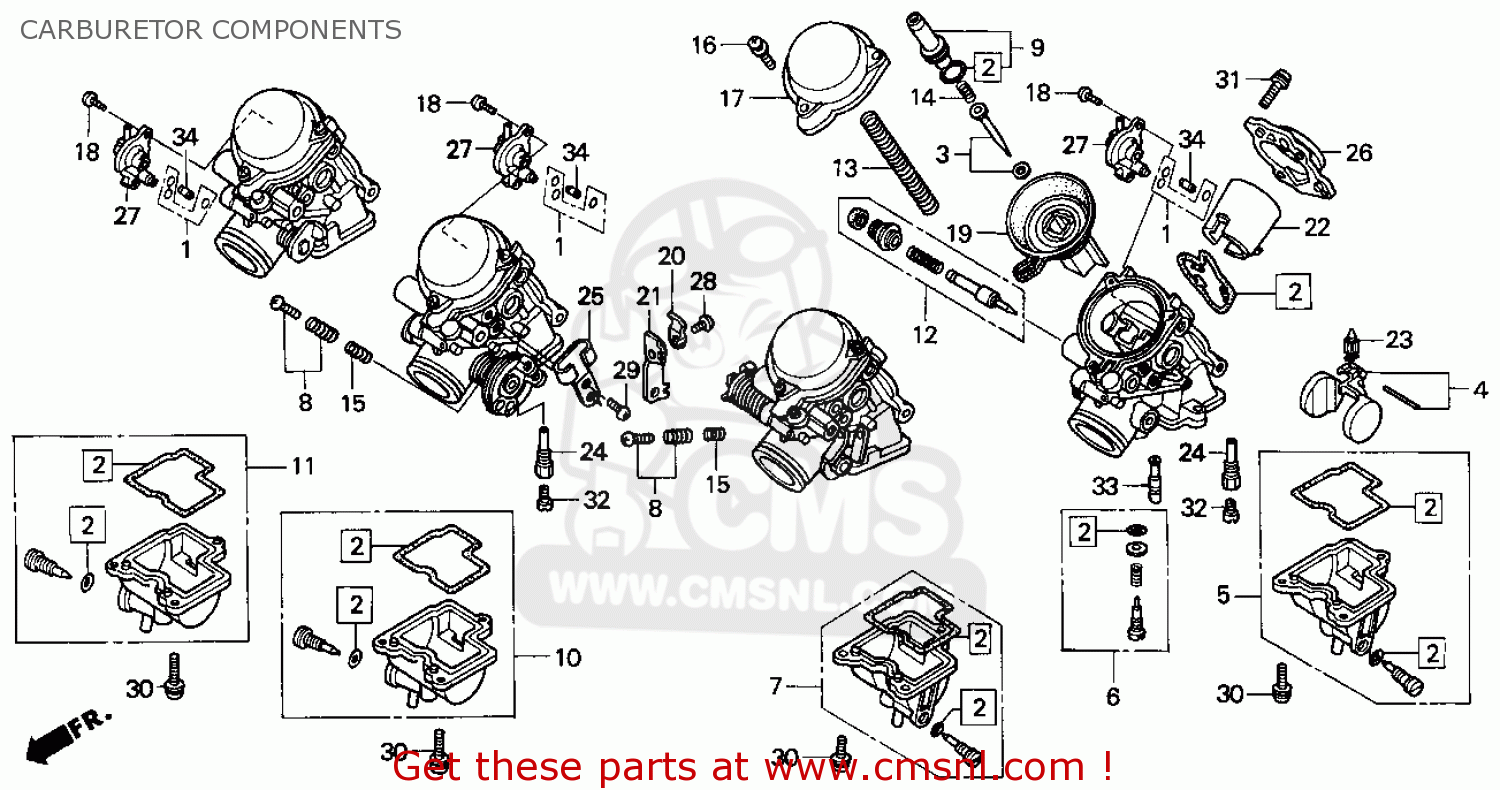

Carburetor components technisch schema CBR1000F 1993 (P) USA CALIFORNIA

CARBURETOR COMPONENTS CBR1000F 1993 (P) USA CALIFORNIA
CARBURETOR COMPONENTS CBR1000F 1993 (P) USA CALIFORNIA
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1
16010MW0750
ref: 1
AC
GASKET SET D
16010MW0750
€ 17.00
2
16010MZ2E00
ref: 2
GASKET SET,A
16010MZ2E00
€ 51.00
2
16010MZ2600
ref: 2
GASKET SET,A
16010MZ2600
€ 51.00
3
16012MZ2670
ref: 3
A
NEEDLE SET, JET
€ 31.50
3
16012MZ2750
ref: 3
AC
NEEDLE SET, JET
€ 31.50
4
16013MY1000
ref: 4
FLOAT SET
16013MY1000
€ 40.00
5
16015MZ2600
ref: 5
CHAMBER SET,FLOAT
€ 134.00
6
16016MV9730
ref: 6
SCREW SET
€ 20.50
7
16023MZ2600
ref: 7
CHAMBER SET,FLOAT
€ 125.00
8
16028MV4000
ref: 8
SCREW SET
16028MV4000
€ 30.50
9
16037MW0600
ref: 9
VALVE PLATE SET
16037MW0600
€ 18.50
10
16043MZ2600
ref: 10
CHAMBER SET,FLOAT
€ 144.00
11
16045MZ2600
ref: 11
CHAMBER SET,FLOAT
€ 134.00
12
16046MW0600
ref: 12
STARTER VALVE SET
16046MW0600
€ 62.00
12
16046MZ2E00
ref: 12
VALVE SET,STARTER
16046MZ2E00
€ 62.00
13
16050MZ2610
ref: 13
SPRING,COMPRESION
16050MZ2610
€ 12.50
14
16051MV4000
ref: 14
SPG,COMPRESSION,C
16051MV4000
€ 14.50
15
16052MV4000
ref: 15
SPG,COMPRESSION,C
16052MV4000
€ 4.50
16
16080MV4000
ref: 16
SCREW,PAN
16080MV4000
€ 1.50
17
16107MW0670
ref: 17
TOP
16107MW0670
€ 42.00
18
16108MW0750
ref: 18
SCREW
€ 2.50
19
16111MW0670
ref: 19
PISTON COMP VACUU
16111MW0670
€ 172.00
20
16119MZ2600
ref: 20
PLATE,STAY
16119MZ2600
€ 17.00
21
16119MZ2610
ref: 21
PLATE,STAY
16119MZ2610
€ 11.00
22
16141MZ2610
ref: 22
FUNNEL,AIR
16141MZ2610
€ 25.00
23
16155MN9004
ref: 23
VALVE COMP.,FLOAT
16155MN9004
€ 28.50
24
16165MW0600
ref: 24
NEEDLE JET HOLDER
16165MW0600
€ 32.50
25
16169MZ2600
ref: 25
WIRE STAY
16169MZ2600
€ 16.50
26
16188MW0671
ref: 26
PLATE,FUNNEL SET
16188MW0671
€ 45.00
27
16510MZ2650
ref: 27
AC
ACV,ASSY
16510MZ2650
€ 117.50
28
938920401000
ref: 28
SCREW-WASHER,4X10
938920401000
€ 1.50
28
938920401010
ref: 28
SCREW-WASH.,4X10
€ 1.50
29
938920501000
ref: 29
SCREW-WASHER,5X10
938920501000
€ 1.50
29
938920501010
ref: 29
SCREW-WASHER 5X10
€ 1.50
30
938920501600
ref: 30
SCREW-WASH. 5X16
938920501600
€ 1.00
30
938920501610
ref: 30
SCREW-WASHER,5X16
€ 1.00
31
938930401407
ref: 31
SCREW-WASHER,4X14
938930401407
€ 1.00
31
938930401417
ref: 31
SCREW-WASHER,4X14
€ 1.00
32
99101GHB1220
ref: 32
JET,#122
99101GHB1220
€ 9.00
32
991013931220
ref: 32
JET,MAIN,#122
991013931220
€ 9.00
33
99103MT20400
ref: 33
JET,SLOW,#40
99103MT20400
€ 18.50
34
99108MW01150
ref: 34
JET,SLOW AIR,#115
€ 11.00
