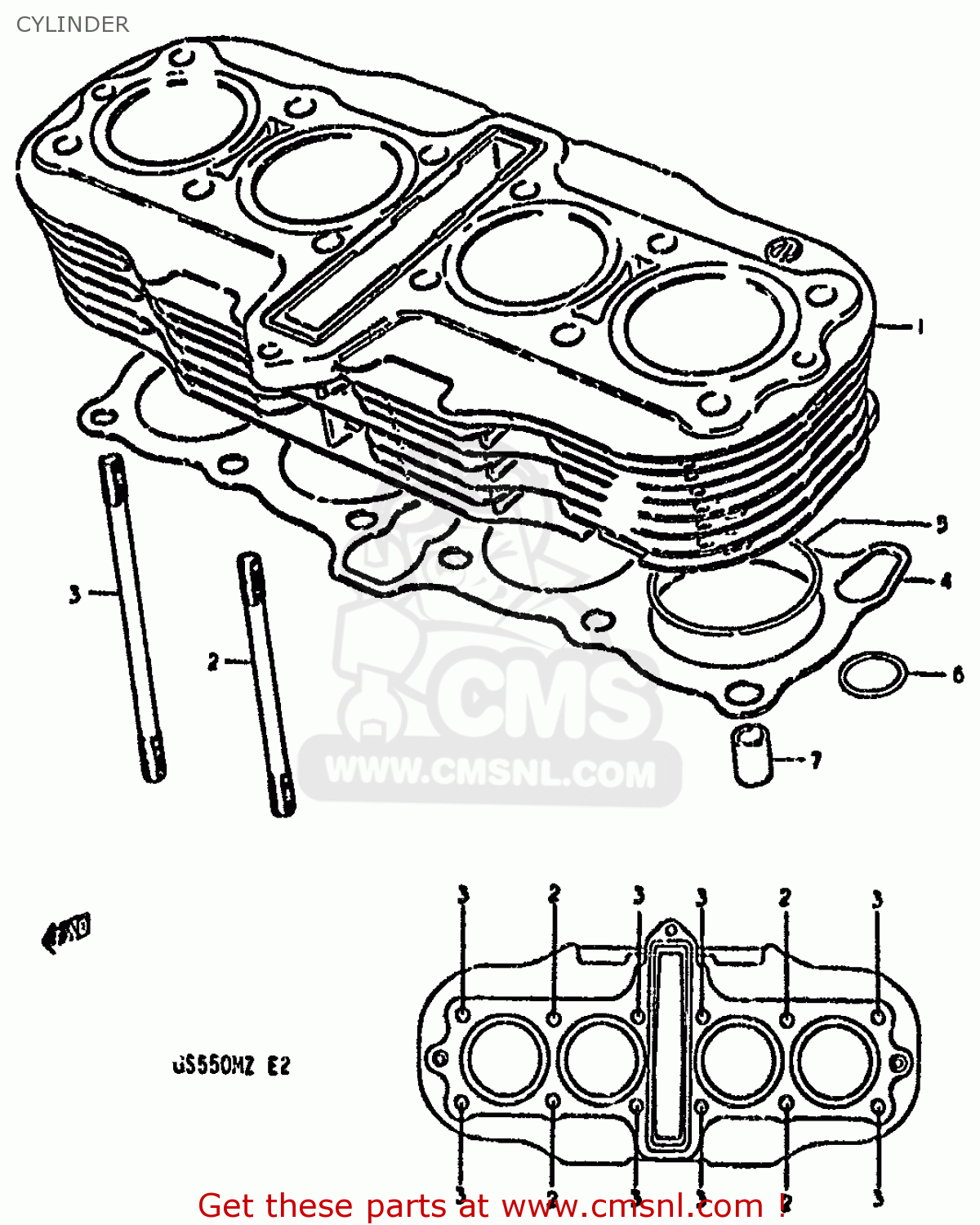

CYLINDER

GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

Cylinder スキーマ GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

CYLINDER GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

価格は EUR 単位です

参照

パーツ番号

説明

量

1

1121047004
参照: 1

CYLINDER

€ 900.00

2

0910808061
参照: 2

BOLT,STUD

€ 6.50

3

0910808062
参照: 3

BOLT,STUD

€ 4.00

4

1124147081
参照: 4

GASKET,CYLINDER (MCA)

€ 13.00

5

0928061001
参照: 5

O RING(D:2,ID:61)

€ 4.00

6

0928021005A
参照: 6

INVALID PARTNUMBER

€ 2.00

7

0920613001
参照: 7

PIN

€ 2.00
