CAM CHAIN

GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

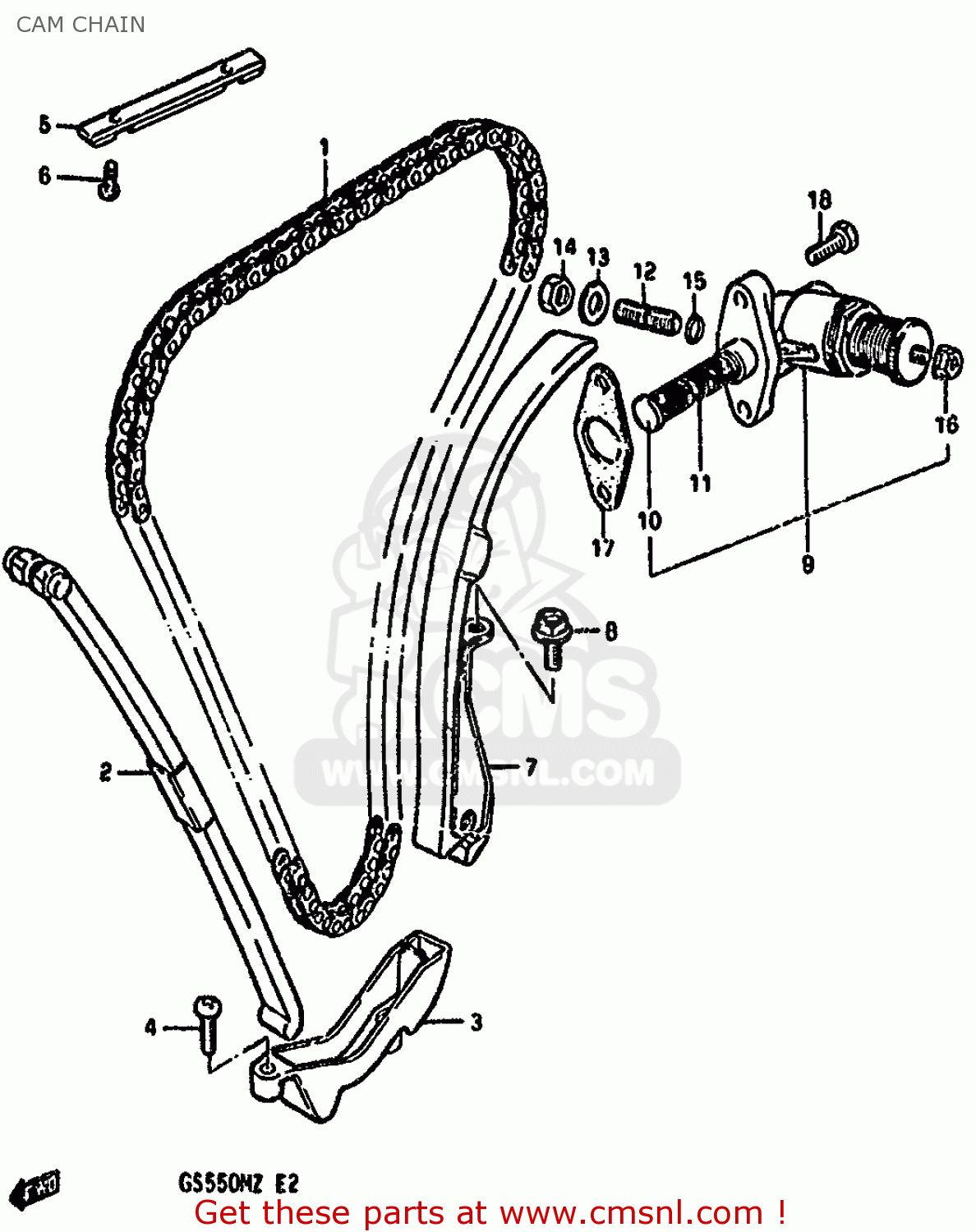

Cam chain スキーマ GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)

CAM CHAIN GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)
CAM CHAIN GS550M 1981 (X) (E02 E04 E06 E22 E24 E34)
価格は EUR 単位です
参照
パーツ番号
説明
量
1
1276047040
参照: 1
CHAIN,CAMSHAFT DRIVE
1276047040
€ 119.50
2
1277147041
参照: 2
GUIDE,CAM CHAIN NO.1
1277147041
€ 215.50
3
1277647000
参照: 3
HOLDER,CAM CHAIN GUIDE
1277647000
€ 11.00
4
0211206208
参照: 4
SCREW
€ 1.50
5
1278247040
参照: 5
GUIDE,CAM CHAIN NO.3
1278247040
€ 85.00
6
0211205128
参照: 6
SCREW
€ 1.50
7
1281047040
参照: 7
TENSIONER,CAM CHAIN
1281047040
€ 412.50
8
0151708168
参照: 8
BOLT
€ 2.00
9
1283047001
参照: 9
ADJUSTER ASSEMBLY,TENSIONER
1283047001
€ 159.00
10
1283347001
参照: 10
ROD,PUSH
1283347001
€ 23.50
11
0944012017
参照: 11
SPRING
0944012017
€ 2.00
12
1283845001
参照: 12
SCREW
1283845001
€ 5.50
13
0832211088
参照: 13
WASHER
0832211088
€ 1.50
14
0831012088
参照: 14
NUT
0831012088
€ 1.50
15
0928006003
参照: 15
O-RING
0928006003
€ 2.00
16
0831616068
参照: 16
NUT
0831616068
€ 1.50
17
1283747000
参照: 17
GASKET,TENSIONER ADJUSTER (MCA)
1283747000
€ 7.00
18
0912806024
参照: 18
SCREW (6X25)
0912806024
€ 2.00
