CRANKCASE

GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)

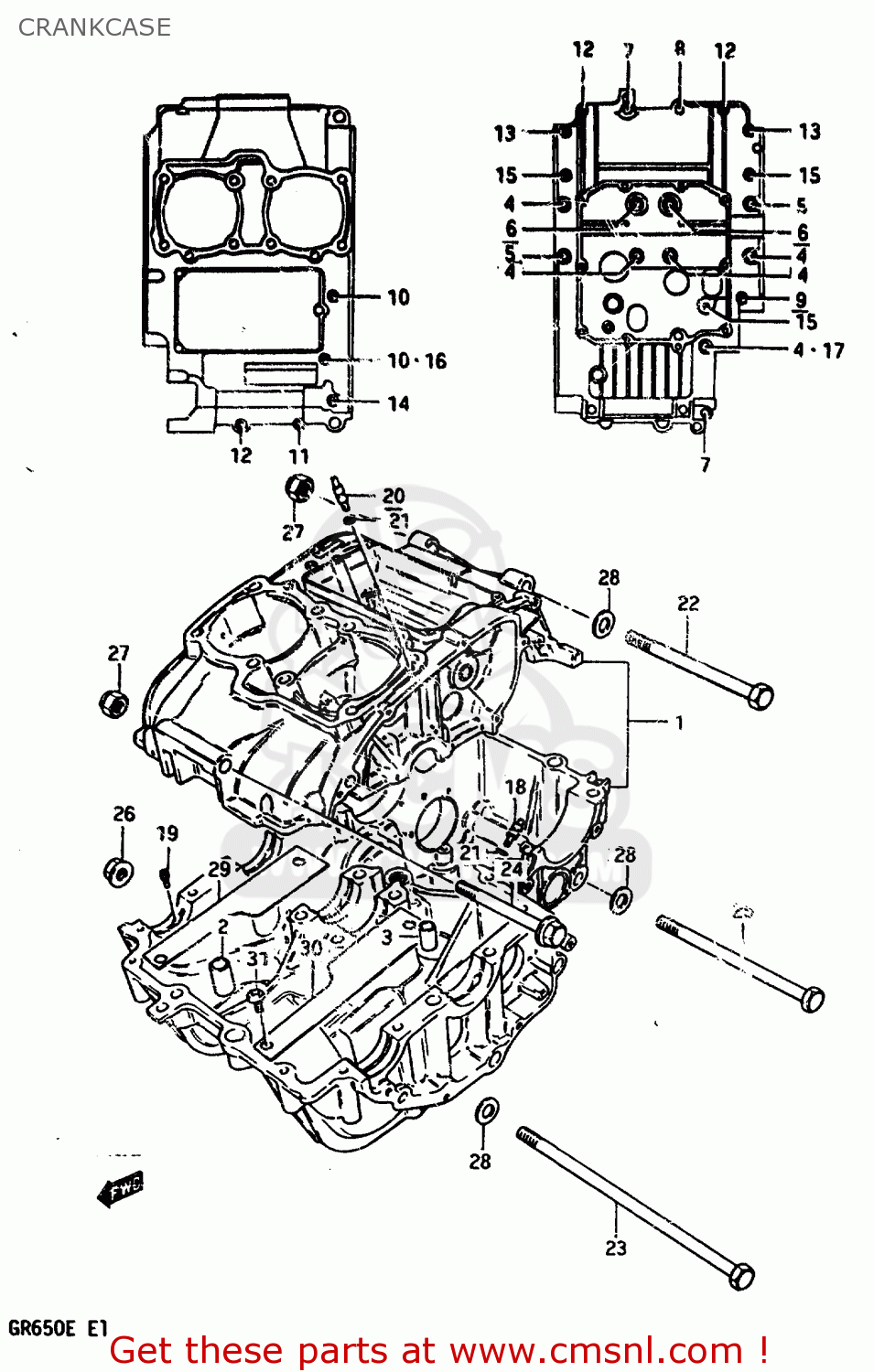

Crankcase スキーマ GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)

CRANKCASE GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)
CRANKCASE GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)
価格は EUR 単位です
参照
パーツ番号
説明
量
1-1
1130015870
参照: 1-1
E.NO.110990
CRANKCASE SET
€ 508.00
1-2
1130015871
参照: 1-2
E.NO.110991
CRANKCASE ASSEMBLY
€ 508.00
2
0920613004
参照: 2
PIN(10.4X13X22)
0920613004
€ 2.50
3
0920611005
参照: 3
PIN (11X20)(SUS)
€ 6.50
4
0910308091
参照: 4
BOLT
€ 3.50
5
0910308094
参照: 5
BOLT
€ 4.50
6
0910608015
参照: 6
BOLT
0910608015
€ 4.50
7
0151708505
参照: 7
BOLT (8X50)
0151708505
€ 2.50
8
0151708605
参照: 8
BOLT 8X60
€ 3.50
9
0910306060
参照: 9
BOLT(6X100)
0910306060
€ 2.00
10
0910306061
参照: 10
BOLT
€ 0.00
11
0151706405
参照: 11
BOLT (6X40)
€ 2.00
12
0151706505
参照: 12
BOLT 6X50
0151706505
€ 2.00
13
0151706605
参照: 13
BOLT ,6X60
€ 2.00
14
0151706705
参照: 14
BOLT
€ 2.50
15
0151706905
参照: 15
BOLT (6X90)
€ 3.50
16
0916806018
参照: 16
GASKET(6.2X13X1.2) (NAS)
0916806018
€ 1.50
17
0916808008
参照: 17
GASKET 8.2X14X1 (NAS)
0916808008
€ 1.00
18
0949320014
参照: 18
JET,OIL GALLERY
0949320014
€ 8.00
19
0949328011
参照: 19
JET,AIR
€ 11.50
20
0949328010
参照: 20
JET,AIR(14)
0949328010
€ 10.00
21
0928004004
参照: 21
O RING(D:1.2,ID:4)
0928004004
€ 1.50
22
0910010137
参照: 22
BOLT
€ 10.50
23
0910010138
参照: 23
BOLT
€ 10.50
24
0910310073
参照: 24
BOLT
€ 0.00
25
0910010193
参照: 25
BOLT 10X150
€ 0.00
26
0831931105
参照: 26
NUT 10MM
€ 2.50
27
0915910039
参照: 27
NUT
0915910039
€ 7.00
28
0832211105
参照: 28
WASHER
€ 2.00
29
1152115500
参照: 29
PLATE,OIL SEPARATOR
€ 0.00
30
1152215500
参照: 30
PLATE,OIL SEPARATOR,LEFT
€ 2.00
31
0211206108
参照: 31
SCREW
0211206108
€ 1.50
