RIGHT HANDLE SWITCH (MODEL N/P/R/S)

DR250SE 1992 (N) USA (E03)

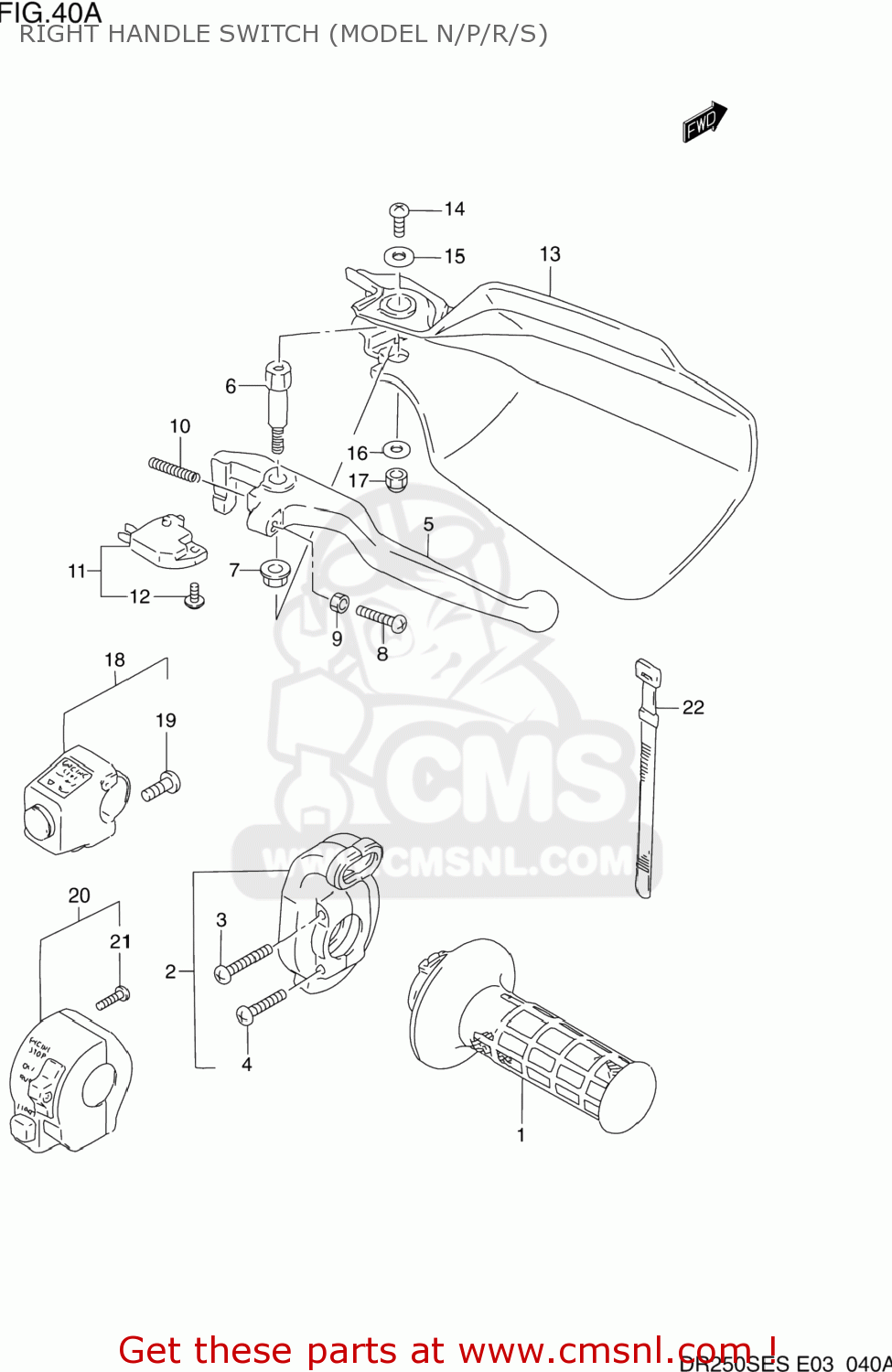

Right handle switch (model n/p/r/s) スキーマ DR250SE 1992 (N) USA (E03)

RIGHT HANDLE SWITCH (MODEL N/P/R/S) DR250SE 1992 (N) USA (E03)
RIGHT HANDLE SWITCH (MODEL N/P/R/S) DR250SE 1992 (N) USA (E03)
価格は EUR 単位です
参照
パーツ番号
説明
量
1-1
5711014D10
参照: 1-1
57110-14D11
GRIP,THROTTLE
€ 27.50
1-1
5711014D10
参照: 1-1
57110-14D11
GRIP,THROTTLE
€ 27.50
1-2
5711014D11
参照: 1-2
GRIP,THROTTLE
5711014D11
€ 27.50
2
5710014D00
参照: 2
CASE ASSY,THROTTLE
5710014D00
€ 45.50
3
0912505066
参照: 3
SCREW(5X25)
0912505066
€ 2.00
4
0211205205
参照: 4
02112-0520B
SCREW 5X20
0211205205
€ 2.00
5
5742103D00
参照: 5
LEVER,BRAKE
5742103D00
€ 16.00
6
5743105D00
参照: 6
BOLT,BRAKE LEVER PIVOT
5743105D00
€ 8.50
7
0831921068
参照: 7
08319-2106A
NUT 6MM
0831921068
€ 1.50
8
5743114511
参照: 8
BOLT,ADJUST
5743114511
€ 3.50
9
0831012055
参照: 9
08310-0005A
NUT ,5MM
0831012055
€ 2.00
10
5731814502
参照: 10
SPRING,RETURN
5731814502
€ 2.50
11
5746017C00
参照: 11
57460-17C01
SWITCH ASSEMBLY,STOP
5746017C00
€ 28.00
12
5746517C00
参照: 12
SCREW
5746517C00
€ 1.50
13
5734105D000NF
参照: 13
COVER,KNUCKLE,R
5734105D000NF
€ 29.00
14
0912505042
参照: 14
SCREW(5X10)
0912505042
€ 1.50
15
0916005017
参照: 15
09160-05043
WASHER (5.5X16X1.2)
0916005017
€ 2.00
16
0916006042
参照: 16
09160-06130
WASHER (6.5X17X1.6)
0916006042
€ 1.50
17
0831921068
参照: 17
08319-2106A
NUT 6MM
0831921068
€ 1.50
18
3720014D01
参照: 18
37200-44E00
SWITCH ASSEMBLY,HANDLE,RIGHT
3720014D01
€ 49.00
19
0211205166
参照: 19
02112-0516A
SCREW
€ 1.50
20
3720015D20
参照: 20
37200-15D30
SWITCH ASSEMBLY,HANDLE,RIGHT
€ 41.00
21-1
0211204205
参照: 21-1
02112-0420A
SCREW
€ 1.00
21-2
0912505066
参照: 21-2
SCREW(5X25)
0912505066
€ 2.00
22
0940712402
参照: 22
CLAMP(L:120)
0940712402
€ 2.50
