MAGNETO (MODEL P/R/S)

DR250SE 1992 (N) USA (E03)

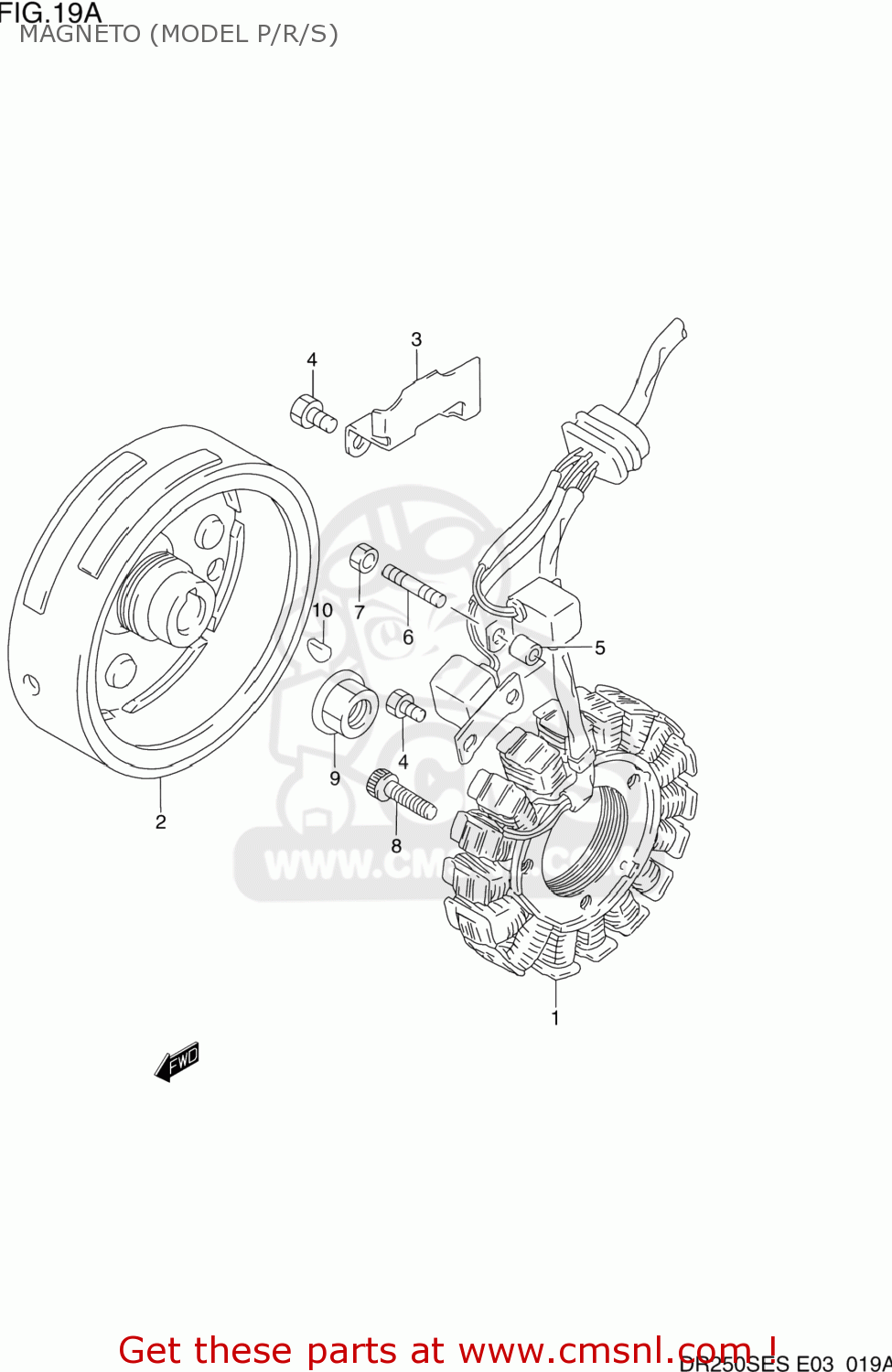

Magneto (model p/r/s) スキーマ DR250SE 1992 (N) USA (E03)

価格は EUR 単位です

参照

パーツ番号

説明

量

3210115D01
参照: 1

STARTER ASSY

€ 741.00

3210215D00
参照: 2

ROTOR

€ 293.50

3237115D00
参照: 3

CLAMP,MAGNETO LEAD WIRE

€ 0.00

0910005019
参照: 4

BOLT(5X10)

€ 1.50

0918005009
参照: 5
09180-05053

SPACER (5.5X9.5X6.5)

€ 2.00

0910805014
参照: 6

BOLT,STUD(5X18)

€ 2.00

7-1

0831011057
参照: 7-1
08310-00057

NUT 5MM

€ 1.50

7-2

0831000053
参照: 7-2
08310-0005A

NUT

€ 2.00

8-1

0711006257
参照: 8-1
07130-06257

BOLT

€ 2.50

8-2

0713006253
参照: 8-2
07130-0625B

BOLT,CL.COVER

€ 2.50

0915914015
参照: 9

NUT

€ 3.00

10-1

0834131049
参照: 10-1
09420-04008

KEY 4MM

€ 2.50

10-2

0942004008
参照: 10-2

KEY

€ 2.50
