TRANSMISSION

ZX500D2 ZZR550 1994 AUSTRIA

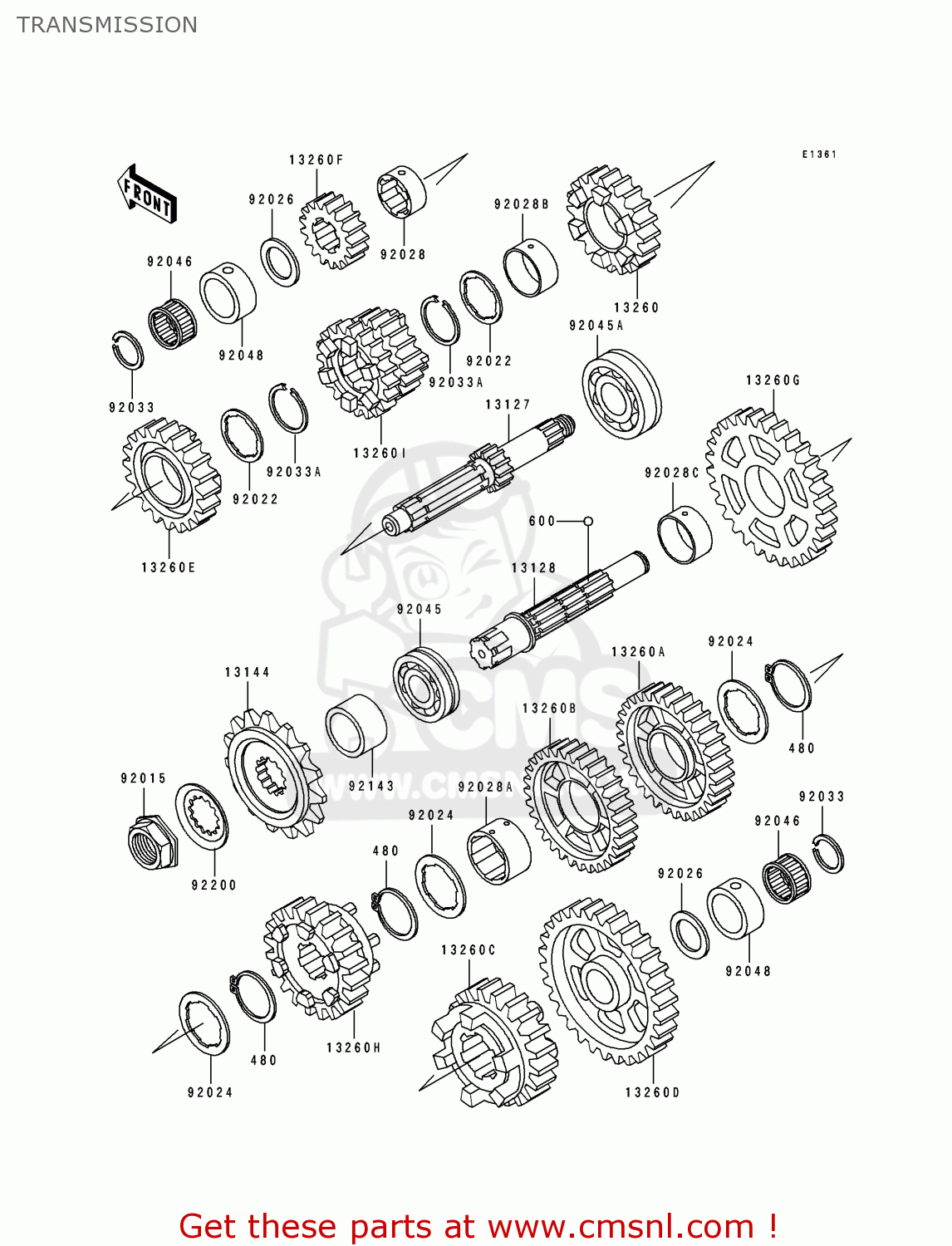

Transmission スキーマ ZX500D2 ZZR550 1994 AUSTRIA

TRANSMISSION ZX500D2 ZZR550 1994 AUSTRIA
TRANSMISSION ZX500D2 ZZR550 1994 AUSTRIA
価格は EUR 単位です
参照
パーツ番号
説明
量
480
480J2900
参照: 480
CIRCLIP
480J2900
€ 3.50
600
600A0500
参照: 600
BALL-STEEL,5/32
600A0500
€ 0.50
13127
131271230
参照: 13127
SHAFT-TRANSMISSION IN
€ 178.00
13128
131281194
参照: 13128
SHAFT-TRANSMISSION OU
131281194
€ 175.00
13144
131441212
参照: 13144
SPROCKET-OUTPUT,16T
131441212
€ 35.50
13260
132601026
参照: 13260
GEAR,INPUT 5TH,23T
132601026
€ 59.50
13260A
132601028
参照: 13260A
GEAR,OUTPUT 3RD,35T
132601028
€ 108.50
13260B
132601029
参照: 13260B
GEAR,OUTPUT 4TH,29T
132601029
€ 71.00
13260C
132601030
参照: 13260C
GEAR,OUTPUT 5TH,28T
€ 119.50
13260D
132601125
参照: 13260D
GEAR,OUTPUT LOW,38T
132601125
€ 34.00
13260E
132601323
参照: 13260E
GEAR,INPUT TOP,24T
132601323
€ 70.50
13260F
132601334
参照: 13260F
GEAR,INPUT 2ND,16T
132601334
€ 45.00
13260G
132601379
参照: 13260G
GEAR,OUTPUT 2ND,34T
132601379
€ 90.50
13260H
132601380
参照: 13260H
GEAR,OUTPUT TOP,26T
132601380
€ 102.50
13260I
132601381
参照: 13260I
GEAR,INPUT 3RD&4TH,21
132601381
€ 122.00
92015
920151254
参照: 92015
NUT,20MM
920151254
€ 9.50
92022
920221139
参照: 92022
WASHER,TOOTHED,28.3X3
920221139
€ 4.00
92024
92024043
参照: 92024
WASHER,TOOTHED,30.3X4
92024043
€ 7.50
92026
920261224
参照: 92026
SPACER,22X35.5X2.1
920261224
€ 5.50
92028
920281255
参照: 92028
BUSHING,INPUT TOP GEA
920281255
€ 25.00
92028A
920281363
参照: 92028A
BUSHING,OUTPUT 3RD&4T
920281363
€ 28.50
92028B
920281449
参照: 92028B
BUSHING,INPUT 5TH GEA
920281449
€ 16.00
92028C
920281450
参照: 92028C
BUSHING,OUTPUT 2ND
920281450
€ 16.00
92033
92033025
参照: 92033
CIRCLIP,25MM
92033025
€ 3.00
92033A
920331037
参照: 92033A
SNAP RING,25.9X1.2T
920331037
€ 3.00
92045
92045035
参照: 92045
BEARING-BALL,83993SH2
92045035
€ 61.50
92045A
920451224
参照: 92045A
BEARING-BALL,6305N2SH
920451224
€ 37.00
92046
92046031
参照: 92046
BEARING-NEEDLE,FWF-22
92046031
€ 18.00
92048
920481066
参照: 92048
RACE,NEEDLE BEARING
920481066
€ 24.00
92143
921431617
参照: 92143
COLLAR,25X32X20
€ 18.00
92200
922001065
参照: 92200
WASHER
922001065
€ 4.00
