CARBURETOR

ZX500D2 ZZR550 1994 AUSTRIA

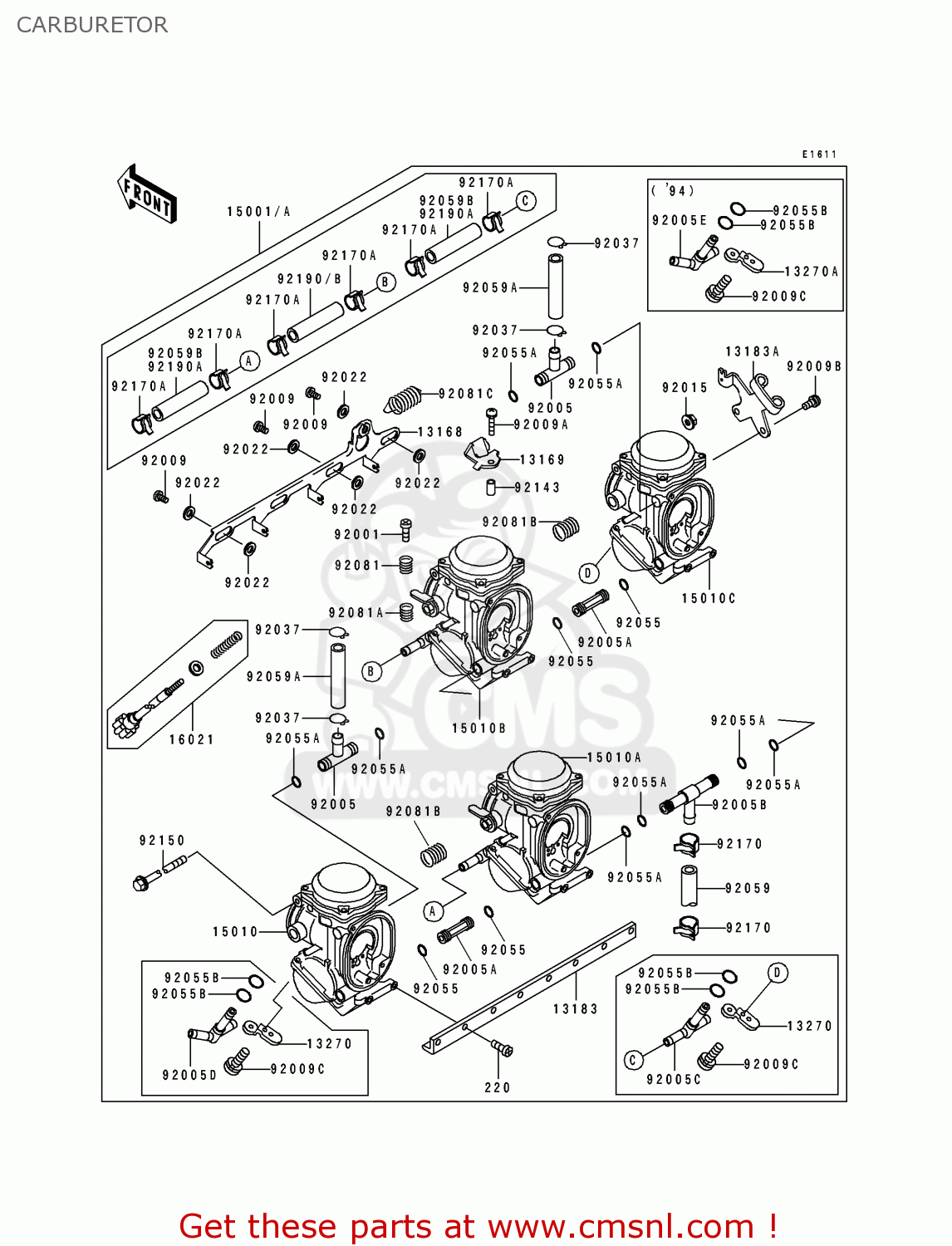

Carburetor スキーマ ZX500D2 ZZR550 1994 AUSTRIA

CARBURETOR ZX500D2 ZZR550 1994 AUSTRIA
CARBURETOR ZX500D2 ZZR550 1994 AUSTRIA
価格は EUR 単位です
参照
パーツ番号
説明
量
13168
131681462
参照: 13168
LEVER,STARTER
€ 82.50
13169
131691871
参照: 13169
PLATE,STARTER CABLE
€ 15.00
13183
131831608
参照: 13183
PLATE,CARBURETOR STAY
€ 58.50
13183A
131831610
参照: 13183A
PLATE,THROTTLE CABLE
131831610
€ 53.00
13270A
132701118
参照: 13270A
PLATE,FITTING STAY
132701118
€ 4.00
15001A
150011992
参照: 15001A
CARBURETOR-ASSY
€ 1,136.00
15010
150101545
参照: 15010
CARBURETOR,LH,OUTSIDE
€ 0.00
15010A
150101546
参照: 15010A
CARBURETOR,LH,INSIDE
€ 0.00
15010B
150101547
参照: 15010B
CARBURETOR,RH,INSIDE
€ 0.00
15010C
150101548
参照: 15010C
CARBURETOR,RH,OUTSIDE
€ 0.00
16021
160211160
参照: 16021
SCREW-THROTTLE STOP
160211160
€ 35.00
92001
920011998
参照: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.00
92005
920051125
参照: 92005
FITTING,T-TYPE
920051125
€ 17.00
92005A
920051157
参照: 92005A
FITTING
€ 23.50
92005B
920051214
参照: 92005B
FITTING,T-TYPE
920051214
€ 18.00
92005E
920051257
参照: 92005E
FITTING
€ 17.50
92009
920091262
参照: 92009
SCREW
920091262
€ 4.00
92009A
920091446
参照: 92009A
SCREW,4X18
920091446
€ 3.50
92009B
920091597
参照: 92009B
SCREW
920091597
€ 4.50
92009C
920091713
参照: 92009C
SCREW
920091713
€ 2.00
92015
920151259
参照: 92015
NUT,FLANGED,5MM
920151259
€ 2.50
92022
920221199
参照: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92037
920371531
参照: 92037
CLAMP,TUBE
920371531
€ 3.50
92055
920551004
参照: 92055
O RING
920551004
€ 2.50
92055A
920551223
参照: 92055A
RING-O,FUEL FITTING
920551223
€ 3.00
92055B
920551427
参照: 92055B
RING-O,4.5X1.5
920551427
€ 3.00
92059
920591487
参照: 92059
TUBE,7.3X12.5X240
€ 23.50
92059A
920591738
参照: 92059A
TUBE,7X11X45
€ 16.00
92081
920811620
参照: 92081
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081A
920811621
参照: 92081A
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081B
920811622
参照: 92081B
SPRING,THROTTLE ADJUS
920811622
€ 6.50
92081C
920811913
参照: 92081C
SPRING,STARTER LEVER
920811913
€ 14.00
92143
921431265
参照: 92143
COLLAR,4X5.2X9.6
921431265
€ 3.00
92143A
921431449
参照: 92143A
COLLAR
€ 13.00
92150
921501416
参照: 92150
BOLT
921501416
€ 20.50
220
220D0514
参照: 220
SCREW-PAN-CROS
€ 2.00
92170
921701051
参照: 92170
CLAMP,TUBE
921701051
€ 5.50
92170A
921701054
参照: 92170A
CLAMP,TUBE
921701054
€ 4.50
92190A
921901530
参照: 92190A
TUBE,WATER
€ 7.00
92190B
921901536
参照: 92190B
TUBE,WATER
921901536
€ 7.00
