OIL PAN/OIL FILTER

ZN1300A6 VOYAGER 1988 USA CALIFORNIA

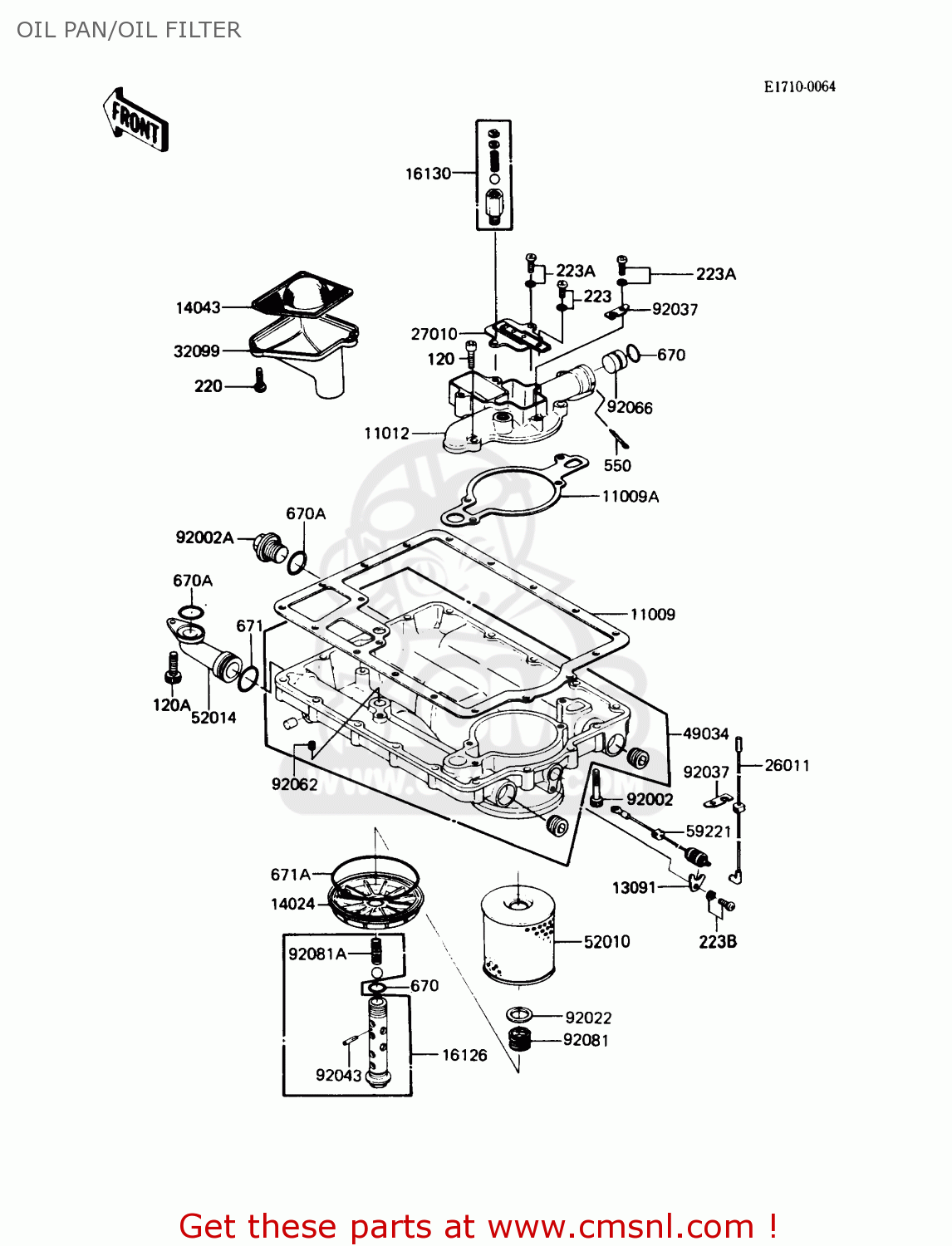

Oil pan/oil filter スキーマ ZN1300A6 VOYAGER 1988 USA CALIFORNIA

OIL PAN/OIL FILTER ZN1300A6 VOYAGER 1988 USA CALIFORNIA
OIL PAN/OIL FILTER ZN1300A6 VOYAGER 1988 USA CALIFORNIA
価格は EUR 単位です
参照
パーツ番号
説明
量
120
120P0635
参照: 120
BOLT,SOCKET,6X35
120P0635
€ 1.50
120A
120Z0620
参照: 120A
BOLT-SOCKET,6X20
120Z0620
€ 3.00
220
220B0620
参照: 220
SCREW-PAN HEAD,6X20
220B0620
€ 2.00
223
223B0406
参照: 223
SCREW-PAN-WS-CROS
€ 0.50
223A
223B0614
参照: 223A
SCREW-KIT
€ 2.50
223B
223D0614
参照: 223B
SCREW-PAN-WS-CROS
€ 2.00
550
550D2040
参照: 550
PIN,COTTER,2.0X40
€ 1.50
670
670B2016
参照: 670
O RING,16MM
670B2016
€ 1.00
670A
670B2022
参照: 670A
O RING,22MM
670B2022
€ 2.50
671
671B2525
参照: 671
O RING,25MM
671B2525
€ 3.00
671A
671B2595
参照: 671A
O RING,95MM
671B2595
€ 4.00
11009
110091093
参照: 11009
GASKET,OIL PAN (MCA)
110091093
€ 21.00
11009A
110091198
参照: 11009A
GASKET,OIL FILTER (MCA)
110091198
€ 6.50
11012
110121148
参照: 11012
CAP,OIL FILTER
110121148
€ 40.50
13091
130911080
参照: 13091
HOLDER,CONNECTOR
€ 3.50
14024
140251170
参照: 14024
COVER,OIL FILTER
140251170
€ 33.00
14043
140431008
参照: 14043
FILTER,OIL
140431008
€ 16.50
16126
161261006
参照: 16126
BOLT ASSY,OIL FILTER
161261006
€ 37.00
16130
161301001
参照: 16130
VALVE-ASSY-RELIEF
161301001
€ 44.50
26011
260111262
参照: 26011
WIRE-LEAD,OIL SWITCH
€ 6.00
27010
270101038
参照: 27010
SWITCH,OIL LEVEL
270101038
€ 96.50
32099
320991017
参照: 32099
CASE,OIL FILTER
320991017
€ 22.50
49034
490345005
参照: 49034
PAN-OIL
490345005
€ 200.00
52010
16099002
参照: 52010
ELEMENT-OIL FILTER
16099002
€ 12.50
52014
520141002
参照: 52014
ELBOW,OIL PASSAGE
€ 30.00
59221
592211002
参照: 59221
CONNECTOR,OIL SW CORD
592211002
€ 62.00
92002
920021270
参照: 92002
BOLT,6X35
€ 2.50
92002A
920021276
参照: 92002A
BOLT,OIL DRAIN
920021276
€ 16.50
92022
920221012
参照: 92022
WASHER,20.5X30X1
920221012
€ 2.50
92037
920371211
参照: 92037
CLAMP,LEAD WIRE
€ 2.50
92043
92043111
参照: 92043
SPRING PIN
92043111
€ 3.50
92062
92062011
参照: 92062
NOZZLE,OIL
92062011
€ 5.00
92066
920661023
参照: 92066
PLUG,OIL GALLARY,16X3
920661023
€ 3.50
92081
920811018
参照: 92081
SPRING,OIL FILTER
920811018
€ 3.00
92081A
92081133
参照: 92081A
SPRING,PISTON
€ 5.00
