MUFFLER(S)

ZN1300A6 VOYAGER 1988 USA CALIFORNIA

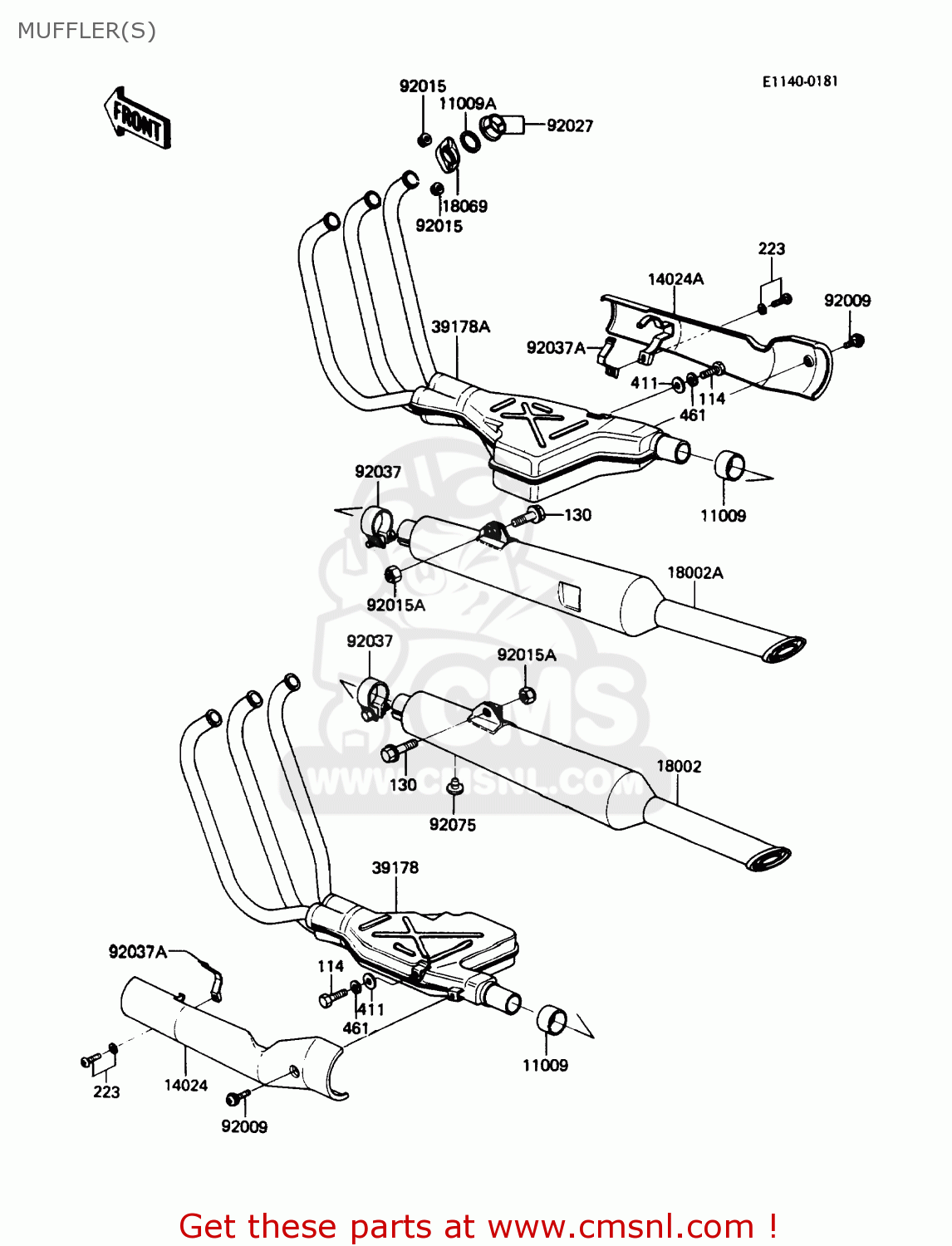

Muffler(s) スキーマ ZN1300A6 VOYAGER 1988 USA CALIFORNIA

MUFFLER(S) ZN1300A6 VOYAGER 1988 USA CALIFORNIA
MUFFLER(S) ZN1300A6 VOYAGER 1988 USA CALIFORNIA
価格は EUR 単位です
参照
パーツ番号
説明
量
114
114N0825
参照: 114
BOLT-SMALL,8X25
114N0825
€ 2.50
130
130J1030
参照: 130
BOLT-FLANGED,10X30
€ 3.50
223
223X0630
参照: 223
SCREW-PAN-WS-CROS
€ 1.50
411
411D0800
参照: 411
WASHER,PLAIN,8MM
€ 1.50
461
461S0800
参照: 461
WASHER,SPRING,8M/M
461S0800
€ 0.50
11009
110091480
参照: 11009
GASKET,EXHAUST PIPE C (MCA)
110091480
€ 19.00
11009A
18067004
参照: 11009A
GASKET-EXHAUST PIPE (MCA)
18067004
€ 7.00
14024
140251824
参照: 14024
COVER,MUFFLER,LH
€ 34.00
14024A
140251825
参照: 14024A
COVER,MUFFLER,RH
€ 26.00
18002
180021638
参照: 18002
BODY-COMP-MUFFLER,LH
€ 321.50
18002A
180021639
参照: 18002A
BODY-COMP-MUFFLER,RH
€ 321.50
18069
180691010
参照: 18069
HOLDER-EXHAUST PIPE
€ 11.50
39178
391781022
参照: 39178
MANIFOLD-COMP-EXHAUST
€ 512.50
39178A
391781023
参照: 39178A
MANIFOLD-COMP-EXHAUST
€ 488.00
92009
920091098
参照: 92009
SCREW,6X10
920091098
€ 2.00
92015
920151365
参照: 92015
NUT,6MM
920151365
€ 3.00
92015A
92019021
参照: 92015A
NUT,LOCK,10M/M
92019021
€ 2.00
92027
920271142
参照: 92027
COLLAR,L=14.5
920271142
€ 3.00
92037
920371228
参照: 92037
CLAMP,POWER CHAMBER
920371228
€ 10.50
92037A
920371465
参照: 92037A
CLAMP,MUFFLER COVER
920371465
€ 5.00
92075
92075015
参照: 92075
DAMPER RUBB-MAIN STND
92075015
€ 3.00
