TAILLIGHT

NH80MD LEAD 1993 (P) GENERAL EXPORT KPH

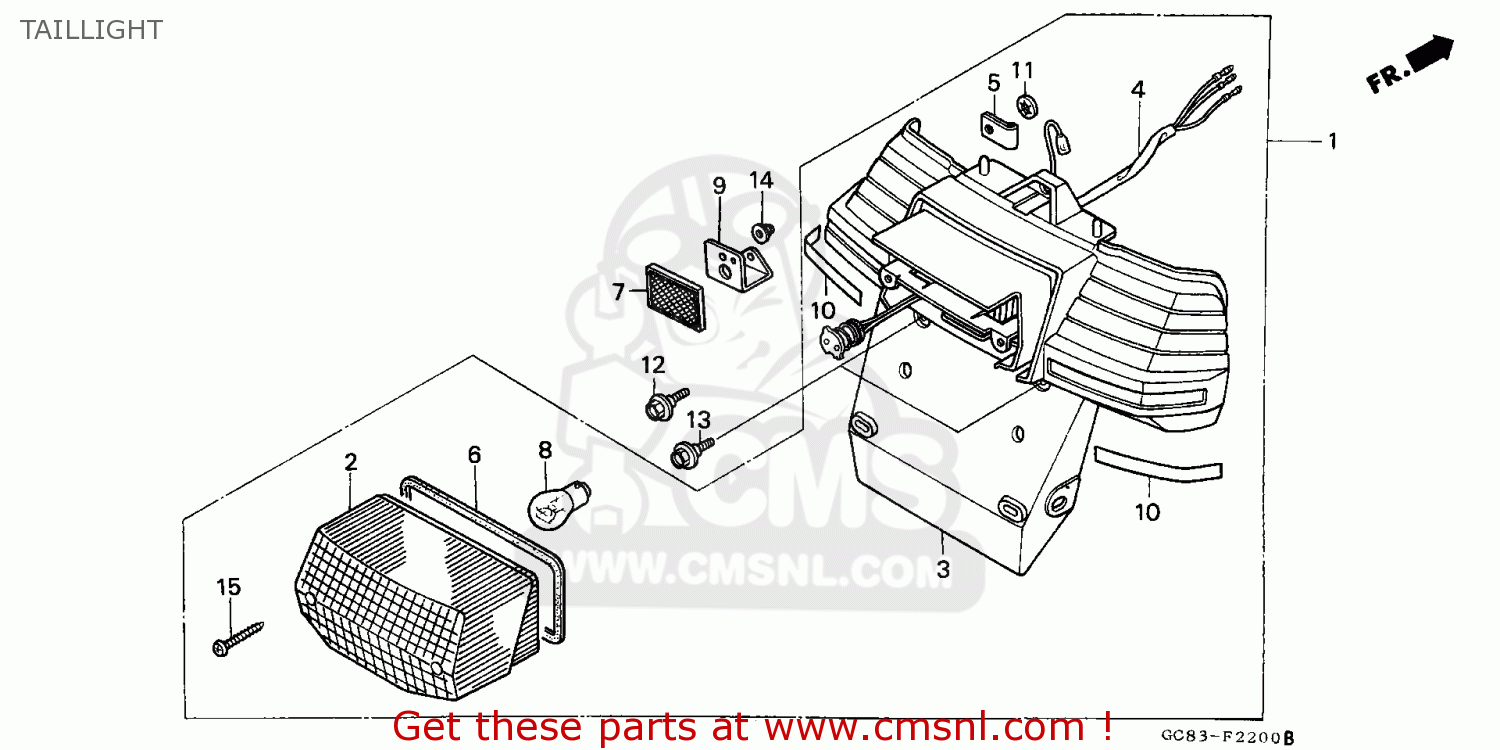

Taillight スキーマ NH80MD LEAD 1993 (P) GENERAL EXPORT KPH

TAILLIGHT NH80MD LEAD 1993 (P) GENERAL EXPORT KPH
TAILLIGHT NH80MD LEAD 1993 (P) GENERAL EXPORT KPH
価格は EUR 単位です
参照
パーツ番号
説明
量
1
33700GC8614
参照: 1
LIGHT ASSY.,TAIL
33700GC8614
€ 96.00
2
33702GC8614
参照: 2
LENS,TAIL LIGHT
33702GC8614
€ 11.50
3
33704GC8611
参照: 3
BASE.COMP TAIL/LT
33704GC8611
€ 84.00
4
33705GC8611
参照: 4
CORD.COMP.TAIL/LT
33705GC8611
€ 8.00
5
33706GC8003
参照: 5
CLAMP,RR.COMB.
€ 1.00
6
33709GC8611
参照: 6
PKG,TAIL LENS
33709GC8611
€ 3.00
8
34911634611
参照: 8
BULB (12V21W-5W)
34911634611
€ 4.50
10
87148GC8610
参照: 10
STRIPE,TAIL BASE
87148GC8610
€ 3.00
11
90108GC8003
参照: 11
NUT,PUSH
€ 2.50
12
90111162000
参照: 12
BOLT,FLANGE,6MM
90111162000
€ 3.00
13
90111162000
参照: 13
BOLT,FLANGE,6MM
90111162000
€ 3.00
15
9390124710
参照: 15
SCREW,TAP.4X30
9390124710
€ 0.50
