METER

NH80MD LEAD 1993 (P) GENERAL EXPORT KPH

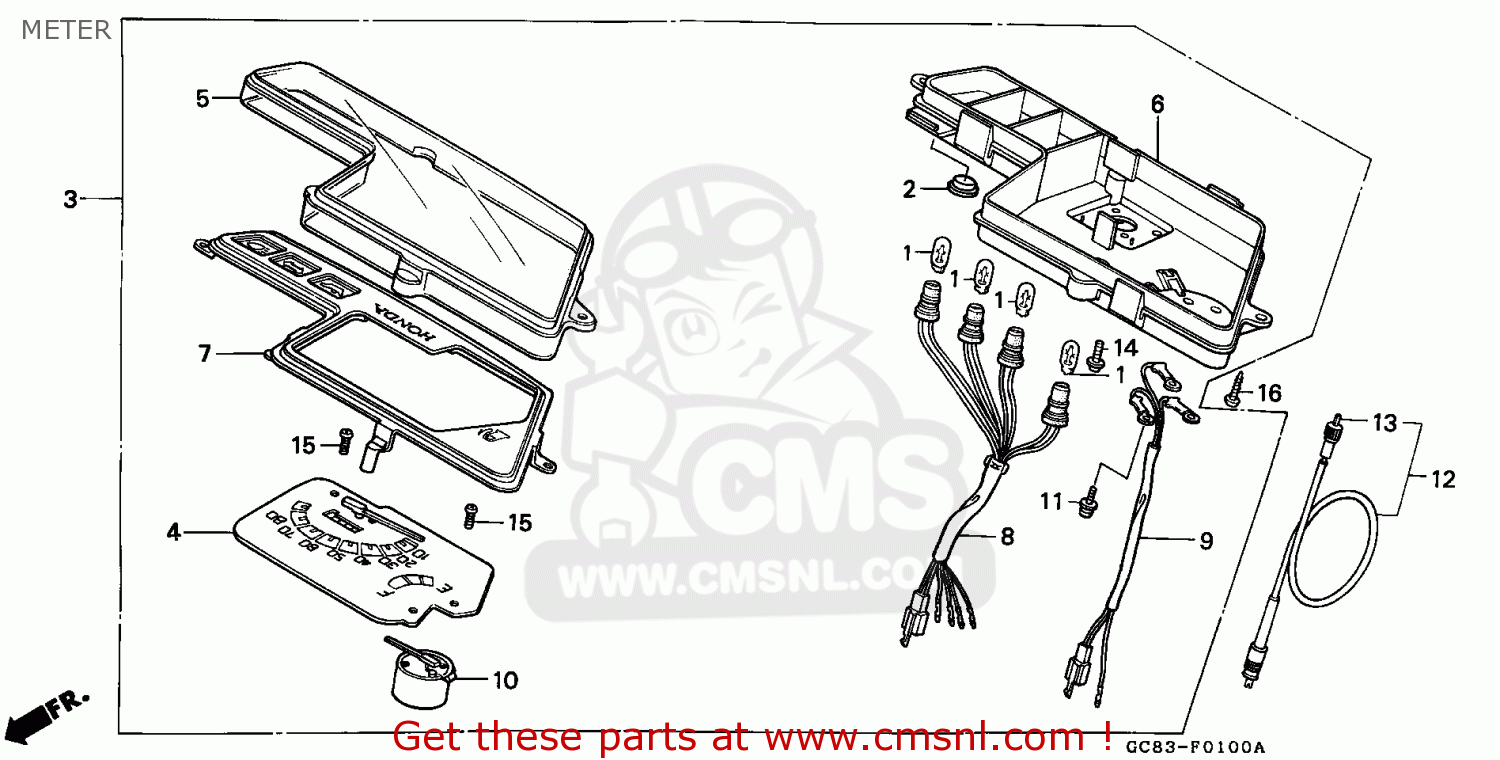

Meter スキーマ NH80MD LEAD 1993 (P) GENERAL EXPORT KPH

METER NH80MD LEAD 1993 (P) GENERAL EXPORT KPH
METER NH80MD LEAD 1993 (P) GENERAL EXPORT KPH
価格は EUR 単位です
参照
パーツ番号
説明
量
1
34908GA7701
参照: 1
BULB,WEDGE BASE
34908GA7701
€ 3.00
4
37210GC8611
参照: 4
SPEEDOMETER COMP
37210GC8611
€ 47.50
5
37211GC8008
参照: 5
LENS,METER
37211GC8008
€ 24.50
6
37212GC8018
参照: 6
CASE,METER
37212GC8018
€ 27.50
7
37213GC8008
参照: 7
PLATE,REFLECTING
37213GC8008
€ 7.50
8
37223GC8018
参照: 8
SOCKET COMP
37223GC8018
€ 18.00
9
37229GC8008
参照: 9
CORD,COMP,FUEL
37229GC8008
€ 5.50
10
37300GC8018
参照: 10
FUEL METER COMP
37300GC8018
€ 33.50
11
37305KE5008
参照: 11
SCREW WASH 3X22
37305KE5008
€ 3.50
12
44830GC8000
参照: 12
CABLE,SPEEDOMETER
44830GC8000
€ 9.50
13
44831GC8000
参照: 13
CABLE,INNER
44831GC8000
€ 7.50
14
90101GC8008
参照: 14
SCREW.FLANGE 4X8
90101GC8008
€ 7.00
15
90107GC8000
参照: 15
SCREW,PAN,2.3X7
90107GC8000
€ 2.50
16
9390325410
参照: 16
SCREW,TAP,5X20
9390325410
€ 1.00
