TRUNK INNER BODY

PC800 PACIFIC COAST 1989 (K) USA CALIFORNIA

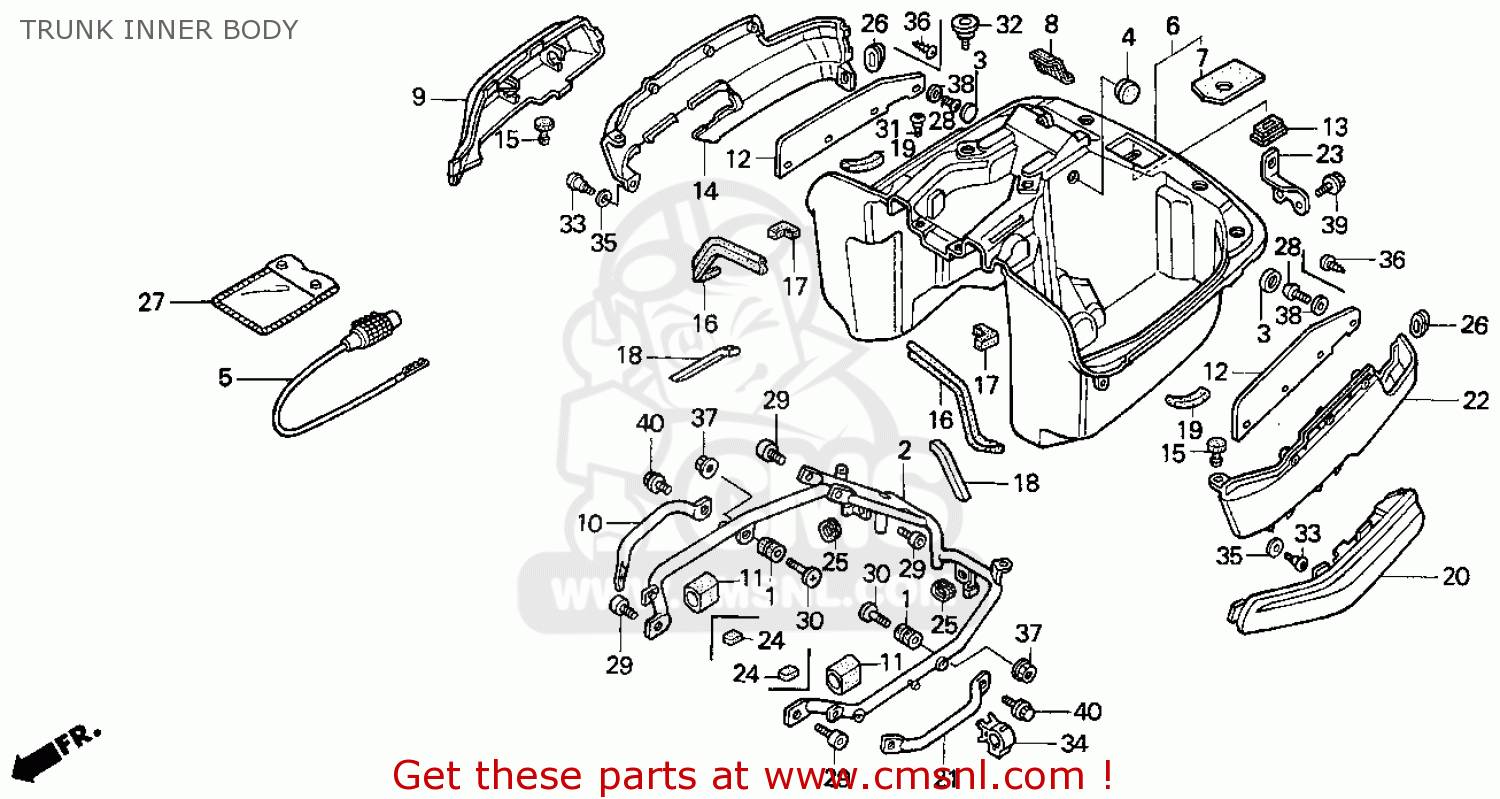

Trunk inner body スキーマ PC800 PACIFIC COAST 1989 (K) USA CALIFORNIA

TRUNK INNER BODY PC800 PACIFIC COAST 1989 (K) USA CALIFORNIA
TRUNK INNER BODY PC800 PACIFIC COAST 1989 (K) USA CALIFORNIA
価格は EUR 単位です
参照
パーツ番号
説明
量
1
43516MR5000
参照: 1
RUBBER,MOUNTTING
43516MR5000
€ 4.50
2
50240MR5000
参照: 2
FRAME,REAR BAG
€ 551.50
2
50240MR5870
参照: 2
FRAME,RR.TRUNK
€ 551.50
4
70529657670
参照: 4
GROM.B,SIDE PANEL
€ 5.00
5
77237MR5000
参照: 5
LOCK,WIRE
€ 34.50
6
81210MR5000
参照: 6
BODY,TRUNK INNER
€ 302.50
6
81210MR5010
参照: 6
BODY,TRUNK INNER
€ 302.50
7
81211MR5300
参照: 7
SHEET,TRUNK INNER
81211MR5300
€ 6.50
8
81213MR5000
参照: 8
GROMMET (A),SEAL
€ 7.50
9
81214MR5000ZA
参照: 9
PROTECTOR,*TYPE1*
81214MR5000ZA
€ 55.00
10
81215MR5000
参照: 10
BUMPER,R REAR
€ 29.50
12
81216MR5000
参照: 12
WALL,TRUNK SIDE
€ 19.00
13
81217MR5000
参照: 13
GROMMET (B),SEAL
€ 5.50
14
81240MR5000ZA
参照: 14
COVER,R.TR*TYPE1*
81240MR5000ZA
€ 190.50
15
81242MR5000
参照: 15
PLUG,PIN
81242MR5000
€ 3.50
16
81355MR5000
参照: 16
RUBBER SEAL B
€ 6.50
17
81364MR5300
参照: 17
RUBBER,SEAL (H)
81364MR5300
€ 1.50
18
81368MR5300
参照: 18
RUBBER,SEAL(B)
81368MR5300
€ 4.50
20
81414MR5000ZA
参照: 20
PROTECTOR,*TYPE1*
81414MR5000ZA
€ 54.00
21
81415MR5000
参照: 21
BUMPER,L REAR
81415MR5000
€ 29.50
22
81440MR5000ZA
参照: 22
COVER,L.TR*TYPE1*
€ 190.00
23
83305MR5000
参照: 23
STRIKER,TRUNK LOW
€ 17.00
24
83521198900
参照: 24
RUBBER,TOOL BOX
83521198900
€ 2.00
25
83551300000
参照: 25
CASE,GROMET
83551300000
€ 3.00
26
83601MB0000
参照: 26
GROMMET A SIDE COVER
83601MB0000
€ 4.50
27
83642MN5000
参照: 27
BAG,OWNERS MANUAL
83642MN5000
€ 13.00
29
90102MN8700
参照: 29
BOLT,SOCKET,8X25
90102MN8700
€ 5.50
30
90103MR5010
参照: 30
BOLT,SPECIAL 6X24
90103MR5010
€ 2.00
31
90113MR5000
参照: 31
SCREW,PAN,6X14
90113MR5000
€ 2.50
32
90115MR5000
参照: 32
BOLT SPECIAL 6X12
€ 3.50
33
90142MB0000
参照: 33
SCREW,PAN,5X16.5
90142MB0000
€ 3.00
34
90690GHB641
参照: 34
KM001921
A
CLIP,CABLE,10MM
90690GHB641
€ 2.50
34
90690GHB641
参照: 34
KM000609
AC
CLIP,CABLE,10MM
90690GHB641
€ 2.50
34
90690GHB651
参照: 34
KM001922
A
CLIP,CABLE,15MM
90690GHB651
€ 2.50
34
90690GHB651
参照: 34
KM000610
AC
CLIP,CABLE,15MM
90690GHB651
€ 2.50
35
90755693620
参照: 35
WASHER PLAIN 7MM
90755693620
€ 3.00
36
9390325380
参照: 36
SCREW TAPP 5X16
9390325380
€ 1.00
37
9405006080
参照: 37
NUT,FLANGE,6MM
9405006080
€ 1.00
39
957010601608
参照: 39
BOLT,FLANGE,6X16
957010601608
€ 1.00
40
957010801408
参照: 40
BOLT,FLANGE,8X14
957010801408
€ 1.50
