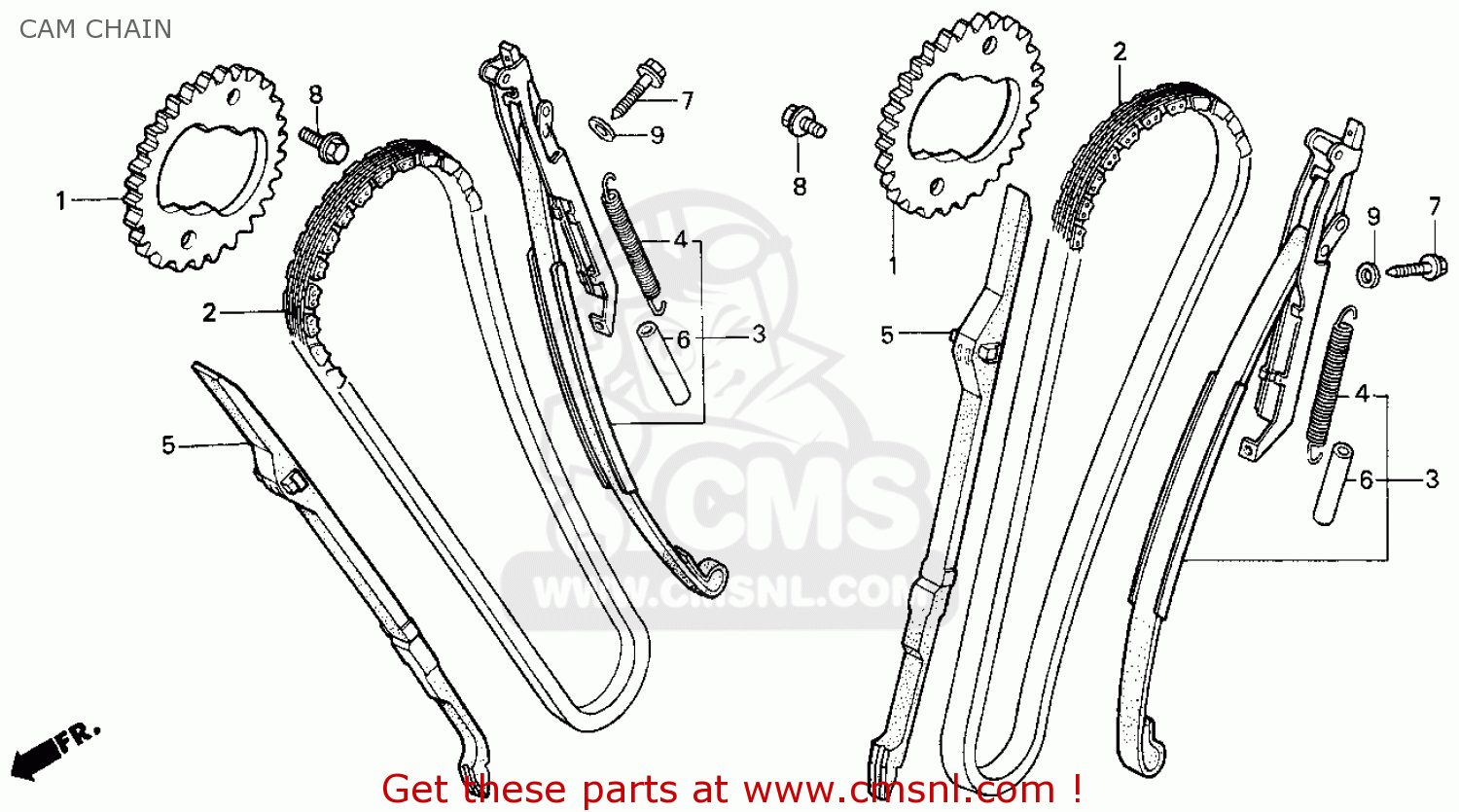

CAM CHAIN

PC800 PACIFIC COAST 1989 (K) USA CALIFORNIA

Cam chain スキーマ PC800 PACIFIC COAST 1989 (K) USA CALIFORNIA

CAM CHAIN PC800 PACIFIC COAST 1989 (K) USA CALIFORNIA

価格は EUR 単位です

参照

パーツ番号

説明

量

1

14322ME9000
参照: 1

SPROCKET,CAM

€ 46.50

2

14401MR5671
参照: 2

CHAIN,CAM

€ 160.50

3

14510MK7770
参照: 3

TENSIONER COMP.,C

€ 107.00

4

14516MG8003
参照: 4

SPRING,CAM CHAIN

€ 5.00

5

14522MK7770
参照: 5

GUIDE,CAM CHAIN

€ 24.00

6

14545MK7670
参照: 6

TUBE,TENSIONER SP

€ 8.00

7

90016MG8000
参照: 7

BOLT,FLANGE,6X24

€ 2.50

8

90026MM8000
参照: 8

BOLT,UBS,7X15

€ 2.50

9

90441706000
参照: 9

WASHER SEAL, 6MM

€ 1.00

すべてのアセンブリ
