REAR COMBINATION LAMP (MODEL V)

VS600GL 1995 (S) ITALY (E34)

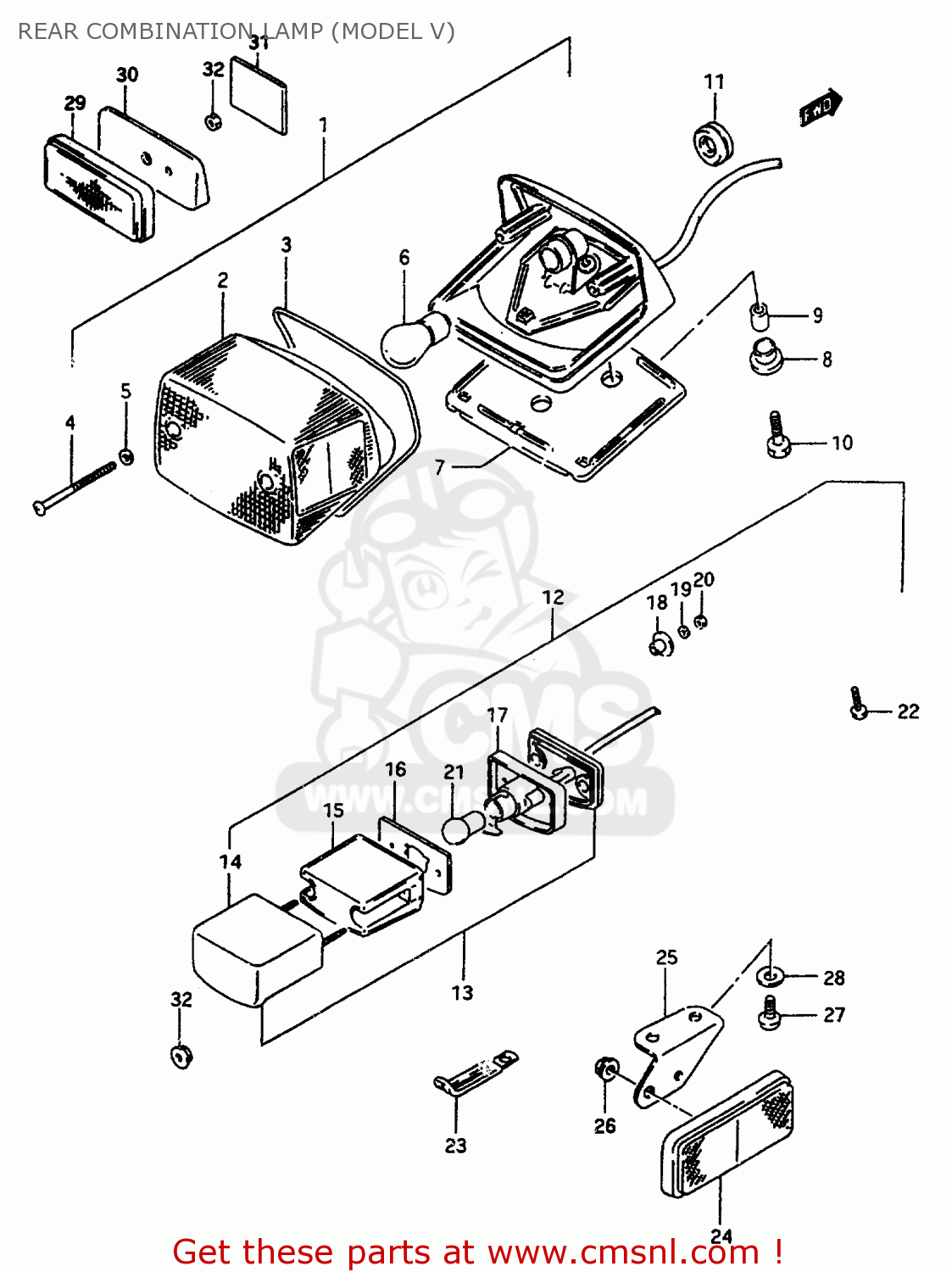

Rear combination lamp (model v) diagramma VS600GL 1995 (S) ITALY (E34)

REAR COMBINATION LAMP (MODEL V) VS600GL 1995 (S) ITALY (E34)
REAR COMBINATION LAMP (MODEL V) VS600GL 1995 (S) ITALY (E34)
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
3571038A20
rif: 1
LAMP ASSY,RR COMBINATION
3571038A20
€ 303.00
2
3571238A20
rif: 2
LENS
3571238A20
€ 82.00
3
3571338A00
rif: 3
GASKET (NAS)
3571338A00
€ 9.50
4
3572344130
rif: 4
SCREW
3572344130
€ 2.00
5
3562743010
rif: 5
GASKET (NAS)
3562743010
€ 1.50
6
0947112083
rif: 6
BULB(12V21/5W)
0947112083
€ 5.50
7
3576538A00
rif: 7
CUSHION
3576538A00
€ 13.50
8
3576426470
rif: 8
CUSHION
3576426470
€ 2.50
9
3576637190
rif: 9
SPACER
3576637190
€ 2.00
10
0911606093
rif: 10
BOLT(6X25)
0911606093
€ 2.00
11-1
0930809013
rif: 11-1
GROMMET
€ 2.00
11-2
0930814006
rif: 11-2
E4,E17,E34
GROMMET
€ 3.50
12
3591038A21
rif: 12
LAMP ASSY,LICENSE
3591038A21
€ 249.00
13
3591038E00
rif: 13
E17
LAMP ASSY,LICENSE
€ 156.00
14-1
3591738A20
rif: 14-1
COVER,LICENSE LAMP
3591738A20
€ 121.50
14-2
3591738E00
rif: 14-2
E17
COVER
€ 70.50
15
3591238A20
rif: 15
LENS
3591238A20
€ 13.50
16
3591338A30
rif: 16
GASKET,LICENSE LAMP (NAS)
3591338A30
€ 2.00
17-1
3591538A31
rif: 17-1
HOUSING,LICENSE LAMP
3591538A31
€ 45.00
17-2
3591538E00
rif: 17-2
E17
HOUSING, LICENSE LAMP
€ 38.50
18
3576638A30
rif: 18
SPACER
3576638A30
€ 2.00
19
0832101043
rif: 19
WASHER,LOCK
0832101043
€ 1.50
20
0831000047
rif: 20
NUT
0831000047
€ 1.50
21
0947112140
rif: 21
BULB(12V5W,BF150-40160A)
€ 4.00
22
0911606093
rif: 22
BOLT(6X25)
0911606093
€ 2.00
23
0940406429
rif: 23
CLAMP(L:45)
€ 2.00
24
3595043431
rif: 24
E18
REFLEX REFLECTOR,FR SIDE
3595043431
€ 12.50
25-1
3597438A20
rif: 25-1
E18
BRACKET,RR SIDE RR,L
€ 10.50
25-2
3597538A20
rif: 25-2
E18
BRACKET,RR SIDE RR,R
€ 10.50
26
0831000053
rif: 26
E18
NUT
€ 2.00
27-1
0211206083
rif: 27-1
E18
SCREW
0211206083
€ 1.50
27-2
0211206123
rif: 27-2
E18
SCREW
0211206123
€ 1.50
28
0916006031
rif: 28
E18
WASHER (6.3X14X1.6)
€ 1.50
29
3597024D60
rif: 29
REFLECTOR ASSY,RR
3597024D60
€ 20.50
30
3597738B30
rif: 30
SPACER,RR REFLECTOR
3597738B30
€ 3.50
31
6826238A00
rif: 31
TAPE,TOOL BAG PROTECTOR
6826238A00
€ 3.50
32
0831000053
rif: 32
NUT
€ 2.00
