rif
parte #
descrizione
quantità
1-1

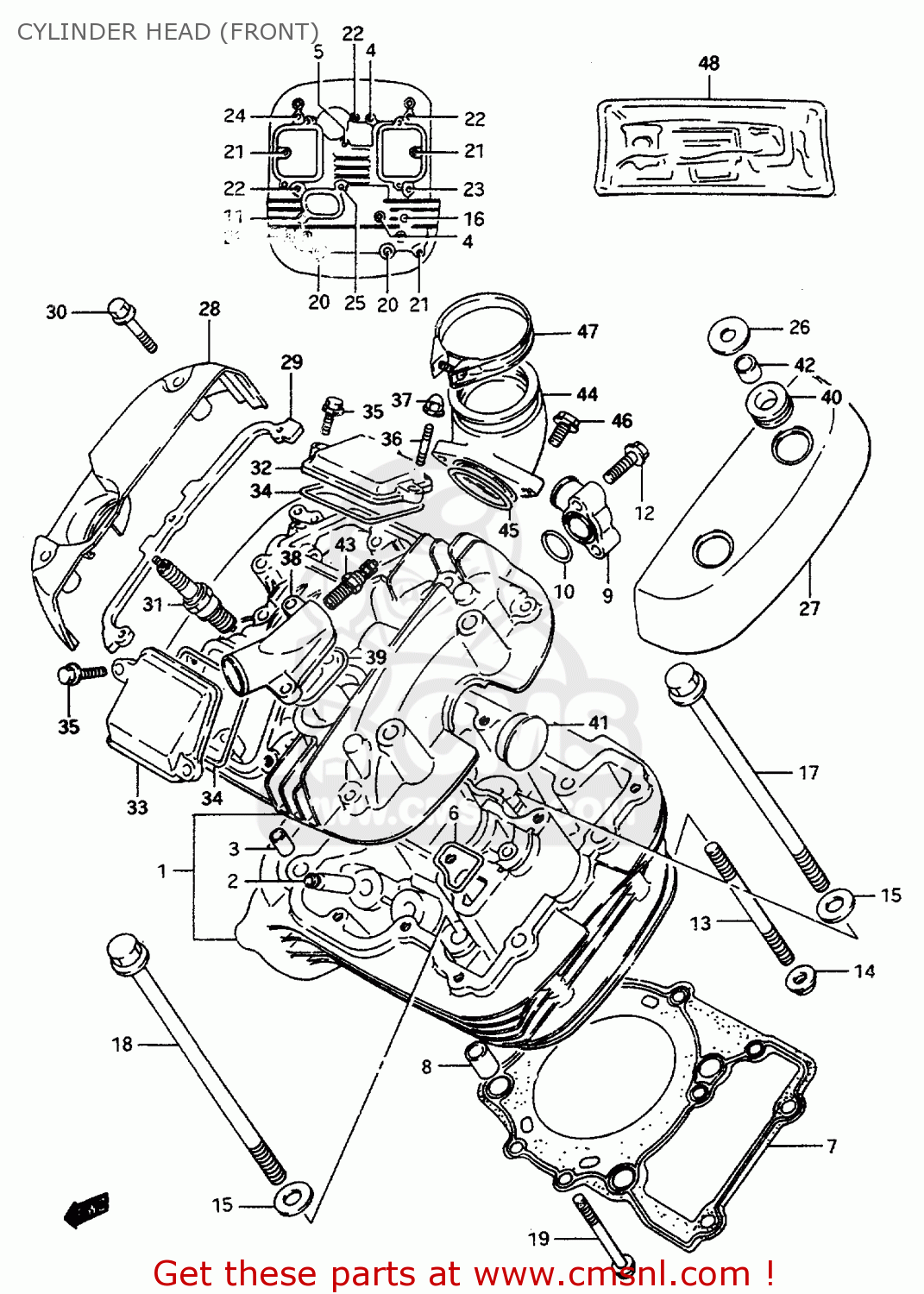

HEAD ASSEMBLY,CYLINDER,FRONT
1-2
HEAD ASSY, CYLINDER FRONT
2
GUIDE,VALVE
3
PIN(8.4X11X14)
4
BOLT(6X50)
5
BOLT(6X55)
6
GASKET,CYLINDER HEAD WATER (NAS)
7
GASKET,CYLINDER HEAD FR (MCA)
8
PIN
9
UNION,CYLINDER HEAD WATER
10
O RING(D:2.4,ID:17.8)
11
BOLT
12-1
BOLT
12-2
SCREW
13
BOLT,STUD
14
NUT
15
WASHER (10.5X22X2.3)
16
BOLT(8X140)
17
BOLT(10X155)
18
BOLT(10X165)
19
BOLT
20
BOLT(8X245)
21
BOLT
22
BOLT
23
BOLT
24
BOLT
25
BOLT(6X55)
27
CAP,CYLINDER HEAD COVER FR,L
28
CAP,CYLINDER HEAD COVER FR,R
29
CUSHION,FR,R CAP
31-1
PLUG,SPARK(DPR8EA-9)
31-2
SPARK PLUG X24EPR-U9
31-3
PLUG,SPARK(DPR7EA-9)
31-4
SPARK PLUG X22EPR-U9
31-5
PLUG,SPARK(DPR9EA-9)
31-6
SPARK PLUG X27EPR-U9
32
CAP,INSP.INT
33
CAP,INSPECTION,EXHAUST
34
GASKET,INSPECTION CAP (NAS)
35
BOLT
36
STUD 6X16
37
NUT
38
UNION,WATER OUTLET
39
GASKET,WATER OUTLET UNION (NAS)
40
CUSHION
41
PLUG(OD:30)
42
BUSH
43
GAUGE ASSY,WATER TEMP
44-2
PIPE COMP,INTAKE,FRONT
44-3
PIPE,INTAKE FR
45
O-RING (D:2.4 ID:39.7)
46
BOLT
47
CLAMP
