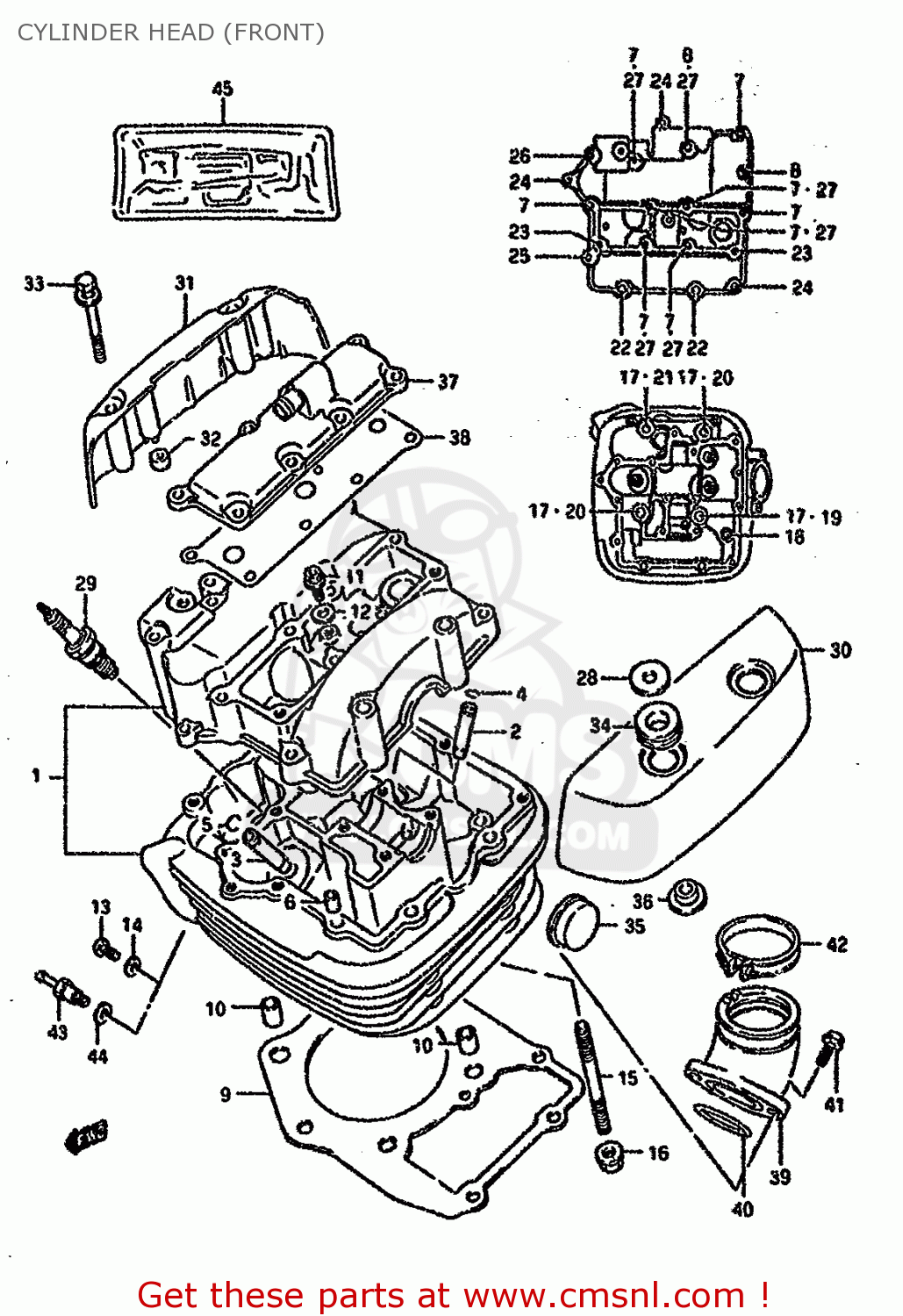

CYLINDER HEAD (FRONT)
Cylinder head (front) diagramma
VS1400GLP 1990 (L) (E01 E04 E17 E21 E22 E39)
CYLINDER HEAD (FRONT) VS1400GLP 1990 (L) (E01 E04 E17 E21 E22 E39)
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1-1
HEAD ASSEMBLY,CYLINDER,FRONT
1-2
HEAD ASSEMBLY,CYLINDER,FRONT
1-3
HEAD ASSEMBLY,CYLINDER,FRONT
2
GUIDE,INTAKE VALVE
3
GUIDE,INTAKE VALVE
4
RING,SNAP
5
RING,SNAP
6
PIN(6.2X8X11)
7-2
BOLT(6X60)
8
BOLT(6X55)
9
GASKET,CYLINDER HEAD FR (NAS)
10-1
PIN
10-2
PIN
11-2
BOLT
12
GASKET(6.2X13X1.2) (NAS)
13
SCREW
14
GASKET(5.3X9.3X1.2) (NAS)
15
BOLT,STUD
16
NUT
17
WASHER(10.5X22X2.3)
18
BOLT(8X70)
19
BOLT(10X180)
20
BOLT(10X190)
21
BOLT(10X200)
22
BOLT(8X268)
23
BOLT
24
BOLT
25
BOLT
26
BOLT
27
GASKET(5.8X13X1.2) (NAS)
29-1
PLUG,SPARK(DPR8EA-9)
29-2
SPARK PLUG X24EPR-U9
29-5
SPARK PLUG DP9EA-9
29-7
PLUG,SPARK(DPR7EA-9)
29-8
SPARK PLUG X22EPR-U9
29-9
PLUG,SPARK(DPR9EA-9)
29-10
SPARK PLUG X27EPR-U9
30
CAP,CYLINDER HEAD COVER FL
31
CAP,CYLINDER HEAD COVER FR
32
CUSHION,R CAP
34
CUSHION
35
PLUG(OD:30)
36
BUSH
38
GASKET,BREATHER COVER (NAS)
39
PIPE ASSEMBLY,INTAKE,FRONT
40
O RING(D:2.4,ID:41.7)
41-2
BOLT
42-2
CLAMP
43
BOLT UNION
44
GASKET(6.2X13X1.2) (NAS)
