CRANKSHAFT

VS1400GLP 1990 (L) (E01 E04 E17 E21 E22 E39)

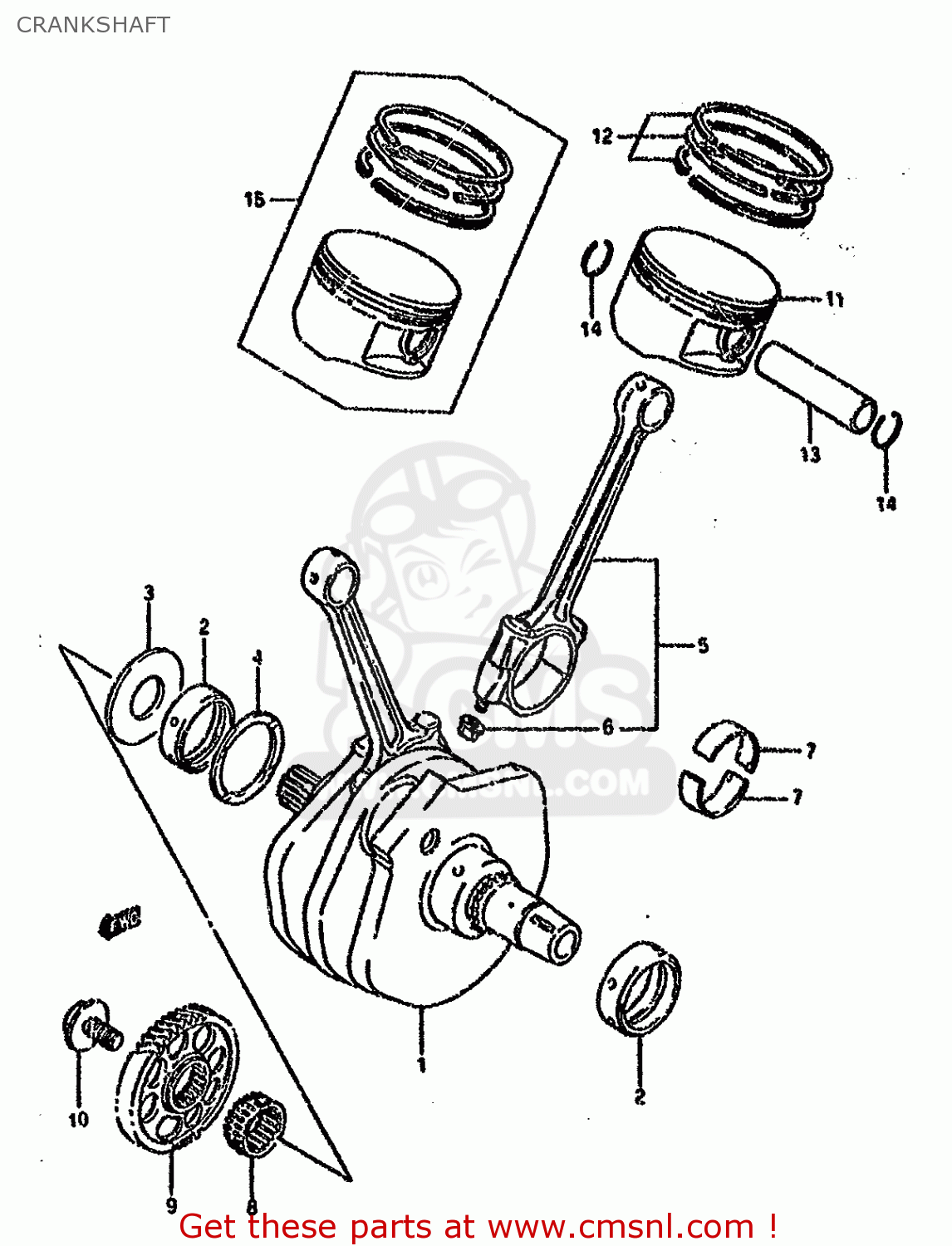

Crankshaft diagramma VS1400GLP 1990 (L) (E01 E04 E17 E21 E22 E39)

CRANKSHAFT VS1400GLP 1990 (L) (E01 E04 E17 E21 E22 E39)
CRANKSHAFT VS1400GLP 1990 (L) (E01 E04 E17 E21 E22 E39)
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
1200038820
rif: 1
-12220-38880
CRANKSHAFT SET
€ 1,339.50
2
1222938B00
rif: 2
INCLUDED. CRANKCASE
METAL,CRANKSHAFT
1222938B00
€ 26.00
3
1265238B00
rif: 3
WASHER,CRANK THRUST
1265238B00
€ 51.00
4-1
1222838B000A0
rif: 4-1
PLATE,CRANK THRUST
€ 17.50
4-2
1222838B000B0
rif: 4-2
PLATE,CRANK THRUST
€ 15.50
4-3
1222838B000C0
rif: 4-3
PLATE,CRANK THRUST
€ 16.00
4-4
1222838B000D0
rif: 4-4
PLATE,CRANK THRUST
€ 17.50
4-5
1222838B000F0
rif: 4-5
PLATE,CRANK THRUST
€ 22.50
4-6
1222838B000F0
rif: 4-6
PLATE,CRANK THRUST
€ 22.50
4-7
1222838B000G0
rif: 4-7
PLATE,CRANK THRUST
€ 15.50
4-8
1222838B000H0
rif: 4-8
PLATE,CRANK THRUST
€ 15.50
4-9
1222838B000I0
rif: 4-9
PLATE,CRANK THRUST
€ 15.50
4-10
1222838B000J0
rif: 4-10
PLATE,CRANK THRUST
1222838B000J0
€ 15.50
5
1216038B00
rif: 5
CONNECTING ROD ASSY
1216038B00
€ 191.50
6
0915909001
rif: 6
NUT
0915909001
€ 4.50
7-1
1216438B010A0
rif: 7-1
METAL,CRANK PIN
1216438B010A0
€ 12.00
7-2
1216438B010B0
rif: 7-2
METAL,CRANK PIN
1216438B010B0
€ 12.00
7-3
1216438B010C0
rif: 7-3
METAL,CRANK PIN
1216438B010C0
€ 12.00
7-4
1216438B010D0
rif: 7-4
METAL,CRANK PIN
1216438B010D0
€ 12.00
7-5
1216438B010E0
rif: 7-5
METAL,CRANK PIN
1216438B010E0
€ 8.50
8
1273138B00
rif: 8
SPROCKET,CAM CHAIN DRIVE,R
€ 54.50
9
2111138B00
rif: 9
GEAR,PRIMARY DRIVE
2111138B00
€ 96.00
10
0910314010
rif: 10
BOLT(14X28)
0910314010
€ 15.00
11
1211138B03
rif: 11
PISTON (94.00MM)
1211138B03
€ 103.00
12
1214038B30
rif: 12
RING SET,PISTON
1214038B30
€ 59.50
13
1215124B00
rif: 13
PIN,PISTON
1215124B00
€ 21.00
14
0938123003
rif: 14
CIRCLIP
0938123003
€ 1.50
15-1
1210038B00050
rif: 15-1
OPT
PISTON SET(OS:0.5)
1210038B00050
€ 122.00
15-2
1210038B00100
rif: 15-2
OPT
PISTON SET (OS:1.0)
€ 130.50
