FOOTREST

GSX250E 1983 (D) GENERAL EXPORT (E01)

Footrest diagramma GSX250E 1983 (D) GENERAL EXPORT (E01)

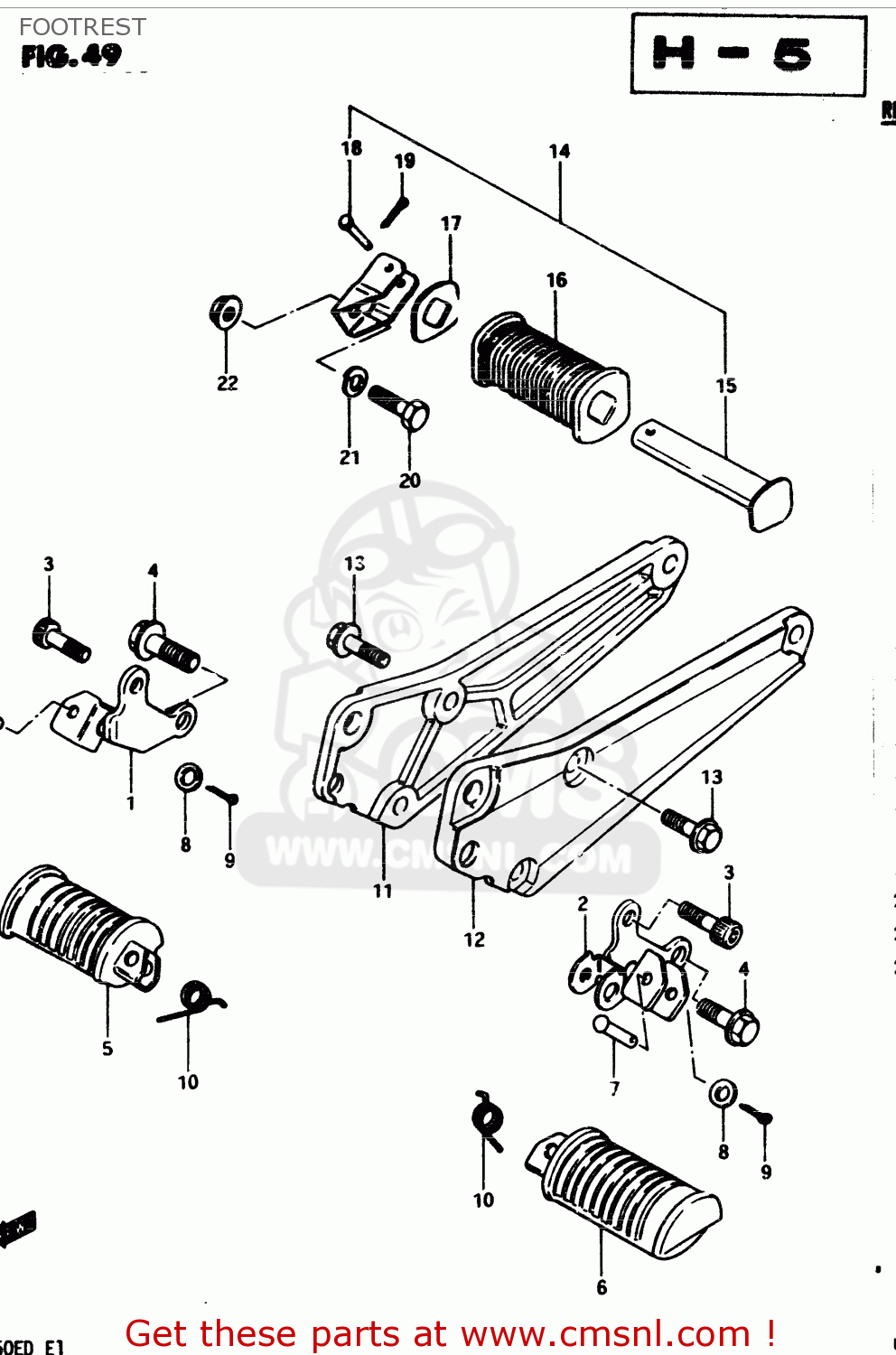

FOOTREST GSX250E 1983 (D) GENERAL EXPORT (E01)

i prezzi sono in EUR

rif

parte #

descrizione

quantità

1-1

4351044400
rif: 1-1
MODEL Z

BAR,FRONT FOOTREST

€ 47.00

1-2

4351044402
rif: 1-2
MODEL D

BAR,FR FOOTREST,R

€ 47.00

2-1

4352011500
rif: 2-1
MODEL Z

BAR, FOOTREST LH

€ 69.00

2-2

4352011502
rif: 2-2
MODEL D

BAR,FR FOOTREST,L

€ 69.00

3

0910608017
rif: 3

BOLT

€ 3.00

4

0152710258
rif: 4

BOLT

€ 3.00

5

4355049002
rif: 5

RUBBER,FRONT FOOTREST

€ 22.50

6

4356049002
rif: 6

FOOTREST

€ 22.50

7

0920008002
rif: 7

PIN

€ 1.50

8

0832211088
rif: 8

WASHER

€ 1.50

9

0411120208
rif: 9

PIN 20X20

€ 1.00

10

0944814012
rif: 10

SPRING

€ 3.00

11

4381144110
rif: 11

BRACKET,MUFFLER,RIGHT

€ 102.00

12

4382144110
rif: 12

BRACKET,MUFFLER,LEFT

€ 120.00

13

0151710258
rif: 13

BOLT

€ 3.00

14-1

4360034500
rif: 14-1

FOOTREST ASSY,PILLION,R

€ 118.00

14-2

4370034500
rif: 14-2

FOOTREST ASSY,PILLION,L

€ 107.50

15-1

4361049201
rif: 15-1

BAR,REAR FOOTREST,RIGHT

€ 8.00

15-2

4362049201
rif: 15-2

BAR,REAR FOOTREST,LEFT

€ 22.00

16

4361249201
rif: 16

RUBBER,PILLION FOOTREST

€ 29.00

17

4363149201
rif: 17

WASHER,FOOTREST RUBBER

€ 16.00

18

0920006010
rif: 18

PIN

€ 2.00

19

0411120208
rif: 19

PIN 20X20

€ 1.00

20

0110710358
rif: 20

BOLT,M10X1.25X

€ 2.50

21

0832121108
rif: 21

LOCK WASHER

€ 1.50

22

0831616108
rif: 22

NUT

€ 2.00
