CYLINDER HEAD

GSX250E 1983 (D) GENERAL EXPORT (E01)

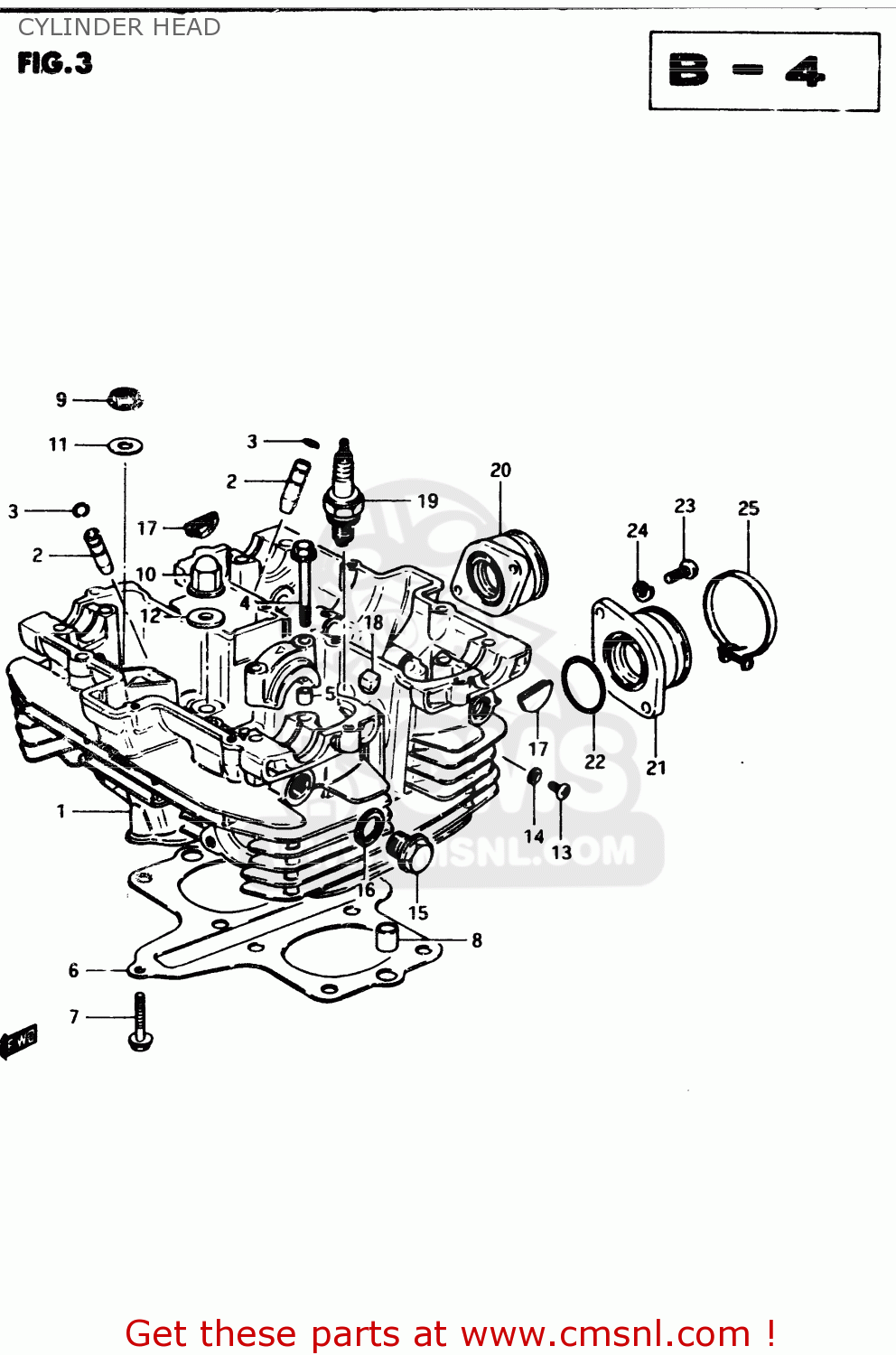

Cylinder head diagramma GSX250E 1983 (D) GENERAL EXPORT (E01)

CYLINDER HEAD GSX250E 1983 (D) GENERAL EXPORT (E01)

i prezzi sono in EUR

rif

parte #

descrizione

quantità

1-1

1110011420
rif: 1-1
MODEL Z

HEAD ASSEMBLY,CYLINDER

€ 453.50

1-2

1110011450
rif: 1-2
MODEL D

HEAD ASSEMBLY,CYLINDER

€ 453.50

2

1111511470
rif: 2

GUIDE,INTAKE VALVE

€ 15.00

3

0938110004
rif: 3

RING,SNAP

€ 1.00

4

0910306026
rif: 4

BOLT(6X39)

€ 1.50

5

0920608001
rif: 5

PIN(6.2X8X11)

€ 1.50

6

1114111401
rif: 6

GASKET,CYLINDER HEAD (MCA)

€ 48.00

7-1

0151706308
rif: 7-1
MODEL Z

BOLT

€ 2.00

7-2

0151706305
rif: 7-2
MODEL D

BOLT 6X30

€ 2.00

8

0421111189
rif: 8

PIN

€ 1.50

9

0915908031
rif: 9

NUT

€ 1.50

10

0915908029
rif: 10

NUT

€ 6.00

11

0916008039
rif: 11

WASHER(8.5X19X2.3)

€ 2.00

12

0916808013
rif: 12

GASKET(8.5X20X2.3) (NAS)

€ 4.50

13

0211205088
rif: 13

SCREW

€ 1.50

14

0916805010
rif: 14

GASKET(5.3X9.3X1.2) (NAS)

€ 2.00

15

0924714012
rif: 15

PLUG (14X12)

€ 3.00

16

0916814004
rif: 16

GASKET(14X19.2X2) (NAS)

€ 2.00

17

0924123002
rif: 17

PLUG

€ 6.50

18

1115145000
rif: 18

PAD,CYLINDER HEAD

€ 3.00

19-1

0948200184
rif: 19-1

SPARK PLUG D9EA

€ 9.50

19-2

0948200185
rif: 19-2

SPARK PLUG X27ES-U

€ 0.00

19-3

0948200221
rif: 19-3
E2,E4,E6,E17,E18,E21

PLUG,SPARK(DR8ES)

€ 5.50

19-4

0948200224
rif: 19-4
E2,E4,E6,E17,E18,E21

PLUG,SPARK(X27ESR-U)

€ 9.50

20

1311011400
rif: 20

PIPE,INTAKE,R

€ 31.50

21

1312011400
rif: 21

PIPE,INTAKE,L

€ 30.00

22

0928030004
rif: 22

O-RING (D:2.4 ID:29.7)

€ 10.50

23-1

0211206208
rif: 23-1
MODEL Z

SCREW

€ 1.50

23-2

0211206205
rif: 23-2
MODEL D

SCREW

€ 2.00

24-1

0832121068
rif: 24-1
MODEL Z

LOCK WASHER

€ 1.50

24-2

0832121065
rif: 24-2
MODEL D

LOCK WASHER

€ 1.50

25

0940248306
rif: 25

CLAMP

€ 3.50
