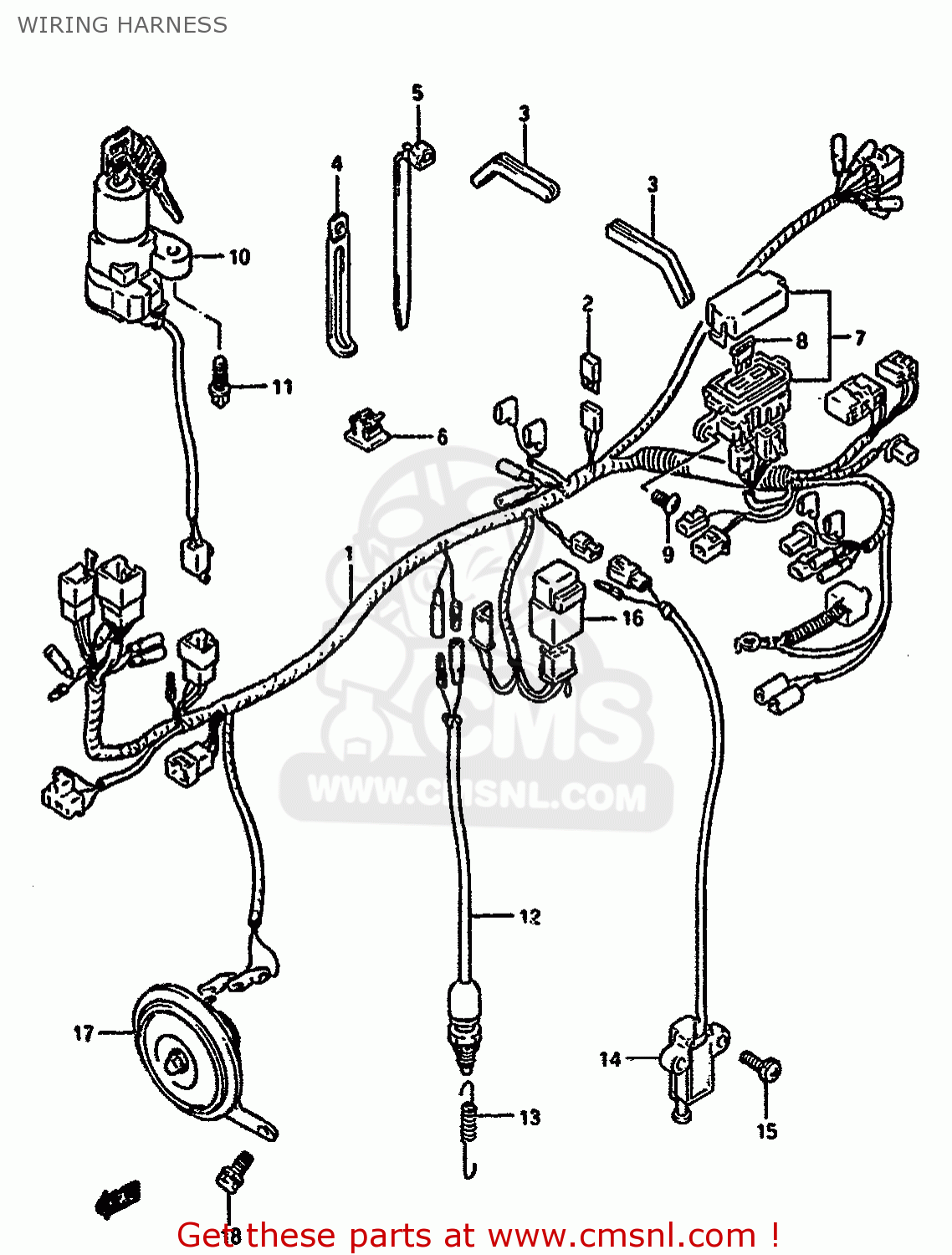

WIRING HARNESS

GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

Wiring harness diagramma GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

WIRING HARNESS GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)
WIRING HARNESS GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1-1
3661026D20
rif: 1-1
MODEL M/N/P
HARNESS,WIRING
€ 250.50
1-2
3661026D60
rif: 1-2
MODEL R
HARNESS,WIRING
€ 0.00
2
3661138A00
rif: 2
DIODE(STANLEY DE8804)
3661138A00
€ 11.50
3
3692026D00
rif: 3
PROTECTOR,WIRING HARNESS
€ 2.50
4-1
0940406404
rif: 4-1
CLAMP
0940406404
€ 3.00
4-2
0940408404
rif: 4-2
CLAMP
€ 3.00
5-1
0940714403
rif: 5-1
CLAMP(L:125)
0940714403
€ 2.50
5-2
0940718402
rif: 5-2
CLAMP(L:165)
0940718402
€ 2.00
5-3
0940722404
rif: 5-3
CLAMP
0940722404
€ 2.50
6
0940800098
rif: 6
CLAMP
€ 5.00
7
3674034C01
rif: 7
BOX ASSEMBLY,FUSE
3674034C01
€ 55.50
8-1
0948110101
rif: 8-1
FUSE(10A)
0948110101
€ 1.50
8-2
0948125101
rif: 8-2
FUSE (25A)
0948125101
€ 2.50
9
0214206123
rif: 9
SCREW 6X12
0214206123
€ 1.50
10-1
3710026D00
rif: 10-1
MODEL M/N
LOCK ASSEMBLY,STEERING
€ 137.00
10-2
3710026D02
rif: 10-2
MODEL P/R 37100-26D0
LOCK ASSEMBLY,STEERING
3710026D02
€ 137.00
11
0913906026
rif: 11
SCREW(6X18)
0913906026
€ 2.50
12-1
3774004A10
rif: 12-1
MODEL M/N/P
SWITCH ASSY,STOP LAMP
3774004A10
€ 20.50
12-2
3774045D00
rif: 12-2
MODEL R
SWITCH ASSY,STOP LAMP
3774045D00
€ 20.00
13
0944306012
rif: 13
SPRING
0944306012
€ 3.00
14-1
3784006B11
rif: 14-1
MODEL M/N/P
SWITCH ASSEMBLY,SIDE STAND
€ 92.00
14-2
3784026D00
rif: 14-2
MODEL R
SWITCH ASSY,SI
€ 92.00
15-1
0211236305
rif: 15-1
MODEL M/N/P
SCREW
€ 2.50
15-2
0211236303
rif: 15-2
MODEL R
SCREW
€ 2.50
16
3874024X50
rif: 16
38740-24B10
RELAY ASSY
3874024X50
€ 33.50
17
3850026D00
rif: 17
HORN ASSEMBLY
€ 35.50
18-1
0113406125
rif: 18-1
MODEL M/N/P
BOLT ,6X12
€ 1.50
18-2
0157006123
rif: 18-2
MODEL R
BOLT
0157006123
€ 1.50
