FUEL TANK

GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

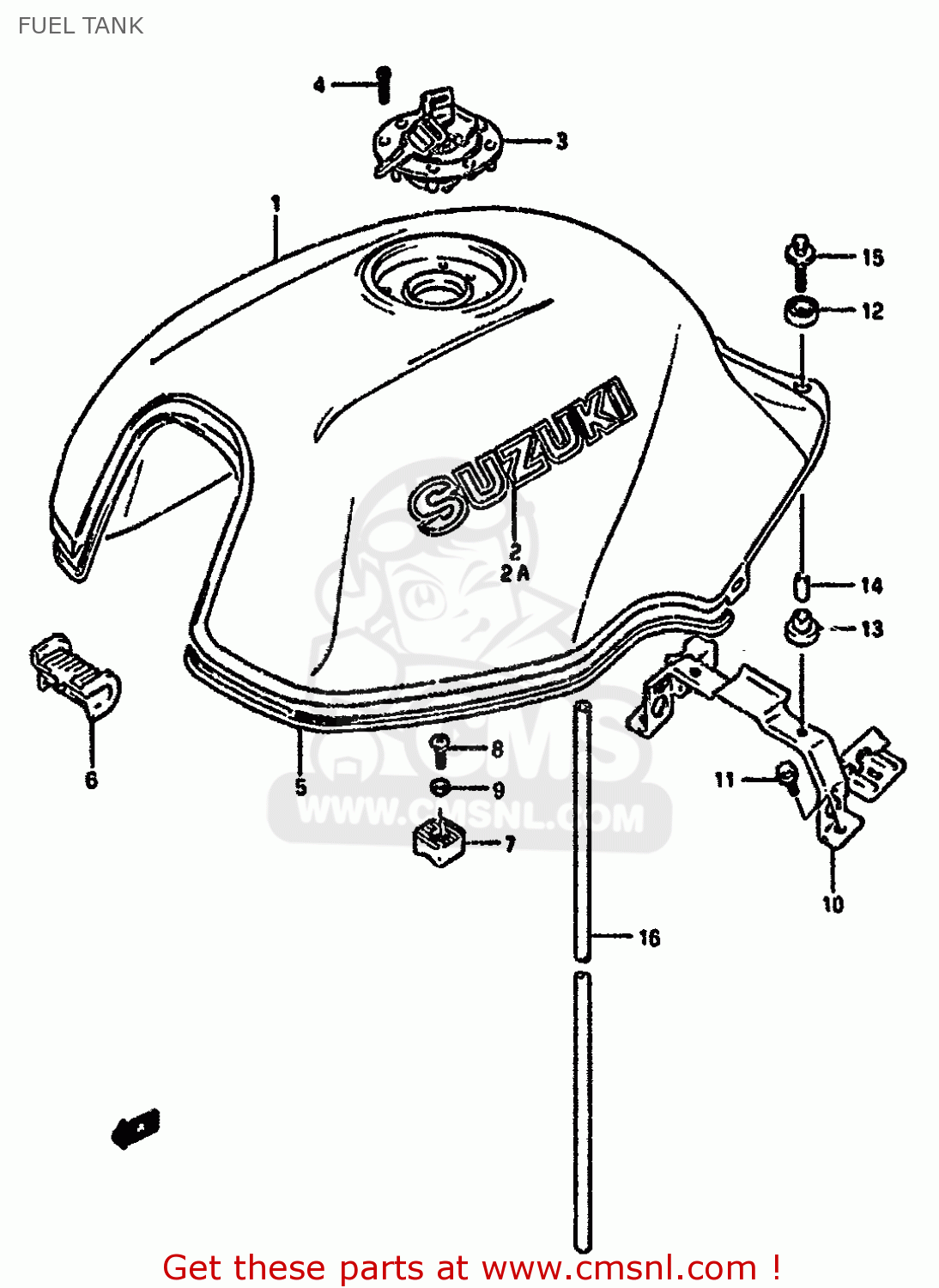

Fuel tank diagramma GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

FUEL TANK GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)
FUEL TANK GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1-1
4410026D0020F
rif: 1-1
44100-26D11-20F
TANK ASSEMBLY,FUEL
€ 1,088.50
1-2
4410026D1120F
rif: 1-2
E22 44100-26D10-20F
TANK ASSEMBLY,FUEL
4410026D1120F
€ 1,088.50
1-3
4410026D000FJ
rif: 1-3
MODEL M
TANK ASSEMBLY,FUEL
€ 462.00
1-4
4410026D100FJ
rif: 1-4
MODEL M E22
TANK ASSEMBLY,FUEL
€ 462.00
1-5
4410026D001AC
rif: 1-5
MODEL M/N
TANK ASSEMBLY,FUEL
€ 575.50
1-6
4410026D101AC
rif: 1-6
E22
TANK ASSY,FUEL (GRAY)
€ 575.50
1-7
4410026D0033J
rif: 1-7
MODEL M
TANK ASSEMBLY,FUEL
€ 462.00
1-8
4410026D0013Z
rif: 1-8
MODEL N/P
TANK ASSY FUEL
€ 595.00
1-9
4410026D411HU
rif: 1-9
MODEL R
TANK ASSY,FUEL (PURPLE)
€ 0.00
1-10
4410026D4133J
rif: 1-10
MODEL R
TANK ASSY,FUEL (BLACK)
€ 0.00
1-11
4410026D1033J
rif: 1-11
MODEL M E22
TANK ASSY,FUEL (BLACK)
€ 462.00
1-12
4410026D1013Z
rif: 1-12
MODEL N E22
TANK ASSY,FUEL (BLACK)
€ 595.00
1-13
4410026D511HU
rif: 1-13
MODEL R E22
TANK ASSY,FUEL (PURPLE)
€ 0.00
1-14
4410026D5133J
rif: 1-14
MODEL R E22
TANK ASSY,FUEL (BLACK)
€ 927.50
2-1
6813106C5023S
rif: 2-1
FOR 20F,0FJ,33J,13Z
EMBLEM
€ 18.00
2-2
6813106C5020H
rif: 2-2
FOR 1AC
EMBLEM,FUEL TANK(SILVER)
6813106C5020H
€ 21.00
2A
6811124D000RN
rif: 2A
MODEL R
EMBLEM,FUEL TANK
6811124D000RN
€ 20.00
3
4420101831
rif: 3
CAP SET,FUEL TANK
4420101831
€ 204.00
4
0910605017
rif: 4
BOLT(5X20)
0910605017
€ 2.00
5
6824126D00
rif: 5
MOLDING,FUEL TANK
€ 16.00
6
4451132C00
rif: 6
CUSHION,FUEL TANK,FRONT
€ 14.00
7
4454526D00
rif: 7
CUSHION,FUEL TANK SIDE
€ 7.00
8-1
0214206166
rif: 8-1
MODEL M/N/P
SCREW
€ 2.00
8-2
0214206163
rif: 8-2
MODEL R
SCREW
0214206163
€ 2.00
9
0916906036
rif: 9
WASHER
0916906036
€ 2.50
10
4453026D00
rif: 10
BRACKET COMP,FUEL TANK
€ 31.00
11-1
0151706164
rif: 11-1
MODEL M/N/P
BOLT
€ 2.50
11-2
0155006163
rif: 11-2
MODEL R
BOLT
0155006163
€ 2.50
12
0932014017
rif: 12
CUSHION
0932014017
€ 2.00
13
0932010038
rif: 13
CUSHION
0932010038
€ 3.00
14
0918006072
rif: 14
SPACER
0918006072
€ 1.50
15
0911606097
rif: 15
BOLT(6X35)
0911606097
€ 2.50
16
0935270103600
rif: 16
HOSE(7X10.2X600)
0935270103600
€ 6.00
