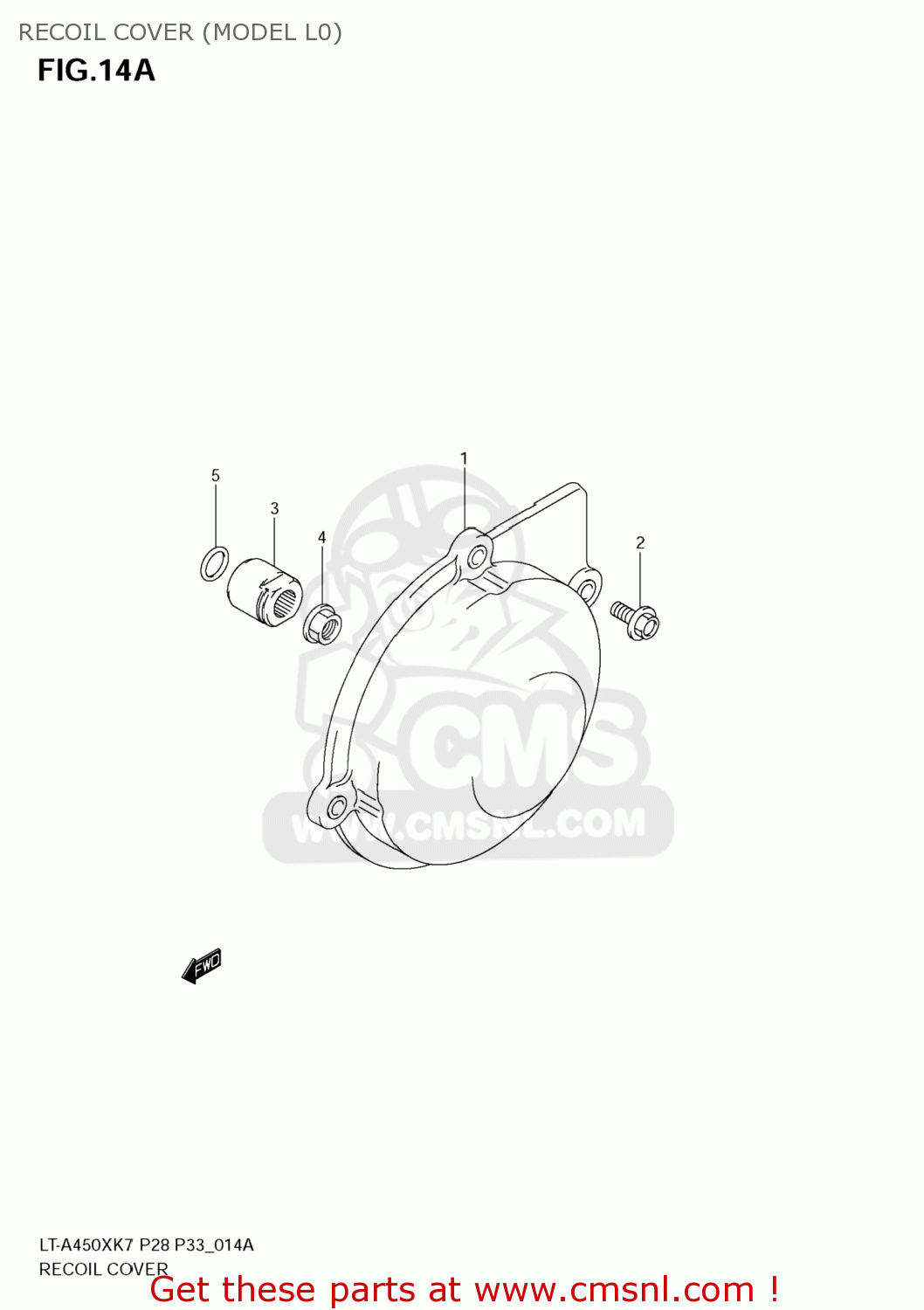

RECOIL COVER (MODEL L0)

LT-A450X KING QUAD 2007 (K7) USA (E03) KINGQUAD KING-QUAD

Recoil cover (model l0) diagramma LT-A450X KING QUAD 2007 (K7) USA (E03) KINGQUAD KING-QUAD

RECOIL COVER (MODEL L0) LT-A450X KING QUAD 2007 (K7) USA (E03) KINGQUAD KING-QUAD

i prezzi sono in EUR

rif

parte #

descrizione

quantità

1

1811031G00
rif: 1

COVER,RECOIL

€ 17.00

2

0910306302
rif: 2

BOLT(6X14)

€ 2.50

3

1235931G00
rif: 3

SPACER,CRANKSHAFT,L

€ 32.00

4

083161010B
rif: 4

NUT

€ 2.00

5

0928012009
rif: 5

O RING(D:1.9,ID:12.6)

€ 2.50
