HEADLAMP

LT-A450X KING QUAD 2007 (K7) USA (E03) KINGQUAD KING-QUAD

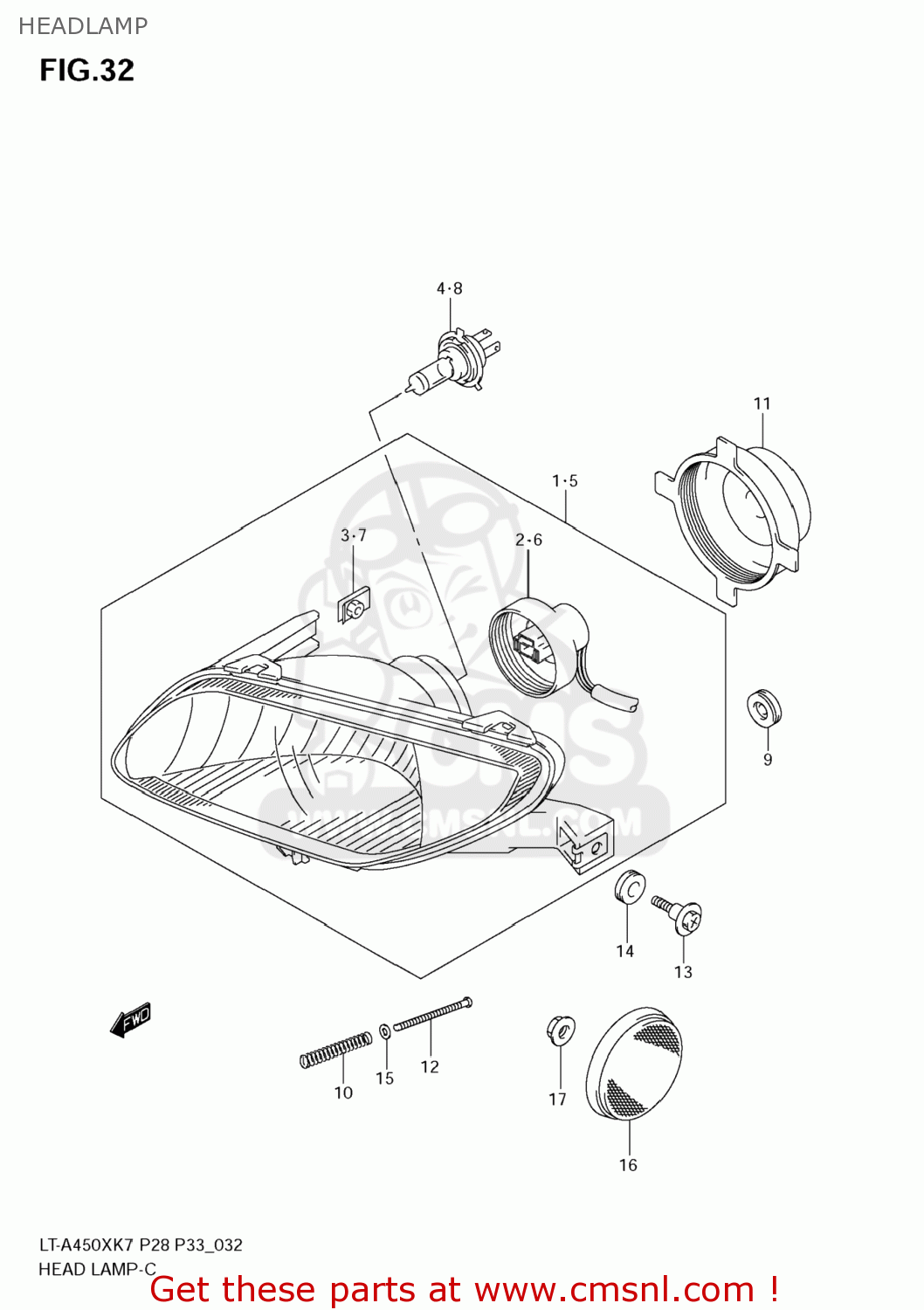

Headlamp diagramma LT-A450X KING QUAD 2007 (K7) USA (E03) KINGQUAD KING-QUAD

HEADLAMP LT-A450X KING QUAD 2007 (K7) USA (E03) KINGQUAD KING-QUAD
HEADLAMP LT-A450X KING QUAD 2007 (K7) USA (E03) KINGQUAD KING-QUAD
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
3510031G90999
rif: 1
HEADLAMP ASSY,R
€ 125.50
2
3517131GM1
rif: 2
CORD ASSY,R
€ 43.00
3
3515731G90
rif: 3
NUT
€ 6.50
4
0947112225
rif: 4
09471-12101
BULB(12V35/35W,HS1)
€ 9.50
5
3530031G90999
rif: 5
35300-31G92-999
HEADLAMP ASSY,L
3530031G90999
€ 240.00
6
3517131GH1
rif: 6
CORD ASSY,L
3517131GH1
€ 27.50
7
3515731G90
rif: 7
NUT
€ 6.50
8
0947112225
rif: 8
09471-12101
BULB(12V35/35W,HS1)
€ 9.50
9
0930807011
rif: 9
GROMMET
0930807011
€ 3.50
10
3515431300
rif: 10
SPRING
3515431300
€ 2.50
11
3517431G00
rif: 11
COVER,HEADLAMP HSG
€ 8.00
12
0912504031
rif: 12
SCREW(4X50)
€ 2.50
13
0913906118
rif: 13
SCREW(6X22.5)
0913906118
€ 3.00
14
0932010501
rif: 14
CUSHION
0932010501
€ 4.00
15
083220104A
rif: 15
WASHER
083220104A
€ 1.50
16
3595014A10
rif: 16
35950-14A11
REFLECTOR,REFLEX
3595014A10
€ 12.50
17
083161005B
rif: 17
NUT
083161005B
€ 2.50
