Frame

KVF650-DAF BRUTE FORCE 650 4X4 2010 USA

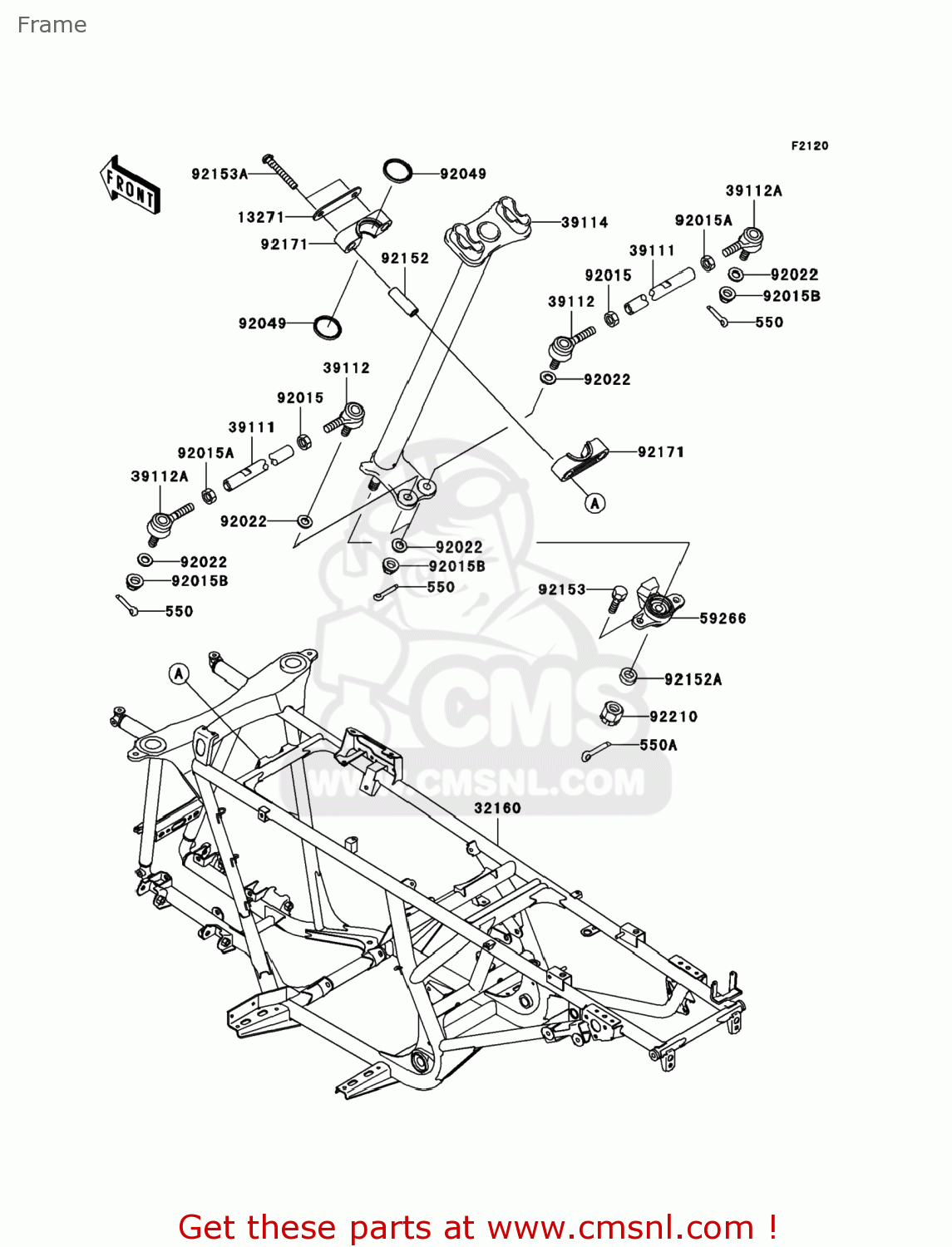

Frame diagramma KVF650-DAF BRUTE FORCE 650 4X4 2010 USA

Frame KVF650-DAF BRUTE FORCE 650 4X4 2010 USA
Frame KVF650-DAF BRUTE FORCE 650 4X4 2010 USA
i prezzi sono in EUR
rif
parte #
descrizione
quantità
13271
132710419
rif: 13271
PLATE,STEERING
€ 1.50
32160
321600002
rif: 32160
FRAME-COMP
€ 1,452.50
39111
391111090
rif: 39111
ROD-TIE
391111090
€ 16.00
39112
391121083
rif: 39112
RODEND-TIE
391121083
€ 65.00
39112A
391121085
rif: 39112A
RODEND-TIE
391121085
€ 65.00
39114
391140007
rif: 39114
SHAFT-COMP-STRG
€ 292.50
550
550AA2015
rif: 550
PIN-COTTER,2.0X15
550AA2015
€ 1.00
550A
550AA3025
rif: 550A
PIN-COTTER,3.0X25
550AA3025
€ 0.50
59266
592661125
rif: 59266
JOINT-BALL
592661125
€ 120.50
92015
920151460
rif: 92015
NUT,LOCK,10MM
920151460
€ 3.50
92015A
920151494
rif: 92015A
NUT,LOCK,10MM
920151494
€ 4.00
92015B
920151717
rif: 92015B
NUT,LOCK,FLANGED,10MM
920151717
€ 6.00
92022
920223742
rif: 92022
WASHER
920223742
€ 2.50
92049
920497501
rif: 92049
SEAL-OIL,SR31.8X37.5X
920497501
€ 3.00
92152
921520230
rif: 92152
COLLAR,9.1X13.95X44
€ 18.00
92152A
921521351
rif: 92152A
COLLAR,12X21.3X7
921521351
€ 8.00
92153
921531065
rif: 92153
BOLT
€ 1.50
92153A
921531324
rif: 92153A
BOLT,SOCKET,8X55
€ 5.00
92171
921710399
rif: 92171
CLAMP,STEERING
921710399
€ 5.00
92210
922107501
rif: 92210
NUT,12MM
922107501
€ 2.50
