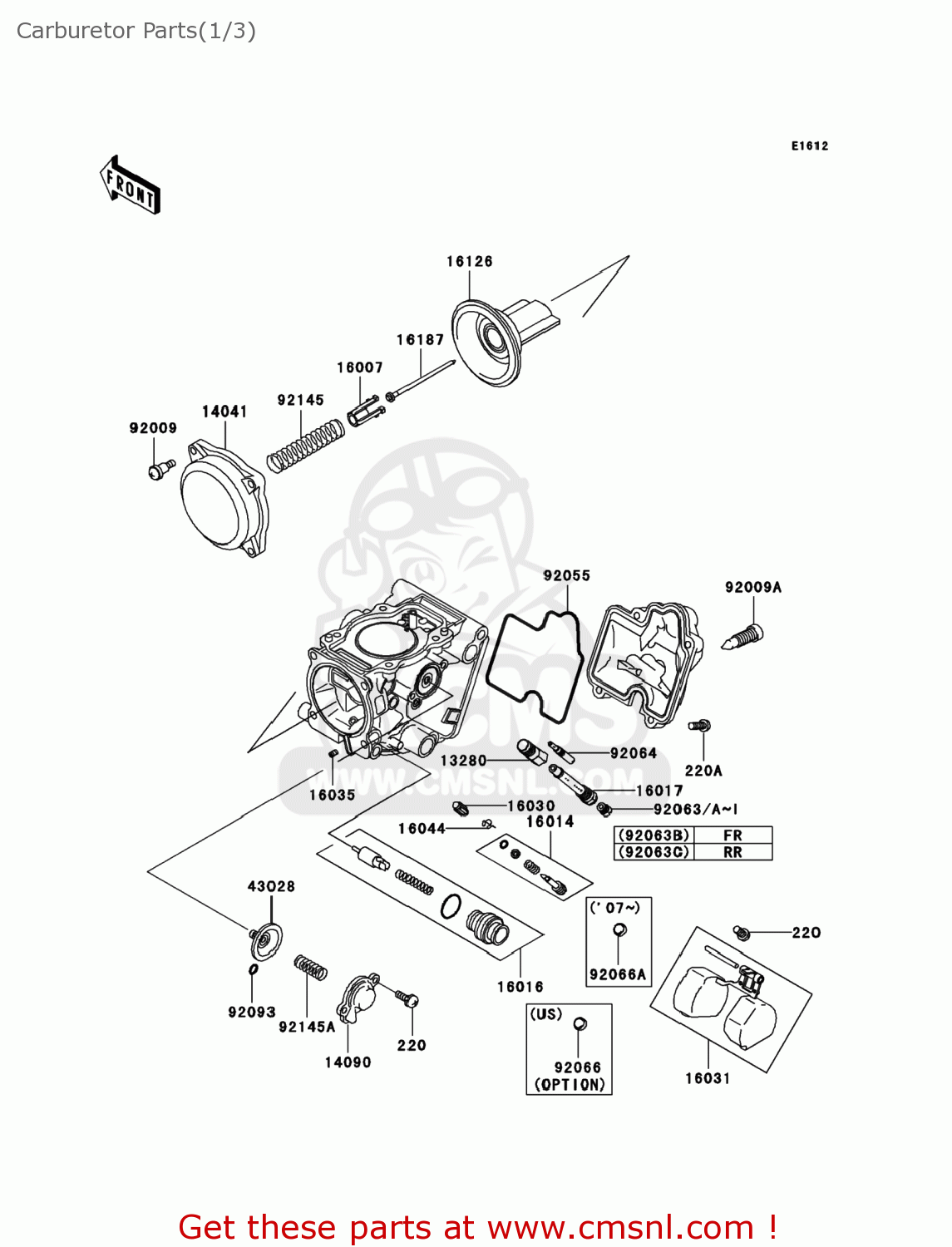

Carburetor Parts(1/3)

KVF650-DAF BRUTE FORCE 650 4X4 2010 USA

Carburetor parts(1/3) diagramma KVF650-DAF BRUTE FORCE 650 4X4 2010 USA

i prezzi sono in EUR

rif

parte #

descrizione

quantità

13280

132801096
rif: 13280

HOLDER,JET

€ 18.00

14041

140411090
rif: 14041

CAP-CHAMBER,MIXING

€ 42.50

14090

140901984
rif: 14090

COVER,AIR CUT VALVE

€ 16.50

16007

160071120
rif: 16007

SEAT-SPRING

€ 15.50

16014

160141105
rif: 16014

SCREW-PILOT AIR

€ 15.00

16016

160161117
rif: 16016

PLUNGER

€ 41.50

16017

160171441
rif: 16017

JET-NEEDLE

€ 33.00

16030

160301007
rif: 16030

FLOAT VALVE ASSY

€ 34.00

16031

160311097
rif: 16031

FLOAT

€ 41.50

16035

160351055
rif: 16035

JET-AIR,LEAK

€ 9.50

16044

16044007
rif: 16044

CLIP, FLOAT VALVE

€ 3.50

16126

161261226
rif: 16126

VALVE,VACUUM

€ 141.50

16187

161871199
rif: 16187

NEEDLE-JET,NAZH

€ 23.50

43028

430281085
rif: 43028

DIAPHRAGM,AIR CUT VAL

€ 17.00
