SWINGARM/ LEFT CRANKCASE COVER

NPS50 ZOOMER 2006 (6) FRANCE CMF KPH

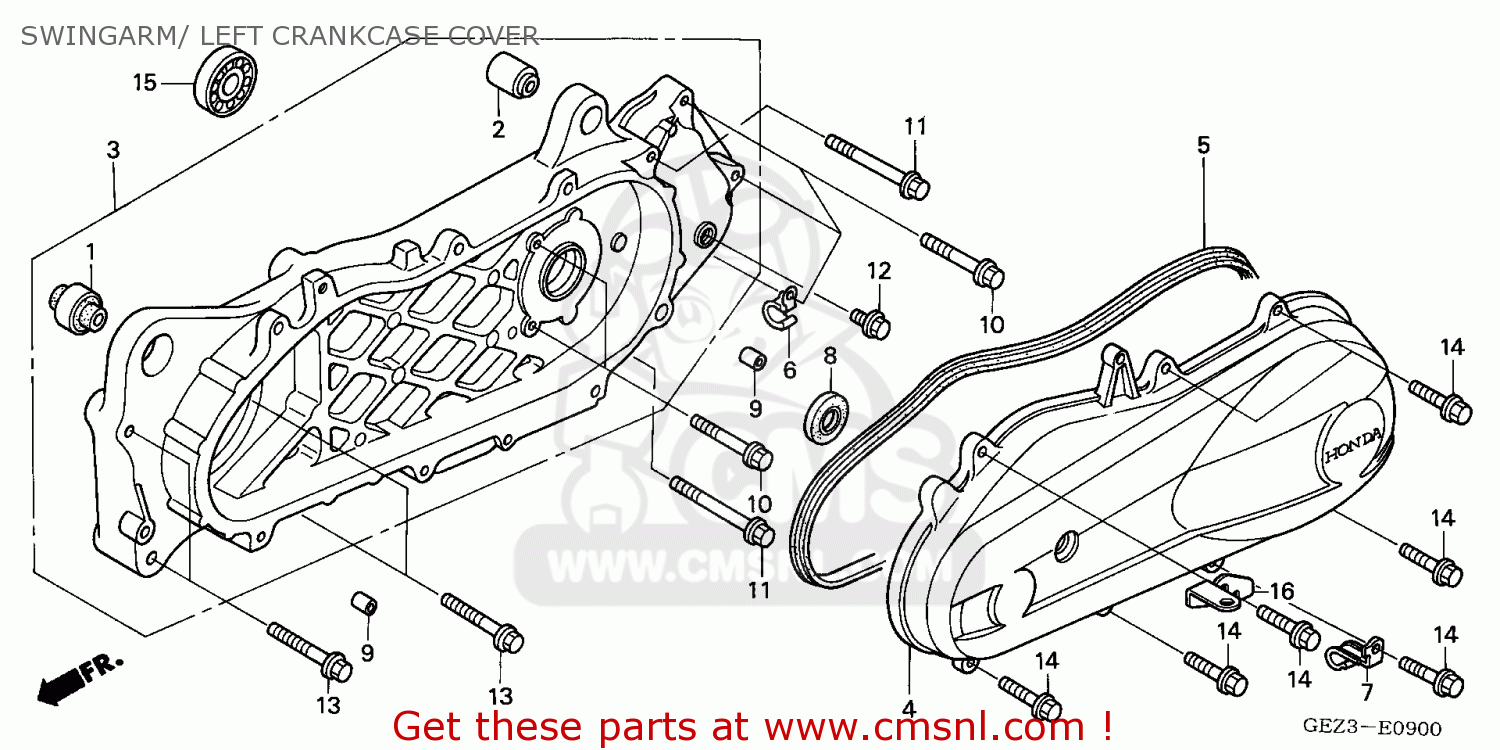

Swingarm/ left crankcase cover diagramma NPS50 ZOOMER 2006 (6) FRANCE CMF KPH

SWINGARM/ LEFT CRANKCASE COVER NPS50 ZOOMER 2006 (6) FRANCE CMF KPH
SWINGARM/ LEFT CRANKCASE COVER NPS50 ZOOMER 2006 (6) FRANCE CMF KPH
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
11102GEE003
rif: 1
RUBBER BUSH,ENGIN
11102GEE003
€ 11.00
2
11203GC7300
rif: 2
BUSH,CUSH.UND.RUB
11203GC7300
€ 6.00
3
11300GEZ010
rif: 3
SWINGARM COMP
11300GEZ010
€ 202.00
4
11341GEZ000
rif: 4
COVER,L SIDE
11341GEZ000
€ 200.00
5
11395GEZ000
rif: 5
GASKET,L COVER (NAS)
11395GEZ000
€ 13.00
7
43452GW0000
rif: 7
CLAMP,BRAKE CABLE
43452GW0000
€ 2.50
8
91204GBB003
rif: 8
OIL SEAL,17X30X5
91204GBB003
€ 4.00
10
957010603200
rif: 10
BOLT,FLANGE,6X32
957010603200
€ 1.50
11
957010605500
rif: 11
BOLT,FLANGE,6X55
957010605500
€ 2.00
12
957010801200
rif: 12
BOLT,FLANGE 8X12
957010801200
€ 1.50
13
958010804500
rif: 13
BOLT,FLANGE 8X45
958010804500
€ 2.00
14
960010602500
rif: 14
BOLT,FLANGE,SH,6X25
960010602500
€ 1.50
15
961006203300
rif: 15
B/BRG RAD N/COM
961006203300
€ 11.50
16
11343GEZ640
rif: 16
STAY,CLAMPER
11343GEZ640
€ 2.50
