SEAT

NPS50 ZOOMER 2006 (6) FRANCE CMF KPH

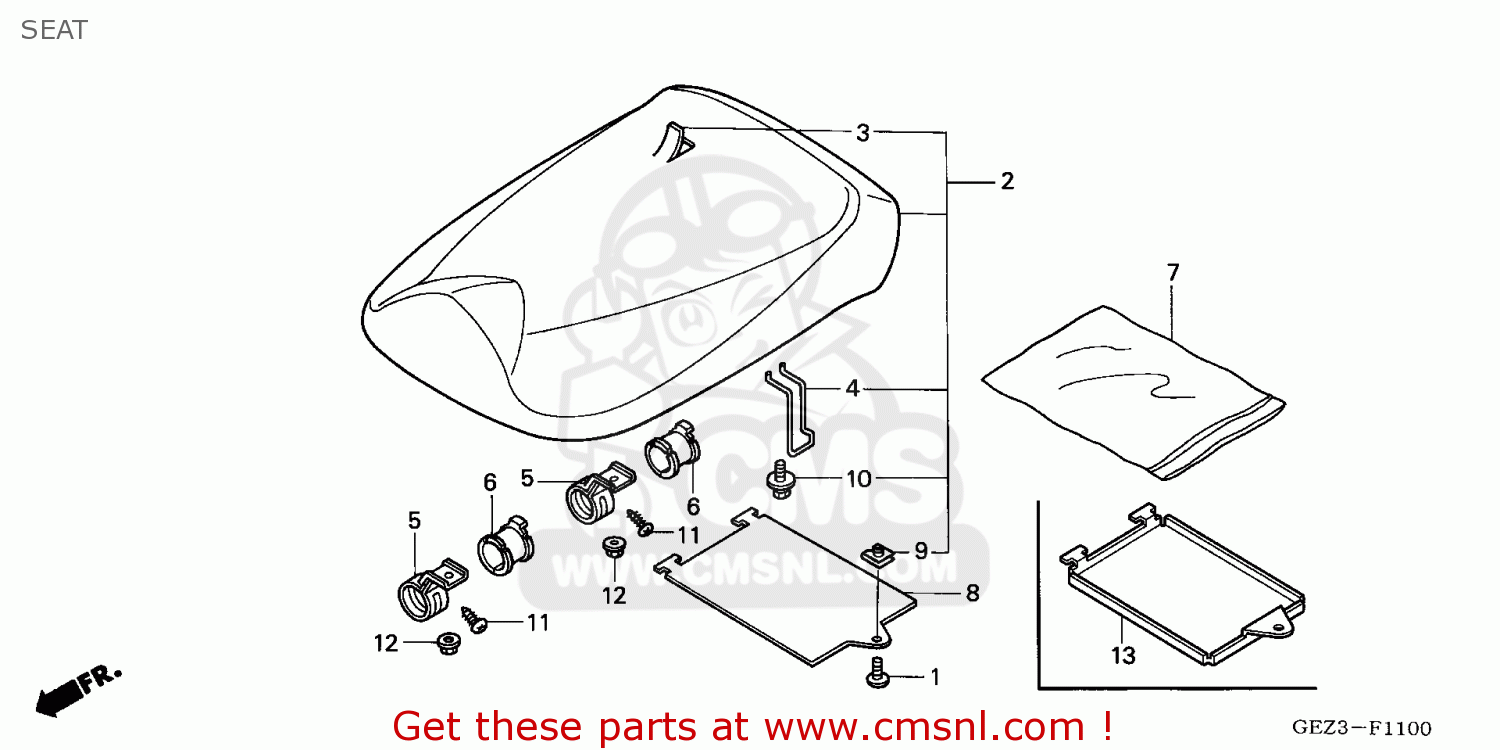

Seat diagramma NPS50 ZOOMER 2006 (6) FRANCE CMF KPH

SEAT NPS50 ZOOMER 2006 (6) FRANCE CMF KPH

i prezzi sono in EUR

rif

parte #

descrizione

quantità

1

64321GN5830
rif: 1

SCREW,FR.COVER

€ 3.50

2

77100GEZ010ZA
rif: 2

SEAT COMP,*TYPE1*

€ 187.50

3

77101GEZ000ZA
rif: 3

COAT TOP A*TYPE1*

€ 73.50

4

77125GEZ010
rif: 4

HOOK,SEAT

€ 4.50

5

77201GEZ000
rif: 5

HINGE,SEAT

€ 5.50

6

77205GEZ010
rif: 6

BUSH,SEAT HINGE

€ 5.50

7

77251GR1000
rif: 7

BAG,SERVICE BOOK

€ 4.50

9

90320747000
rif: 9

NUT,SPRING,6MM

€ 5.00

10

934040601207
rif: 10

BOLT WASH.,6X12

€ 1.00

11

9390334210
rif: 11

SCREW,TAPPING,4X10

€ 1.00

13

80210GEZ640
rif: 13

COVER,O/M

€ 8.50
