WIRE HARNESS

CB750K0 FOUR GENERAL EXPORT

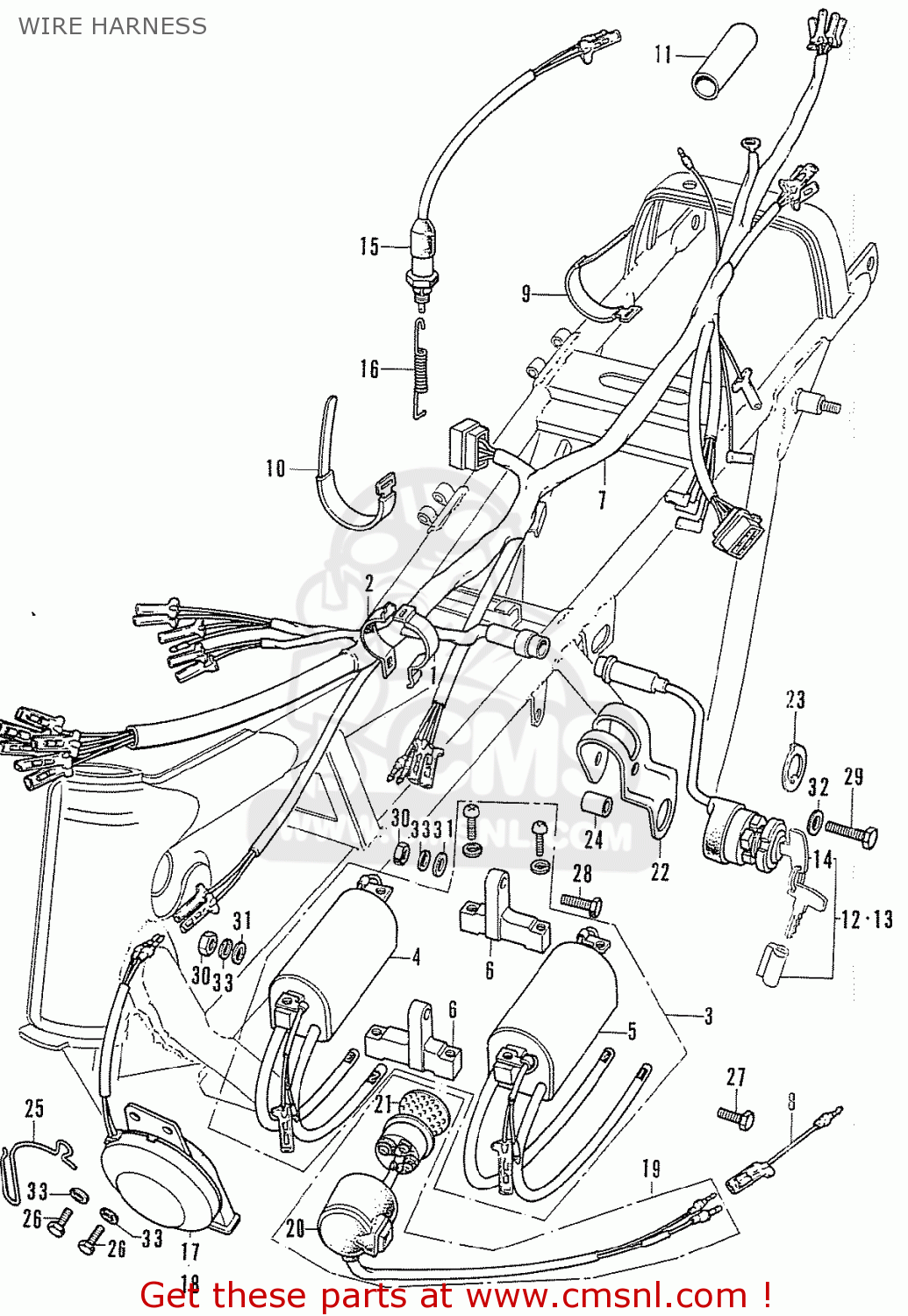

Wire harness diagramma CB750K0 FOUR GENERAL EXPORT

WIRE HARNESS CB750K0 FOUR GENERAL EXPORT
WIRE HARNESS CB750K0 FOUR GENERAL EXPORT
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
30151300000
rif: 1
BAND A
30151300000
€ 7.00
2
30152300000
rif: 2
BAND B
30152300000
€ 7.00
3
30500300013
rif: 3
COIL,IGNITION
30500300013
€ 299.50
4
30501300013
rif: 4
COIL,R.IGNITION
€ 269.00
5
30502300013
rif: 5
COIL,L.IGINITION
€ 269.00
6
30511300000
rif: 6
BRACKET IGNITION
30511300000
€ 22.50
7
32100300040
rif: 7
1003479
WIRE HARNESS
€ 206.50
7
32100300050
rif: 7
1003480
WIRE HARNESS
32100300050
€ 206.50
9
32161268000
rif: 9
BAND A1,WIRE
32161268000
€ 3.50
10
32162286000
rif: 10
BAND B3,WIRE HARN
€ 4.00
12
35010313003
rif: 12
KIT,COMB.SWITCH
€ 118.50
14
35100313003
rif: 14
SWITCH,COMB
€ 59.00
15
35350292003
rif: 15
SWITCH,STOP LAMP
35350292003
€ 21.50
16
35357300000
rif: 16
SPRING STOP
35357300000
€ 4.50
17
38100300013
rif: 17
1003850
HORN
€ 141.50
17
38100300023
rif: 17
1003851
HORN ASSY
38100300023
€ 100.00
22
50375300000B
rif: 22
BRACKET,SWITCH
50375300000B
€ 13.00
23
50376300000
rif: 23
WASHER COMB SW
50376300000
€ 5.00
24
50377300000
rif: 24
COLLAR COMB SW
50377300000
€ 4.00
25
50462300000
rif: 25
1003951
CLAMP,TACH CABLE
50462300000
€ 11.50
26
9200006016
rif: 26
BOLT,HEX., 6X16
9200006016
€ 0.50
27
9200006025
rif: 27
BOLT,HEX 6X25
9200006025
€ 1.00
28
9200006032
rif: 28
BOLT,HEX 6X32
9200006032
€ 1.00
29
92000080400A
rif: 29
BOLT,HEX 8X40
92000080400A
€ 1.50
30
9400106000
rif: 30
NUT,HEX 6MM
9400106000
€ 1.00
31
9410106000
rif: 31
WASHER,PLAIN, 6MM
9410106000
€ 0.50
32
9410108000
rif: 32
WASHER,PLAIN,8MM
9410108000
€ 1.00
33
9411106000
rif: 33
WASHER,SPRING,6MM
9411106000
€ 1.00
