BOLT-WASHER (LOWER CRANKCASE

CB750K0 FOUR GENERAL EXPORT

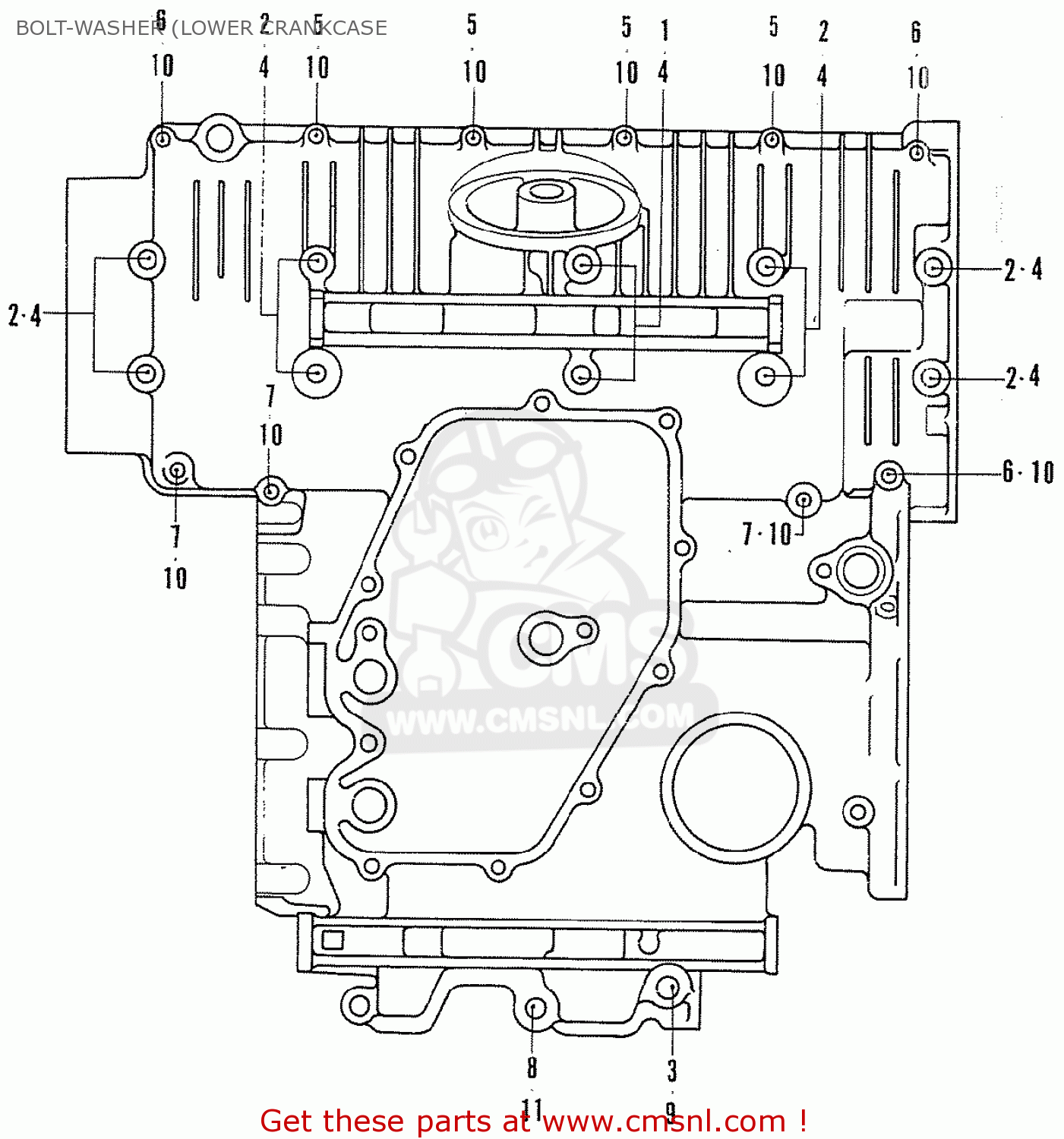

Bolt-washer (lower crankcase diagramma CB750K0 FOUR GENERAL EXPORT

i prezzi sono in EUR

rif

parte #

descrizione

quantità

90041300000
rif: 1

BOLT HEX,8X140

€ 4.50

90042300000
rif: 2

BOLT HEX,8X120

€ 3.50

90403300000
rif: 3

WASHER,10X2.3

€ 6.50

90485035000
rif: 4

WASHER, 14M/M

€ 3.50

9200006040
rif: 5
1064902

BOLT,HEX 6X40

€ 1.00

9570006040
rif: 5
1064903

BOLT,FLANGE 6X40

€ 1.50

9200006050
rif: 6
1064902

BOLT, HEX., 6X50

€ 1.00

9570006050
rif: 6
1064903

BOLT,FLANGE 6X50

€ 1.50

9200006100
rif: 7
1064902

BOLT HEX 6X100

€ 1.50

9570006100
rif: 7
1064903

BOLT,FLANGE 6X100

€ 2.50

94001100000S
rif: 9

NUT,HEX.,10M/M

€ 1.00

9410106000
rif: 10

WASHER,PLAIN, 6MM

€ 0.50

9410108000
rif: 11

WASHER,PLAIN,8MM

€ 1.00
