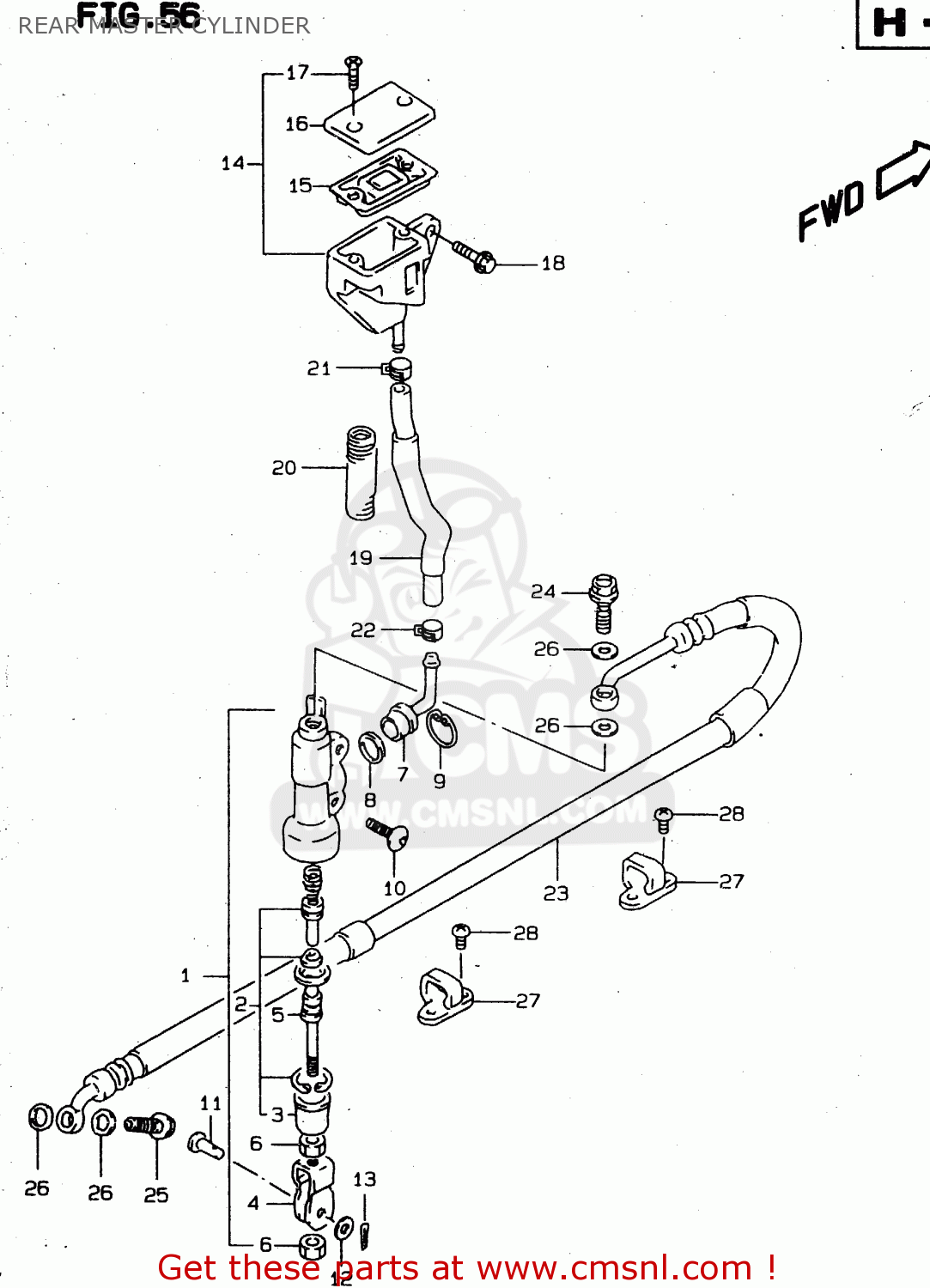

REAR MASTER CYLINDER

ref

pièce #

description

quantité

1

6960014A51
ref: 1

CYLINDER ASSY,RR MASTER

€ 168.50

2

6960034820
ref: 2

PISTON/CUP SET

€ 37.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969227A30
ref: 4

YOKE

€ 11.00

5

6967000B21
ref: 5

ROD,PUSH

€ 22.50

6

6969305A00
ref: 6

NUT

€ 1.50

7

6967200B20
ref: 7

CONNECTOR

€ 4.50

8

6968634200
ref: 8

O RING

€ 2.50

9

6967400B20
ref: 9

CIRCLIP

€ 2.50

10

0913906067
ref: 10

SCREW(6X16)

€ 3.00

11

0920006037
ref: 11

PIN

€ 4.00

12

0832201063
ref: 12

WASHER

€ 1.50

13

0411120158
ref: 13

PIN

€ 1.00

14

6974001D02
ref: 14

TANK ASSY,RR RESERVOIR

€ 52.50

15

5966704700
ref: 15

DIAPHRAGM

€ 6.50

16

5966905D00
ref: 16

CAP

€ 12.00

17

6968904A00
ref: 17

SCREW

€ 1.50

18

0155006123
ref: 18

BOLT

€ 2.00

19

6973004F00
ref: 19

HOSE,RESERVOIR TANK

€ 22.50

20

6973204F00
ref: 20

SHIELD,RSVR TANK HOSE HEAT

€ 6.00

21

0940113417
ref: 21

CLIP

€ 2.00

22

0940112404
ref: 22

CLIP

€ 2.00

23

6948004F00
ref: 23

HOSE,RR BRAKE

€ 96.50

24

0936010041
ref: 24

BOLT UNION

€ 5.50

25

0936010042
ref: 25

BOLT UNION

€ 4.50

26

0916110009
ref: 26

WASHER(10X15X1.5)

€ 1.50

27

6119627C30
ref: 27

GUIDE,RR BRAKE

€ 5.00

28

0214205103
ref: 28

SCREW

€ 1.50

toutes les assemblages
