GEAR SHIFTING

XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

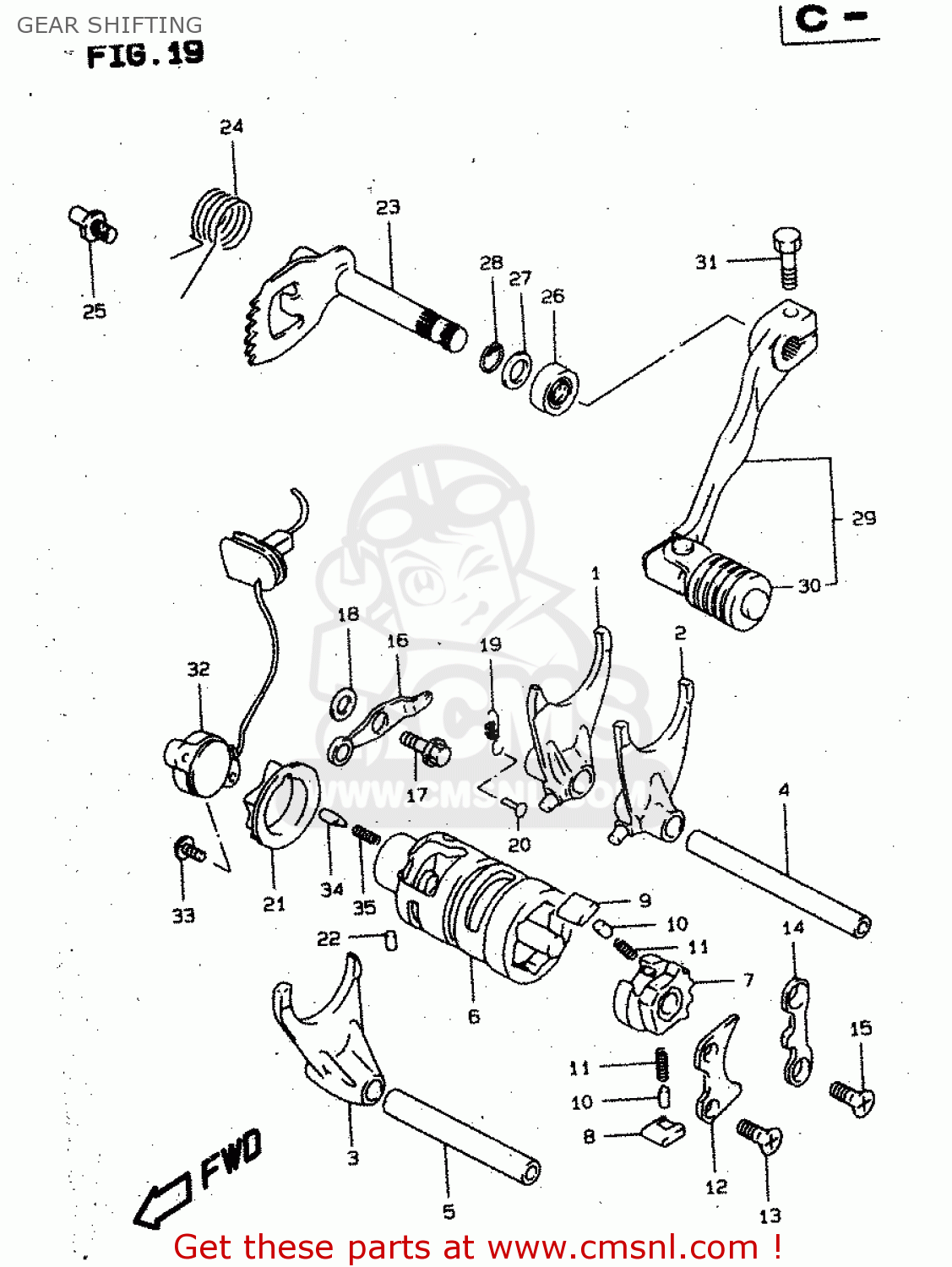

Gear shifting schéma XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

GEAR SHIFTING XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)
GEAR SHIFTING XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)
les prix sont en EUR
ref
pièce #
description
quantité
1
2521137401
ref: 1
FORK,GEAR SHIFT NO.1
2521137401
€ 54.50
2
2522137401
ref: 2
FORK,GEAR SHIFT NO.2
2522137401
€ 54.50
3
2523114A01
ref: 3
FORK,GEAR SHIFT NO.3
2523114A01
€ 51.50
4
2541120A11
ref: 4
L:95
SHAFT,GEAR SHIFT FORK
2541120A11
€ 13.50
5
2542114A02
ref: 5
L:75
SHAFT,GEAR SHIFT FORK
2542114A02
€ 13.50
6
2531037400
ref: 6
CAM,GEAR SHIFT
2531037400
€ 95.50
7
2532231310
ref: 7
<-25322-31302
GEAR,GEAR SHIFT CAM DRIVEN
2532231310
€ 15.00
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
2532334201
€ 5.50
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
2532434201
€ 5.50
10
0926105003
ref: 10
PIN(5X8)
0926105003
€ 1.50
11
0944004003
ref: 11
SPRING
0944004003
€ 1.50
12
2533114A00
ref: 12
LIFTER,GEAR SHAFT PAWL
2533114A00
€ 6.00
13
0212206123
ref: 13
SCREW
0212206123
€ 2.00
14
2534140001
ref: 14
STOPPER,GEAR SHIFT POLE
2534140001
€ 7.00
15
0212206123
ref: 15
SCREW
0212206123
€ 2.00
16
2535037400
ref: 16
STOPPER,GEAR SHIFT CAM
2535037400
€ 8.50
17
0911106054
ref: 17
BOLT(6X14.6)
0911106054
€ 1.50
18
0821106141
ref: 18
WASHER
0821106141
€ 2.50
19
0944308020
ref: 19
SPRING
0944308020
€ 2.00
20
0922304001
ref: 20
RIVET
0922304001
€ 1.50
21
2538137401
ref: 21
PLATE,GEAR SHIFT CAM STOPPER
2538137401
€ 11.50
22
0422104069
ref: 22
PIN
0422104069
€ 1.50
23
2551032E00
ref: 23
SHAFT,GEAR SHIFT
2551032E00
€ 60.00
24
0944426023
ref: 24
SPRING
0944426023
€ 3.00
25
2567101000
ref: 25
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.50
26
0928512002
ref: 26
OIL SEAL
0928512002
€ 5.50
27
0821212201
ref: 27
WASHER
0821212201
€ 1.50
28
0833131126
ref: 28
CIRCLIP,12 MM
0833131126
€ 1.50
29
2560032E10
ref: 29
LEVER ASSY,GEAR SHIFT
2560032E10
€ 184.00
30
2565203D00
ref: 30
RUBBER,GEAR SHIFT PEDAL
2565203D00
€ 3.00
31
0150006203
ref: 31
BOLT
0150006203
€ 1.50
32
3772032E00
ref: 32
BASE ASSY,GEAR SHIFT TERMINAL
3772032E00
€ 56.00
33
0211205163
ref: 33
SCREW
0211205163
€ 1.50
34
0920905011
ref: 34
PIN(5X15.5)
0920905011
€ 1.50
35
0944004010
ref: 35
SPRING
0944004010
€ 1.50
