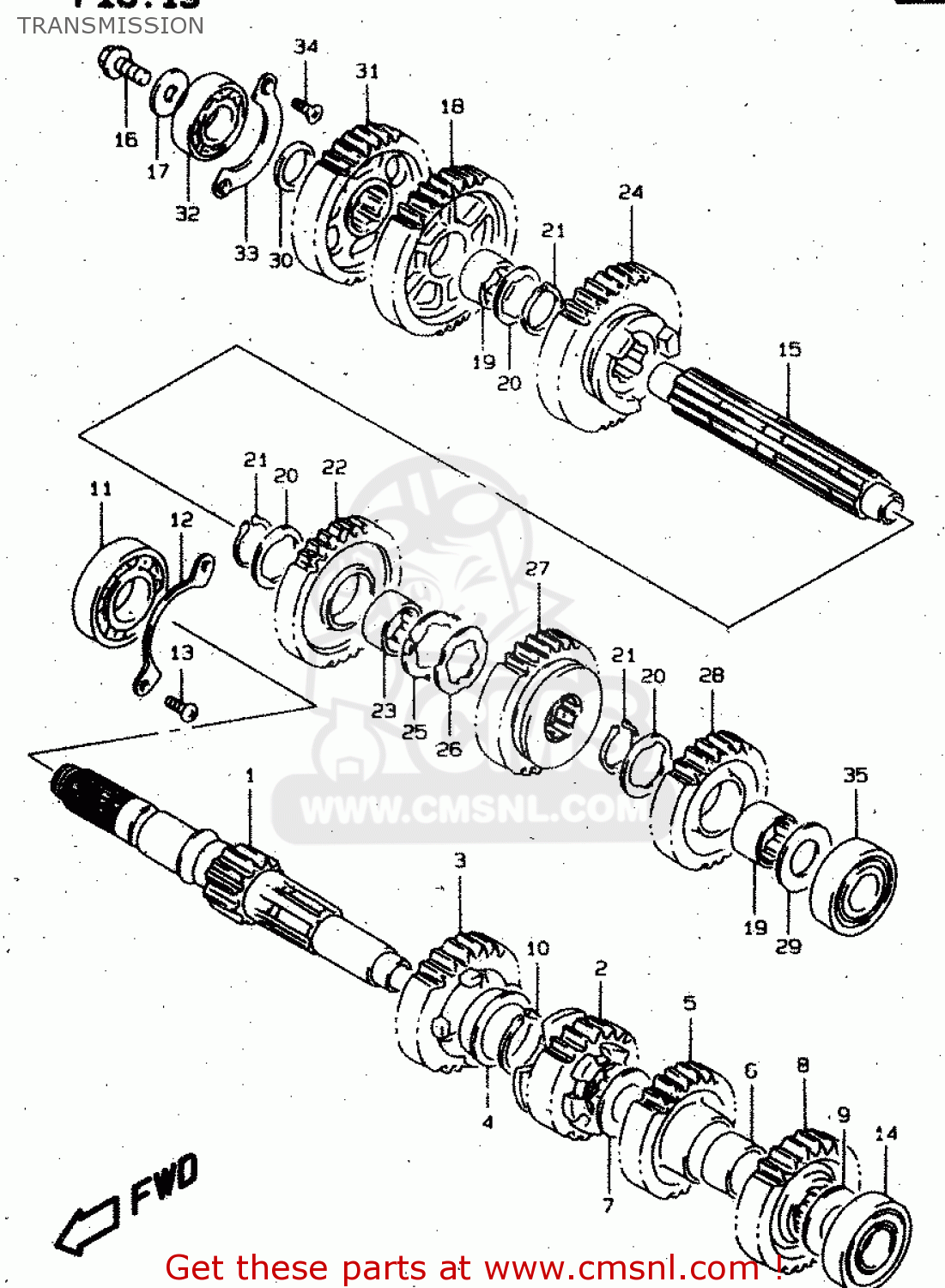

TRANSMISSION

ref

pièce #

description

quantité

1

2412038B10
ref: 1

SHAFT,COUNTER

€ 194.00

2

2422138B10
ref: 2
MODEL T/V

GEAR,SECOND DRIVE

€ 150.00

2

2422138B11
ref: 2
MODEL W/X

GEAR,SECOND DRIVE (NT:17)

€ 150.00

3

2423138B11
ref: 3
<-24231-38B10

GEAR,3RD DRIVE(NT:21)

€ 129.50

4

0930128001
ref: 4

BUSH(28X32X2)

€ 19.50

5

2424138B10
ref: 5
MODEL T/V

GEAR,FOURTH DRIVE

€ 132.00

5

2424138B11
ref: 5
MODEL W/X

GEAR,4TH DRIVE

€ 132.00

6

2424238B10
ref: 6

BUSH,4TH DRIVE GEAR

€ 28.50

7

0821122321
ref: 7
MODEL T/V

WASHER

€ 3.00

7

0918122195
ref: 7
MODEL W/X

SHIM(22X32X1)

€ 4.00

8

2425138B10
ref: 8
MODEL T/V

GEAR,FIFTH DRIVE

€ 119.00

8

2425138B11
ref: 8
MODEL W/X

GEAR,5TH DRIVE

€ 119.00

9

0821120321
ref: 9
MODEL T/V

WASHER,THRUST

€ 3.00

9

0918120223
ref: 9
MODEL W/X

SHIM(20X32X1)

€ 3.00

10

0833131286
ref: 10

CIRCLIP

€ 1.50

11

0926225080
ref: 11

BEARING(25X62X17)

€ 21.50

12

2474138A00
ref: 12

RETAINER,CNTR SHAFT BEARING

€ 4.50

13

0211206123
ref: 13

SCREW

€ 1.50

14

0926220080
ref: 14

BEARING(20X52X15)

€ 21.50

15

2413138B10
ref: 15
MODEL T/V/W

SHAFT,DRIVE

€ 229.00

15

2413138B20
ref: 15
MODEL X

SHAFT,DRIVE

€ 229.00

16

0910310112
ref: 16

BOLT(10X24)

€ 4.00

17

0821110305
ref: 17

WASHER

€ 3.00

18

2431138B00
ref: 18
MODEL T/V/W

GEAR,FIRST DRIVEN

€ 157.00

18

2431138B20
ref: 18
MODEL X

GEAR,1ST DRIVEN(NT:36)

€ 157.00

19

2433224A00
ref: 19

BUSH

€ 19.00

20

0916728001
ref: 20

WASHER,LOCK

€ 3.00

21

0833131286
ref: 21

CIRCLIP

€ 1.50

22

2432138B10
ref: 22
MODEL T/V/W

GEAR,SECOND DRIVEN

€ 172.50

22

2432138B20
ref: 22
MODEL X

GEAR,2ND DRIVEN(NT:31)

€ 172.50

23

2433249000
ref: 23

BUSH,3RD DRIVEN GEAR

€ 14.00

24

2433138B10
ref: 24
MODEL T/V

GEAR,THIRD DRIVEN

€ 169.00

24

2433138B11
ref: 24
MODEL W/X

GEAR,THIRD DRIVEN (NT:28)

€ 169.00

25

0916928001
ref: 25

WASHER

€ 3.00

26

0916728002
ref: 26

WASHER,LOCK

€ 3.00

27

2434138B10
ref: 27
MODEL T/V

GEAR,FOURTH DRIVEN

€ 169.00

27

2434138B11
ref: 27
MODEL W/X

GEAR,FOURTH DRIVEN (NT:25)

€ 169.00

28

2435138B10
ref: 28
MODEL T/V

GEAR,FIFTH DRIVEN

€ 110.50

28

2435138B11
ref: 28
MODEL W/X

GEAR,5TH DRIVEN

€ 110.50

29

0821120382
ref: 29

WASHER

€ 3.00

30

0916022032
ref: 30

WASHER(22X32X3)

€ 4.00

31

2462138B00
ref: 31

GEAR,OVER DRIVING DRIVE(NT:34)

€ 172.50

32

0926222025
ref: 32
MODEL T/V/W

BEARING(22X56X16)

€ 51.00

32

0926222029
ref: 32
MODEL X

BEARING(22X56X16)

€ 42.50

33

2474138401
ref: 33

RETAINER,CNTR SHAFT BEARING

€ 5.50

34

0212206123
ref: 34

SCREW

€ 2.00

35

0926220080
ref: 35

BEARING(20X52X15)

€ 21.50
