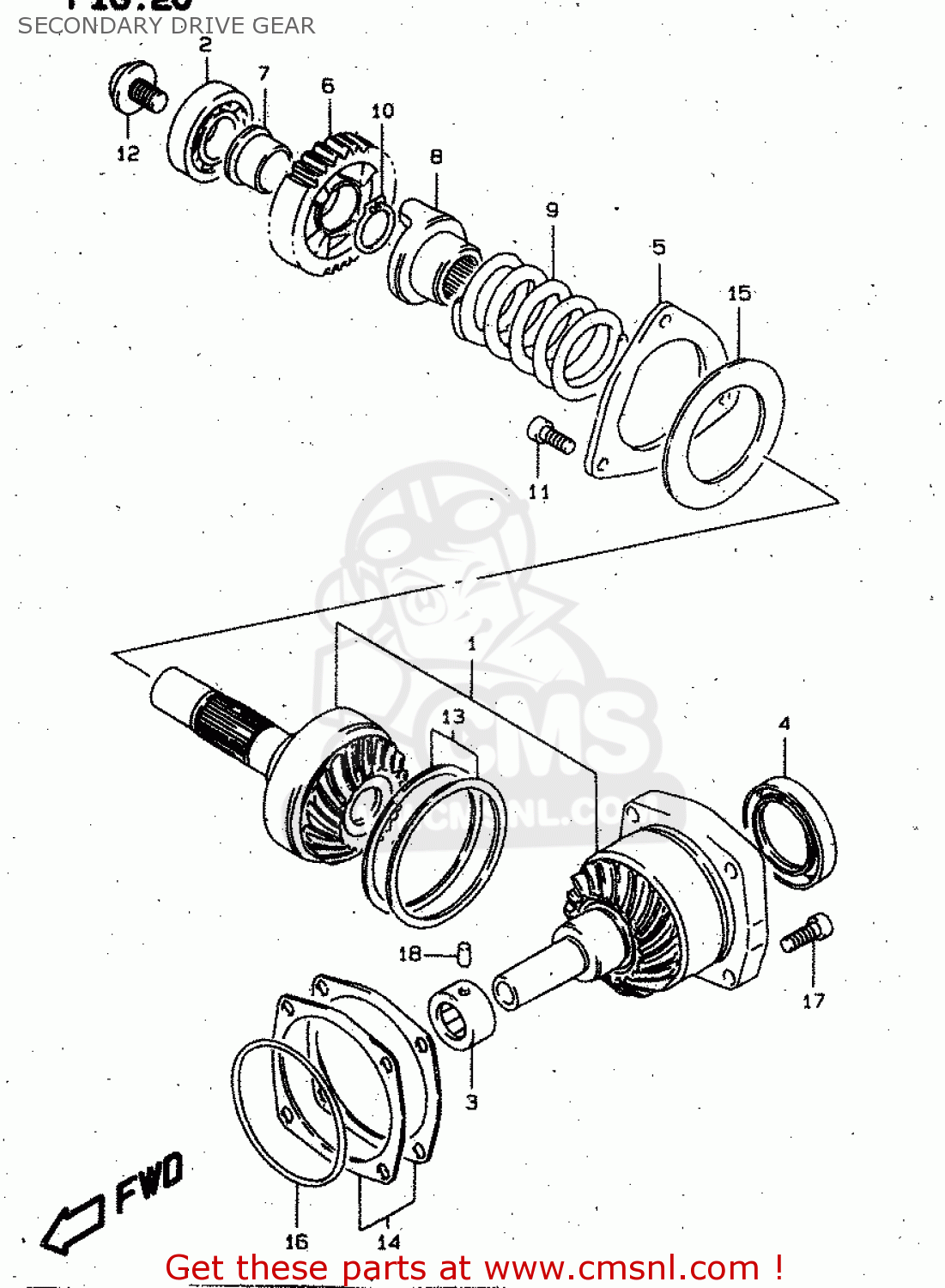

SECONDARY DRIVE GEAR

ref

pièce #

description

quantité

1

2490038830
ref: 1
NT:19/19

GEAR & HOUSING SET,SECONDARY

€ 1,013.50

2

0926225080
ref: 2

BEARING(25X62X17)

€ 21.50

3

0926320038
ref: 3

BEARING(20X34X16)

€ 30.00

4

0928344010
ref: 4

SEAL,OIL(44X68X8)

€ 20.50

5

2493138B00
ref: 5

STOPPER,SEC DRIVE BEARING

€ 39.00

6

2463138B00
ref: 6
NT:29

GEAR,OVER DRIVING DRIVEN

€ 172.50

7

2463238B00
ref: 7
MODEL T/V

BUSHING,ODOMETER DRIVEN GEAR

€ 24.50

7

2463238B01
ref: 7
MODEL W

BUSHING,OD DRIVEN GEAR

€ 24.50

8

2492238B01
ref: 8
<-24922-38B00

DOG,OUTPUT CAM

€ 43.50

9

0944057001
ref: 9

SPRING

€ 49.50

10

0833131266
ref: 10

CIRCLIP

€ 2.50

11

0713008203
ref: 11

BOLT

€ 3.00

12

0910314005
ref: 12

BOLT(14X21)

€ 10.50

13

2493538820
ref: 13
T:1.1/1.15/1.2/1.25/

SHIM SET,SEC DRIVE

€ 99.50

14

2494538810
ref: 14
T:0.3/0.35/0.4/0.5/0

SHIM SET,SEC DRIVEN

€ 34.50

15

0916057001
ref: 15

WASHER(57X90X3)

€ 16.00

16

0928078003
ref: 16

O RING(D:3.7,ID:76.5)

€ 5.00

17

0713008253
ref: 17

BOLT

€ 3.00

18

0422107129
ref: 18

PIN

€ 1.50

toutes les assemblages
