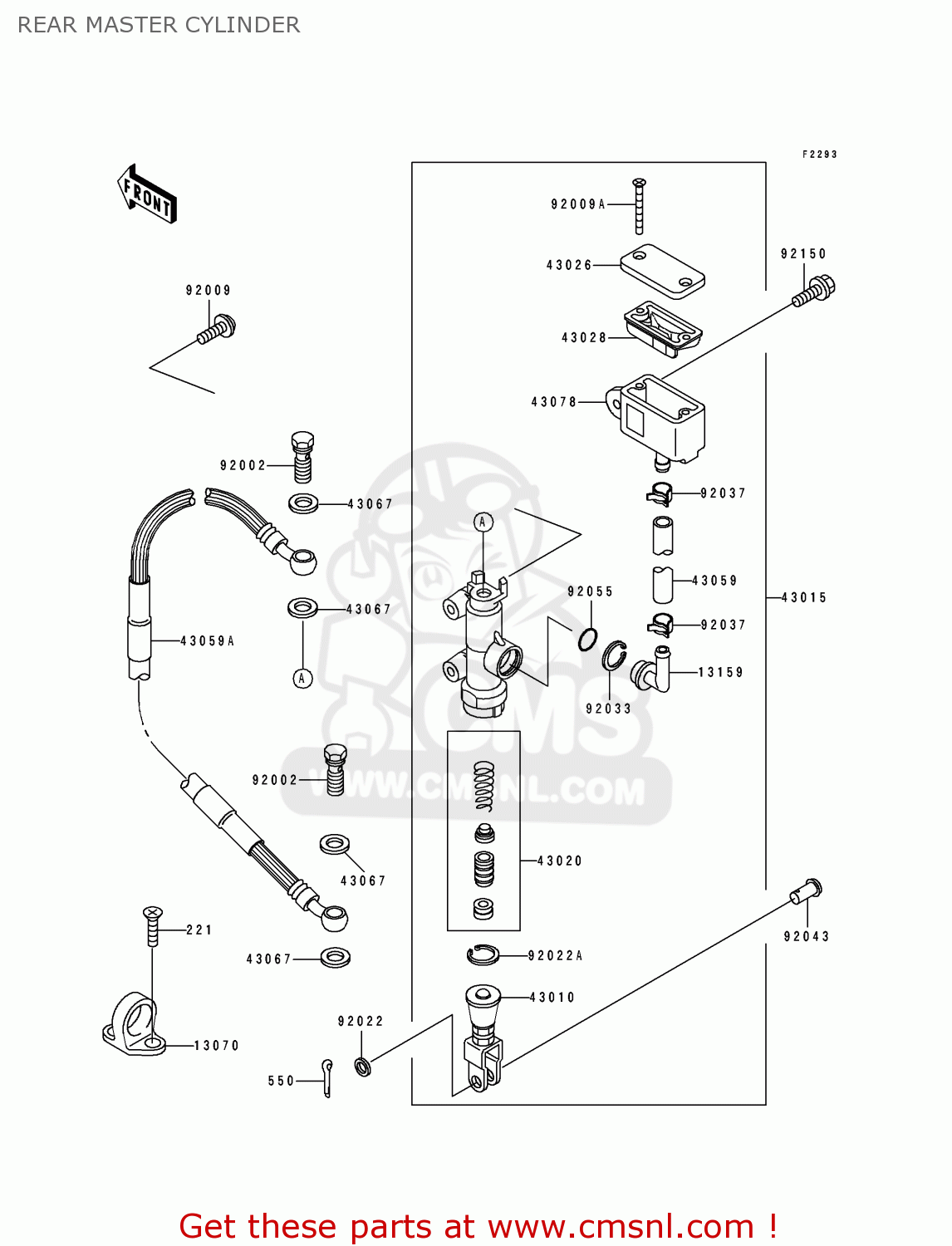

REAR MASTER CYLINDER

ref

pièce #

description

quantité

221

221B0616
ref: 221

SCREW-CNTSNK HD,6X16

€ 0.50

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

13070

130701144
ref: 13070

GUIDE,HOSE

€ 5.00

13159

131591056
ref: 13159

CONNECTOR

€ 9.00

43010

430101068
ref: 43010

ROD-ASSY-BRAKE

€ 35.50

43015

430151515
ref: 43015

CYLINDER-ASSY-MASTER,

€ 271.00

43020

430201094
ref: 43020

PISTON-COMP, BRAKE

€ 44.00

43026

430261075
ref: 43026

CAP-BRAKE

€ 8.50

43028

430281067
ref: 43028

DIAPHRAGM

€ 12.00

43059

430591561
ref: 43059

HOSE-BRAKE

€ 11.00

43059A

430591757
ref: 43059A

HOSE-BRAKE,RR

€ 56.00

43067

43067001
ref: 43067

WASHER,10.5X15X1.5

€ 1.50

43078

430781122
ref: 43078

RESERVOIR

€ 19.50

92002

920021888
ref: 92002

BOLT,OIL,L=23

€ 3.50

92009

920091287
ref: 92009

SCREW,6X14

€ 1.50

92009A

920091596
ref: 92009A

SCREW

€ 2.00

92022

920221028
ref: 92022

WASHER,8.5X13X1

€ 2.50

92022A

920221601
ref: 92022A

WASHER,CIRCRIP

€ 5.00

92033

920331186
ref: 92033

RING-SNAP,20.5MM

€ 3.00

92037

920371710
ref: 92037

CLAMP

€ 6.00

92043

920431039
ref: 92043

PIN

€ 6.00

92055

920551251
ref: 92055

RING-O,MASTER CYLINDE

€ 2.50

92150

921501507
ref: 92150

BOLT

€ 2.50

toutes les assemblages
