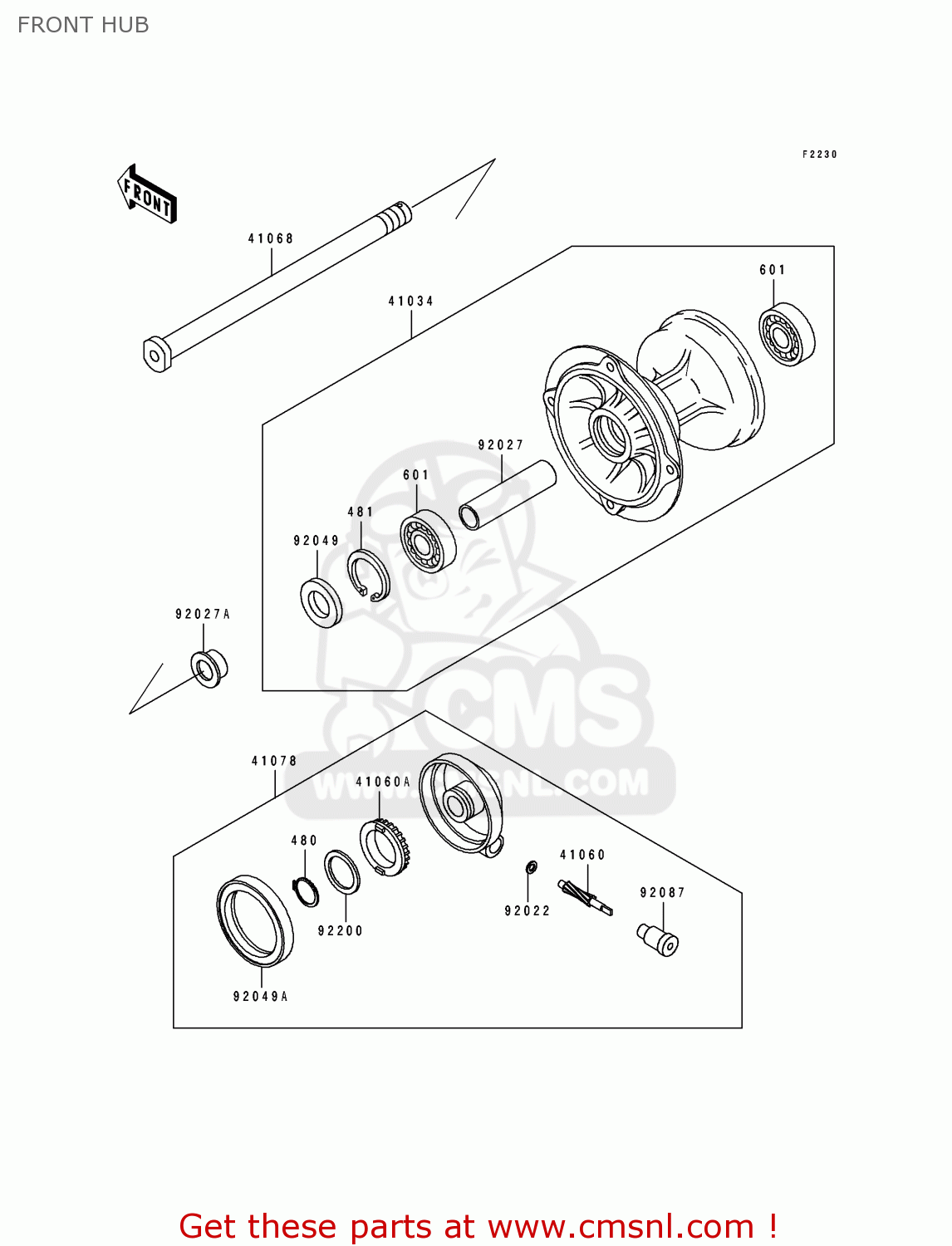

FRONT HUB

KLX650C3 1995 EUROPE FR NL AR FG GR IT SP ST

Front hub schéma KLX650C3 1995 EUROPE FR NL AR FG GR IT SP ST

les prix sont en EUR

ref

pièce #

description

quantité

480

480J2400
ref: 480

CIRCLIP-TYPE-C,24MM

€ 3.00

481

481J3500
ref: 481

CIRCLIP-TYPE-C,35MM

€ 1.00

601

601B6202UG
ref: 601

BEARING BALL

€ 18.00

41034

410341217
ref: 41034

DRUM-ASSY,FRONT BRAKE

€ 451.50

41060

410601145
ref: 41060

GEAR-METER SCREW,8T

€ 15.50

41060A

410601146
ref: 41060A

GEAR-METER SCREW,24T

€ 24.50

41068

410681352
ref: 41068

AXLE,FR

€ 78.00

41078

410781096
ref: 41078

CASE-ASSY-METER GEAR

€ 89.50

92022

920221511
ref: 92022

WASHER,5X9.5X0.8

€ 2.50

92027

920271958
ref: 92027

COLLAR,15.2X19X75

€ 28.00

92027A

920271959
ref: 92027A

COLLAR,L=12

€ 10.00

92049

920491176
ref: 92049

SEAL-OIL,MH20354.5

€ 9.50

92049A

920491399
ref: 92049A

SEAL-OIL,SDD 50 62 7

€ 12.00

92087

920871060
ref: 92087

BUSHING-METER GEAR

€ 11.50

92200

922001137
ref: 92200

WASHER,24X31X0.8

€ 2.50

FRONT HUB

toutes les assemblages
