TOOL

EX500B4 1991 EUROPE FR GR IT NR SP

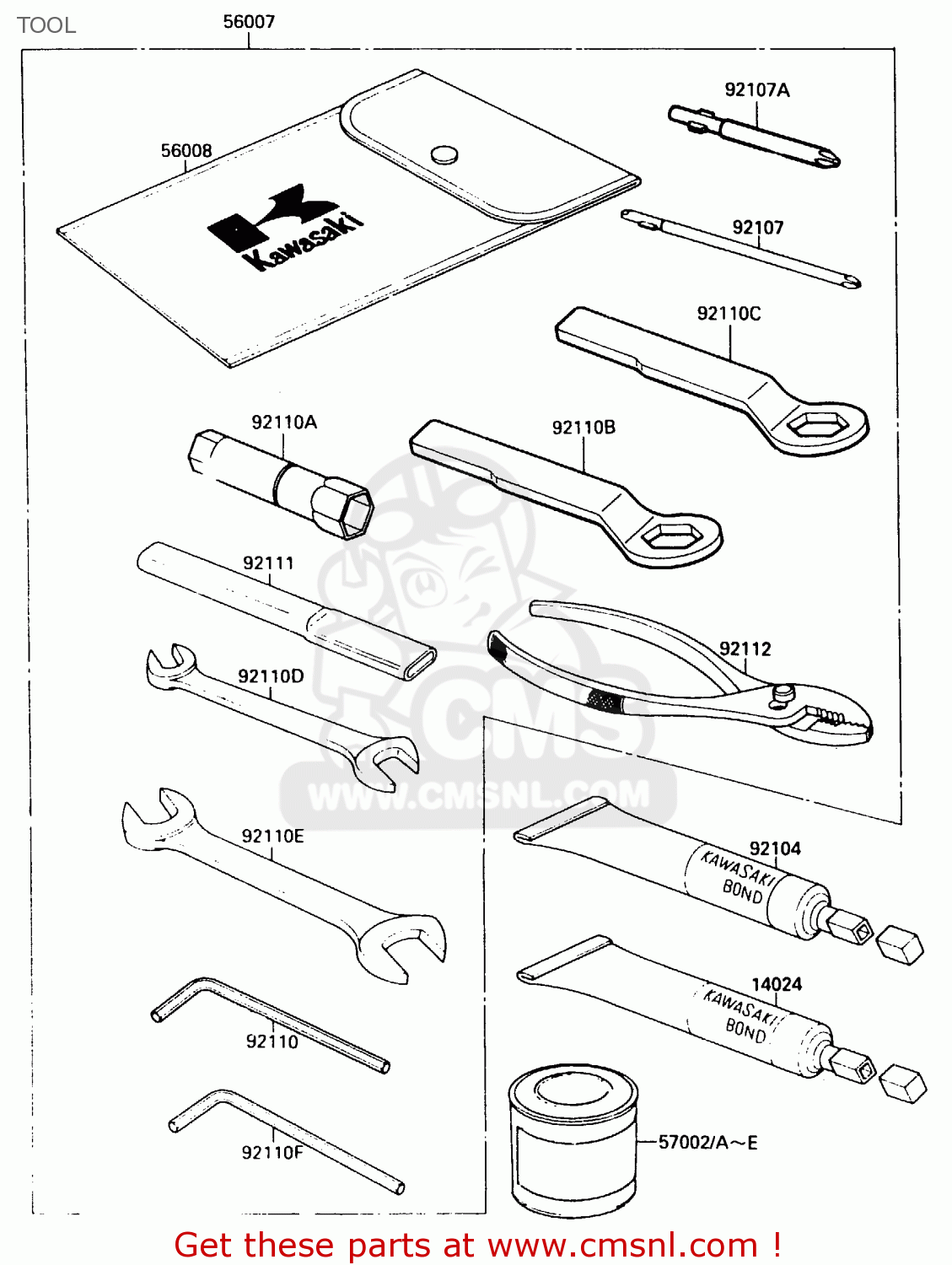

Tool schéma EX500B4 1991 EUROPE FR GR IT NR SP

TOOL EX500B4 1991 EUROPE FR GR IT NR SP
TOOL EX500B4 1991 EUROPE FR GR IT NR SP
les prix sont en EUR
ref
pièce #
description
quantité
14024
56019120
ref: 14024
BOND,#10
56019120
€ 41.00
56007
560071316
ref: 56007
TOOLKIT
€ 90.00
56008
560081019
ref: 56008
BAG,TOOLKIT
€ 11.00
57002A
56019108H8
ref: 57002A
PAINT,1/12L,N.EBONY
56019108H8
€ 18.00
57002B
56019108L1
ref: 57002B
EU, FR, GR, IT, NR,
PAINT,1/12L,C.C.RED
€ 18.00
57002C
56019108M4
ref: 57002C
EU, FR, GR, IT, NR,
PAINT,1/12L,L.P.BLUE
56019108M4
€ 18.00
57002D
56019108R1
ref: 57002D
PAINT,1/12L,P.A.WHITE
€ 18.00
57002E
56019108T8
ref: 57002E
PAINT,1/12L,P.G.GRAY
€ 18.50
92104
92104002
ref: 92104
LIQUID GASKET
€ 69.50
92107
92107005
ref: 92107
SCREW DRIVER-#3 PHLIP
€ 6.50
92107A
921071053
ref: 92107A
TOOL DRIVER#2PHILLIPS
€ 6.00
92110
921101015
ref: 92110
WRENCH,ALLEN
€ 7.00
92110A
921101112
ref: 92110A
TOOL-WRENCH,BOX,18MM
921101112
€ 12.50
92110B
921101150
ref: 92110B
TOOL-WRENCH,BOX END,2
921101150
€ 13.50
92110C
921101151
ref: 92110C
TOOL-WRENCH,BOX END,1
921101151
€ 13.50
92110D
921101152
ref: 92110D
TOOL-WRENCH,OPEN END,
921101152
€ 13.00
92110E
921101153
ref: 92110E
TOOL-WRENCH,OPEN END,
921101153
€ 11.50
92110F
92127003
ref: 92110F
TOOL-WRENCH,ALLEN,6MM
92127003
€ 7.00
92111
921111051
ref: 92111
TOOL-BAR
€ 7.50
92112
92112003
ref: 92112
PLIERS,150MM
92112003
€ 17.00
