CHANGE DRUM/SHIFT FORK

EX500B4 1991 EUROPE FR GR IT NR SP

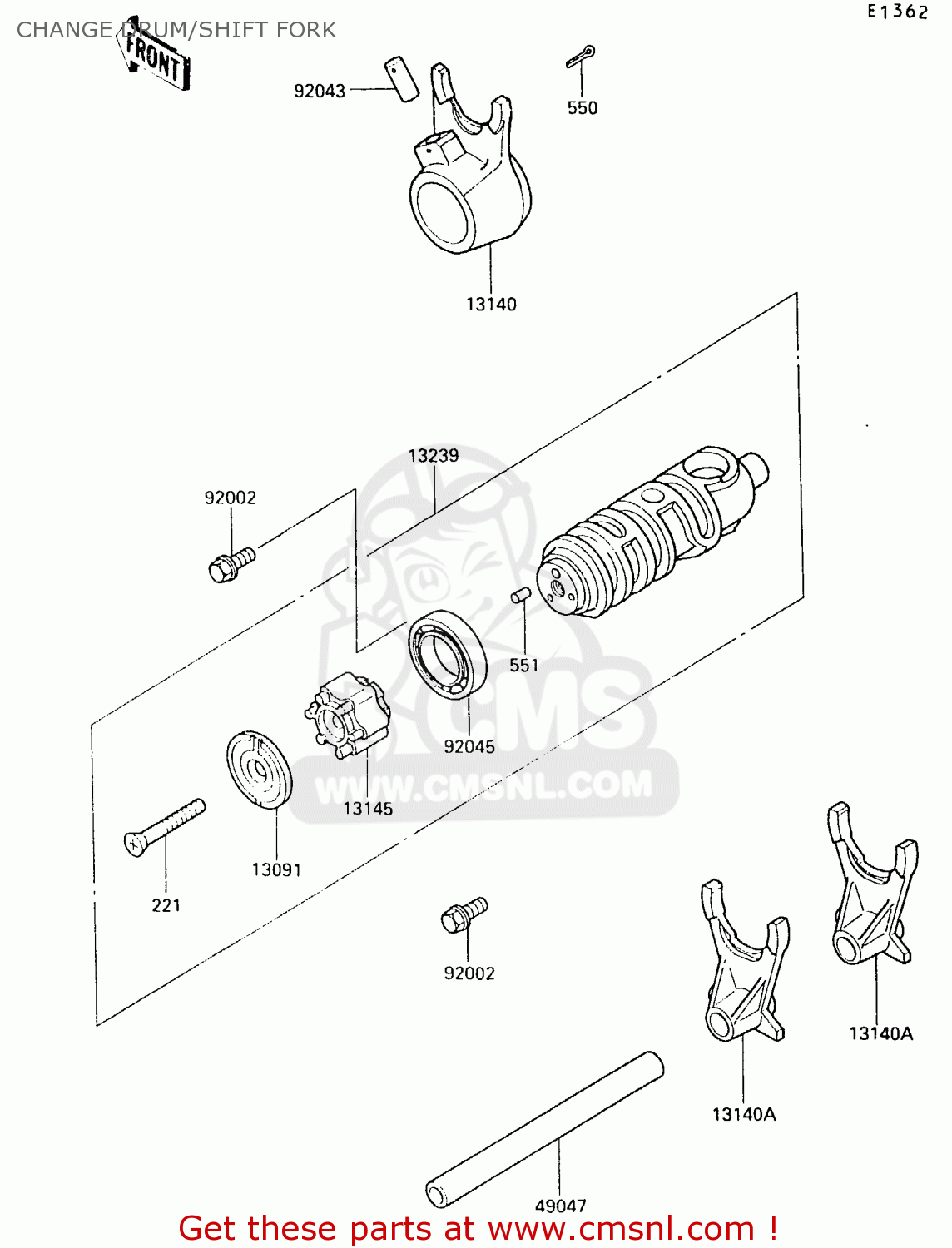

Change drum/shift fork schéma EX500B4 1991 EUROPE FR GR IT NR SP

CHANGE DRUM/SHIFT FORK EX500B4 1991 EUROPE FR GR IT NR SP
CHANGE DRUM/SHIFT FORK EX500B4 1991 EUROPE FR GR IT NR SP
les prix sont en EUR
ref
pièce #
description
quantité
13091
130911351
ref: 13091
HOLDER,CHANGE DRUM
130911351
€ 17.00
13140
131401016
ref: 13140
FORK-SHIFT,DRIVE
131401016
€ 70.50
13140A
131401062
ref: 13140A
FORK-SHIFT,OUTPUT
131401062
€ 70.50
13145
131451056
ref: 13145
CAM-CHANGE DRUM
131451056
€ 39.50
13239
132391118
ref: 13239
DRUM-ASSY-CHANGE
132391118
€ 163.50
49047
490471061
ref: 49047
ROD-SHIFT
490471061
€ 14.50
92002
920021572
ref: 92002
BOLT,6X12
€ 2.00
92043
92042021
ref: 92043
PIN,DOWEL,8X18
92042021
€ 6.50
92045
92045036
ref: 92045
BEARING-BALL,#6905
92045036
€ 27.00
221
221B0645
ref: 221
SCREW-CSK-CROS,6X45
221B0645
€ 2.00
550
550D3020
ref: 550
PIN-COTTER,3.0X20
550D3020
€ 2.00
551
551A0408
ref: 551
PIN-DOWEL,4X8
551A0408
€ 0.50
