SEAT

XL600R 1984 (E) USA

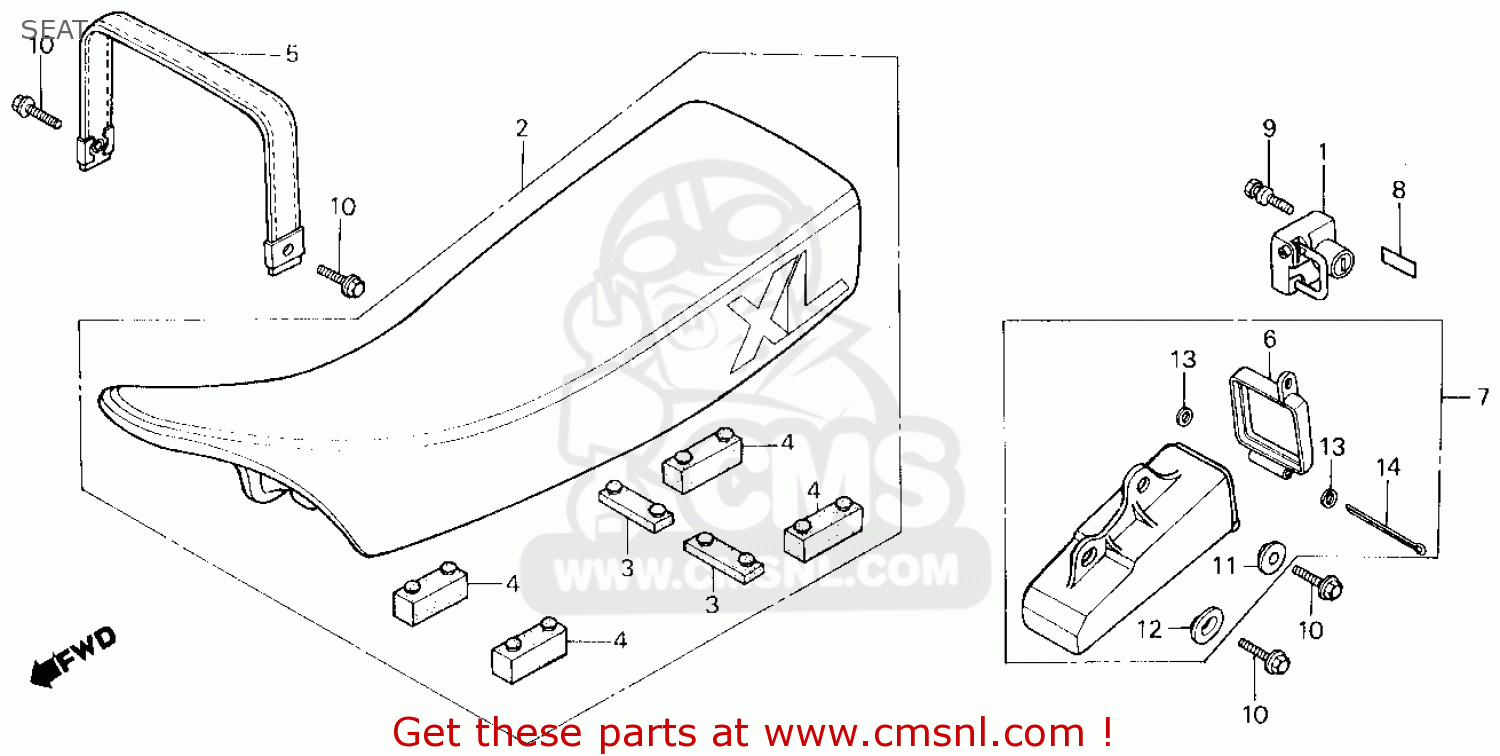

Seat schéma XL600R 1984 (E) USA

SEAT XL600R 1984 (E) USA
SEAT XL600R 1984 (E) USA
les prix sont en EUR
ref
pièce #
description
quantité
1
50710MG2003
ref: 1
HOLDER,HELMET
50710MG2003
€ 83.50
2
77200MG2870
ref: 2
SEAT ASSY,DOUBLE
€ 535.00
2
77200ML6P00ZA
ref: 2
SEAT ASSY,D*PB5L*
€ 535.00
2
77200ML6670ZA
ref: 2
SEAT,DOUBL*PB-5L*
€ 535.00
3
77204312000
ref: 3
RUBBER,SEAT SET
77204312000
€ 7.50
4
77205MG2000
ref: 4
RUBB,A.SEAT SETTI
77205MG2000
€ 4.50
5
77210MG2670
ref: 5
BELT COMP.,SEAT
€ 27.50
6
83504MG2000
ref: 6
CAP,TOOL BOX
83504MG2000
€ 12.00
7
83510MG2000
ref: 7
BOX ASSY.,TOOL
83510MG2000
€ 36.50
8
87511323670
ref: 8
LABEL,HELMET HOLD
87511323670
€ 3.00
9
90107195860
ref: 9
BOLT,B,SPECIAL
90107195860
€ 5.50
9
90107428000
ref: 9
BOLT B,SPL,6MM
90107428000
€ 5.50
10
90172MG3000
ref: 10
BOLT,FLANGE,6X16
90172MG3000
€ 1.50
11
90512300000
ref: 11
WASHER,6X20
90512300000
€ 2.50
12
90513323000
ref: 12
WASHER,6X9
90513323000
€ 2.50
13
9410103000
ref: 13
WASHER 3MM
9410103000
€ 0.50
14
9420130500
ref: 14
PIN COTTER 3.0MM
9420130500
€ 0.50
