EXHAUST MUFFLER

NTV650 REVERE 1989 (K) EUROPEAN DIRECT SALES

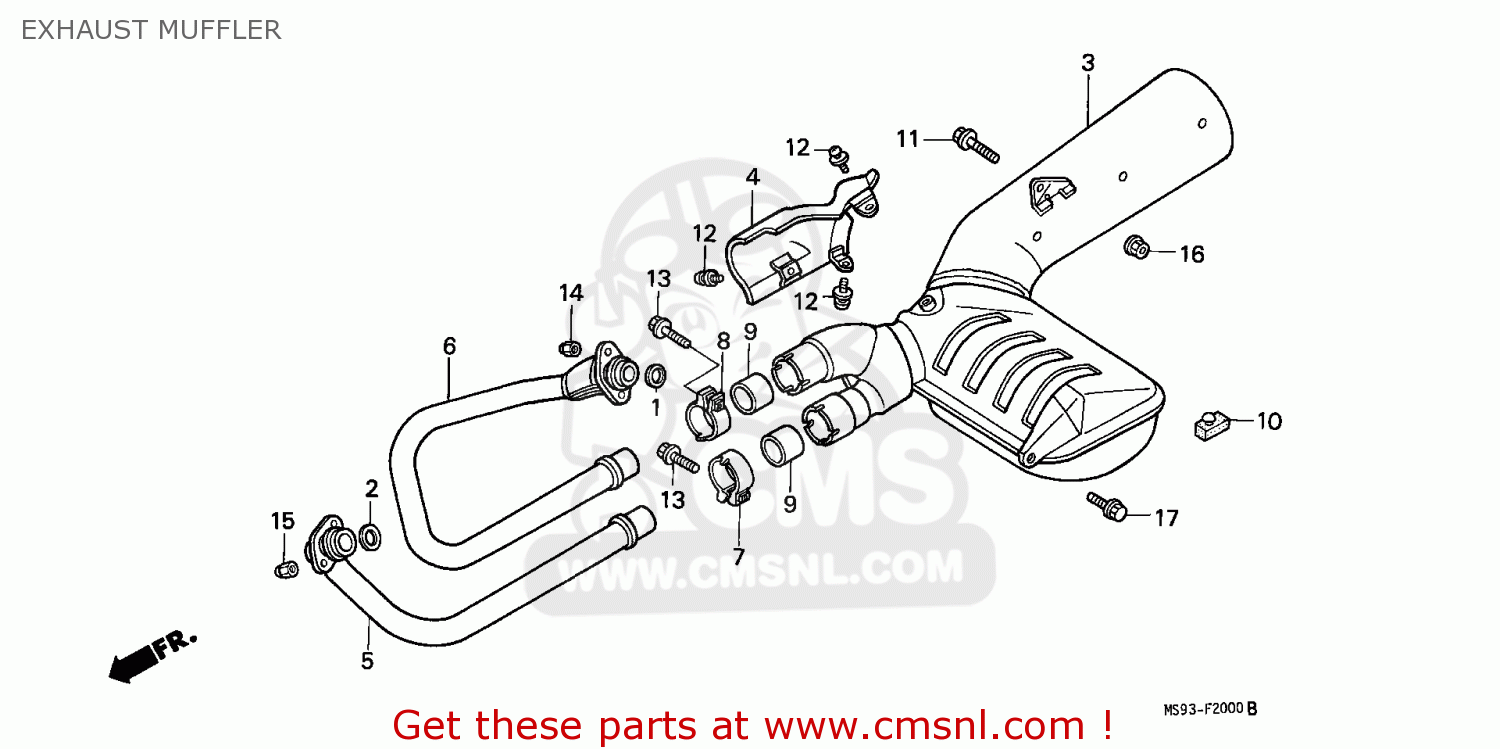

Exhaust muffler schéma NTV650 REVERE 1989 (K) EUROPEAN DIRECT SALES

les prix sont en EUR

ref

pièce #

description

quantité

18291MM5860
ref: 1

GASKET,EX.PIPE (NAS)

€ 5.00

18291MN4920
ref: 2

GASKET,EX.PIPE (NAS)

€ 5.00

18300MS9751
ref: 3

CHAMBER COMP.,EX.

€ 629.00

18315MS9750
ref: 4

COVER,CHAMBER

€ 65.00

18320MS9003
ref: 5

PIPE,FR.EX.

€ 251.50

18370MS9003
ref: 6

PIPE,RR.EX.

€ 286.50

18373MG7701
ref: 7

BAND,R MUFFLER

€ 24.00

18374MG7701
ref: 8

BAND,L MUFFLER

€ 23.00

18392MK4000
ref: 9

PACKING,MUFFLER (NAS)

€ 13.00

50524MG9000
ref: 10

RUB,STAND STOPPER

€ 5.50

90106MB3000
ref: 11

BOLT,SPL,FLG,8X30

€ 5.00

90110HA0000
ref: 12

SCREW,WASH.6X10

€ 3.50

90161ML7000
ref: 13

BOLT,FLANGE,8X35

€ 3.50

90208438000
ref: 14

NUT,FLA.CAP 8MM

€ 4.00

90208438000
ref: 15

NUT,FLA.CAP 8MM

€ 4.00

90128MS9750
ref: 17

BOLT,SPECIAL SOCK

€ 2.00

EXHAUST MUFFLER

toutes les assemblages
