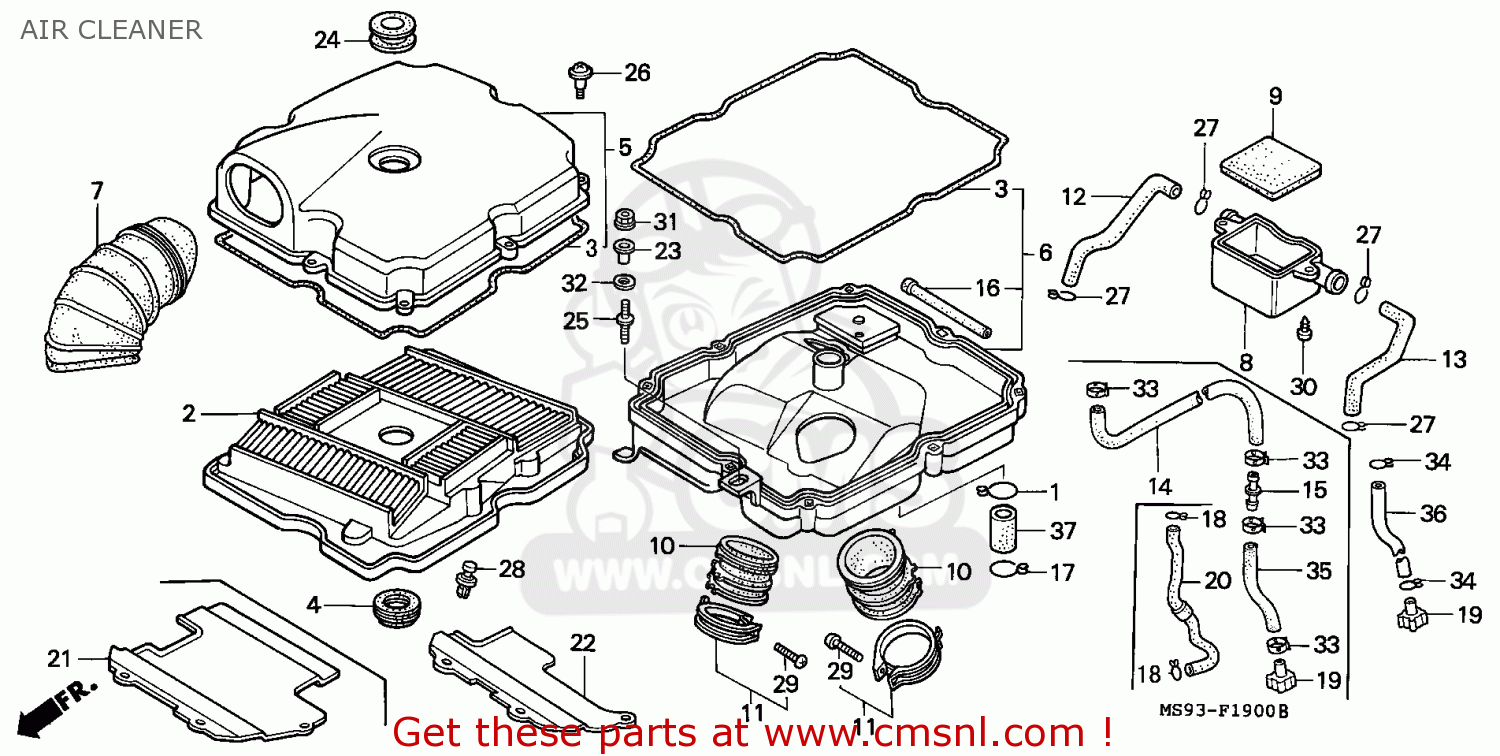

AIR CLEANER

ref

pièce #

description

quantité

1

15772GB5670
ref: 1

CLIP,DRAIN TUBE

€ 3.00

2

17210MN8000
ref: 2

ELEMENT COMP,AIR/

€ 69.50

3

17212MN8000
ref: 3

SEAL AIR/C COVER

€ 6.00

4

17213MN8000
ref: 4

SEAL,AIR CLEANER

€ 4.50

5

17220MN8000
ref: 5

COVER,AIR/C CASE

€ 48.50

6

17230MN8000
ref: 6

CASE COMP.,AIR/C

€ 97.00

7

17240MN8670
ref: 7

DUCT,AIR CLEANER

€ 29.00

8

17251MN8000
ref: 8

COVER,SUB AIR CLE

€ 14.00

9

17252MN8000
ref: 9

FILTER,SUB AIR CL

€ 2.50

10

17253MN8000
ref: 10

TUBE,AIR/C.CONN

€ 12.50

11

17258MN8000
ref: 11

BAND A,CONNECTING

€ 6.00

12

17256MN8000
ref: 12

TUBE,SUB AIR CLEA

€ 6.00

13

17257MN8000
ref: 13

TUBE,SUB AIR CLEA

€ 6.00

14

17335MS9750
ref: 14

TUBE,BREATHER

€ 7.50

15

17359419670
ref: 15

JOINT,TUBE

€ 3.00

16

17364MN8000
ref: 16

TUBE B,BREATHER

€ 4.50

17

17366MJ0000
ref: 17

CLIP B,TUBE

€ 2.00

19

17370419700
ref: 19

PLUG,BRTHR TUBE

€ 3.00

21

19125MS9750
ref: 21

PLATE,CARBURETOR

€ 21.50

23

33712GC2000
ref: 23

COLLAR A,TAIL

€ 2.50

24

80115KS5000
ref: 24

RUBBER,NO BRKT MT

€ 3.50

25

90129MN8000
ref: 25

BOLT,SPECIAL,6MM

€ 5.00

26

90141KT8000
ref: 26

SCREW,PAN,5X19

€ 5.50

27

90643MK3781
ref: 27

CLIP B16,TUBE

€ 1.50

28

90657SB0003
ref: 28

CLIP, SPLASH SHIELD

€ 3.50

29

93500040250G
ref: 29

SCREW,PAN,4X25

€ 1.00

30

9390325380
ref: 30

SCREW TAPP 5X16

€ 1.00

31

9405005000
ref: 31

NUT,FLANGE,5MM

€ 1.00

32

9410305000
ref: 32

WASHER,PLAIN,5MM

€ 0.50

33

950024120008
ref: 33

CLAMP D 12.0 TUBE

€ 2.00

35

950032300731
ref: 35

TUBE,V,8X12X70

€ 2.00

37

950051405520
ref: 37

TUBE,14X55

€ 4.50
